Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Snap Clips

allG offers Snap Clip Conductor Supports that provide an easy attachment of conductors to the flanges of structural shapes. See item descriptions for ranges of flange and conductor sizes.

See Also

Image Item Description Weight Price Unit Qty

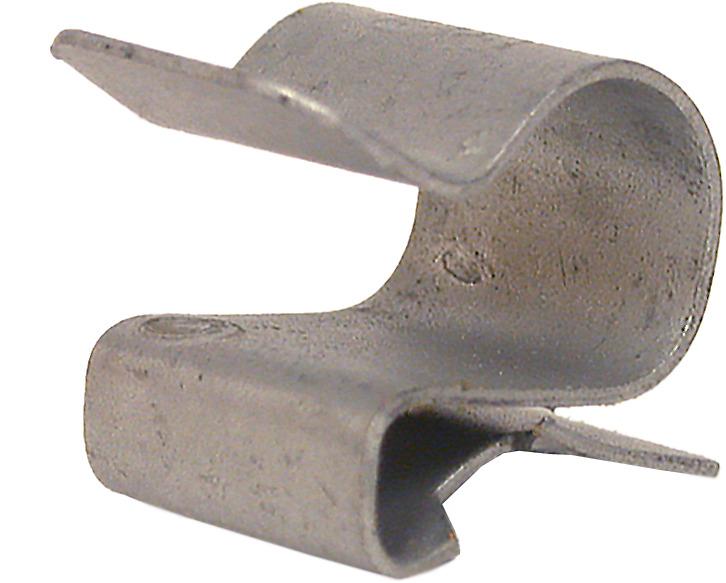

Item #2480-SC2C
2480-SC2C
Item #2480-SC2C 		Caddy Snap Clip; Flange conductor support; Fits flanges 1/16" thru 3/16" thick & conductors 0.375 thru 0.437 OD 0.01 lbs. $1.30* EA
Item #2480-SC4D
2480-SC4D
Item #2480-SC4D 		Caddy Snap Clip; Flange conductor support; Fits flanges 3/16" thru 9/32" thick & conductors 0.468 thru 0.562 OD 0.01 lbs. $1.40* EA
Item #2480-SC8D
2480-SC8D
Item #2480-SC8D 		Caddy Snap Clip; Flange conductor support; Fits flanges 5/16" thru 1/2" thick & conductors 0.472 thru 0.551 OD 0 lbs. $1.35* EA

* Pricing subject to change on this item

**Product received may vary from photo
