Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Air Terminal Bases - Class II ...  >  Standing Seam Mount Bases

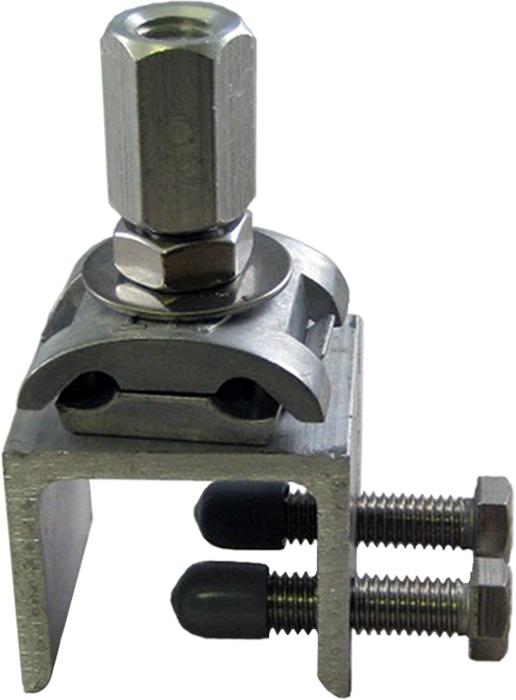

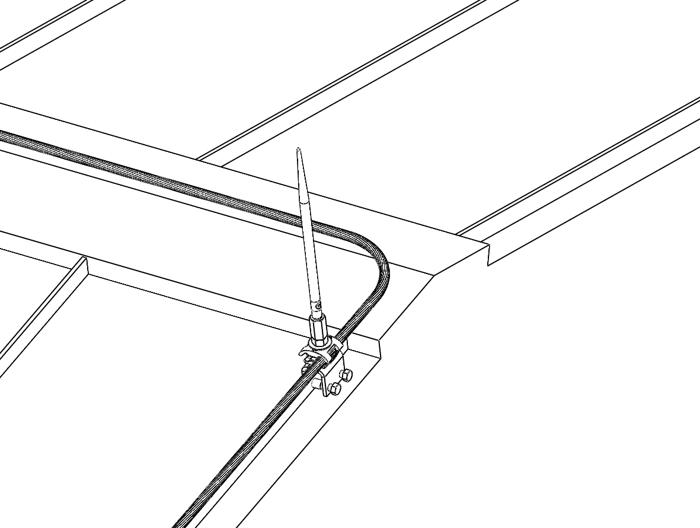

allG offers Standing Seam Mount Bases that can be rotated to route conductor with the seam or against the seam. The copper bases use a stainless steel mount bracket which allows for compatibility with all roof types. The aluminum bases use an aluminum mount bracket. Also available in tinned upon request.

Related Product Info

See Also

Image Item Description Weight Price Unit Qty
Item #C852-38
C852-38
Item #C852-38 		Standing Seam Base; 3/8"; Copper/bronze; Fits conductor sizes 0.375 to 0.500; UL Listed 0 lbs. $35.00* EA
Item #C852-12
C852-12
Item #C852-12 		Standing Seam Base; 1/2"; Copper/bronze; Fits conductor sizes 0.375 to 0.500; UL Listed 0 lbs. $35.00* EA
Item #852-38
852-38

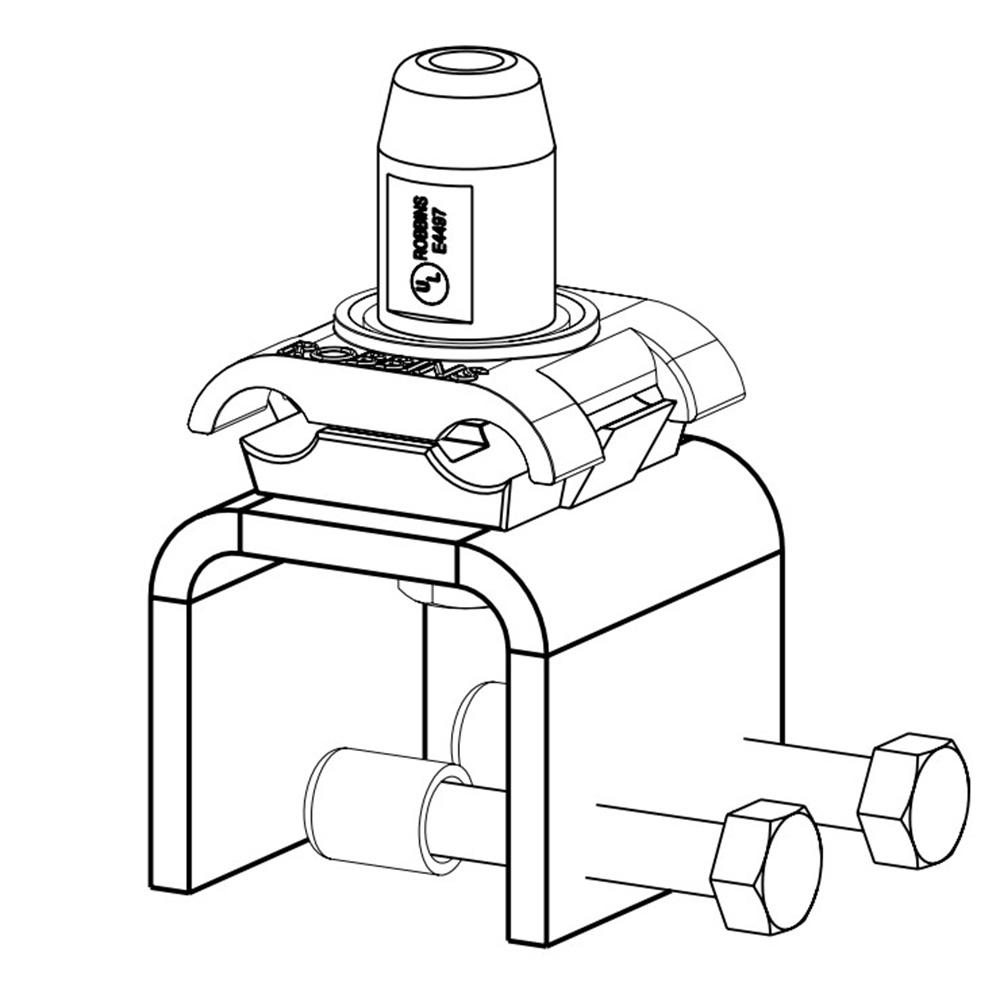

Item #852-38 		Standing Seam Base; 3/8"; Stainless steel/bronze; Fits conductor sizes 0.375 to 0.500; UL Listed 1.02 lbs. $32.00* EA
Item #852-12
852-12
Item #852-12 		Standing Seam Base; 1/2"; Stainless steel/bronze; Fits conductor sizes 0.375 to 0.500; UL Listed 1 lbs. $32.00* EA
Item #852-58
852-58
Item #852-58 		Standing Seam Base; 5/8"; Stainless steel/bronze; Fits conductor sizes 0.375 to 0.500; UL Listed 0.98 lbs. $34.00* EA
Item #852-2S-38
852-2S-38
Item #852-2S-38
Standing Seam Base; 3/8"; Stainless steel/ bronze; Fits conductor sizes 0.375 to 0.500; Base has bolts on both sides for centering; UL Listed and fits... (see more)
 1.20 lbs. $34.00* EA
Item #852-2S-12
852-2S-12
Item #852-2S-12
Standing Seam Base; 1/2"; Stainless steel/ bronze; Fits conductor sizes 0.375 to 0.500; Base has bolts on both sides for centering and fits up to 1.5"... (see more)
 0 lbs. $34.00* EA
Item #853-38
853-38
Item #853-38 		Standing Seam Base; 3/8"; cast bronze with swivel; Fits conductor sizes 0.375 to 0.500; UL Listed 1.13 lbs. $32.00* EA
Item #853-12
853-12
Item #853-12 		Standing Seam Base; 1/2"; cast bronze with swivel; Fits conductor sizes 0.375 to 0.500; UL Listed 1.13 lbs. $32.00* EA
Item #A852-12
A852-12

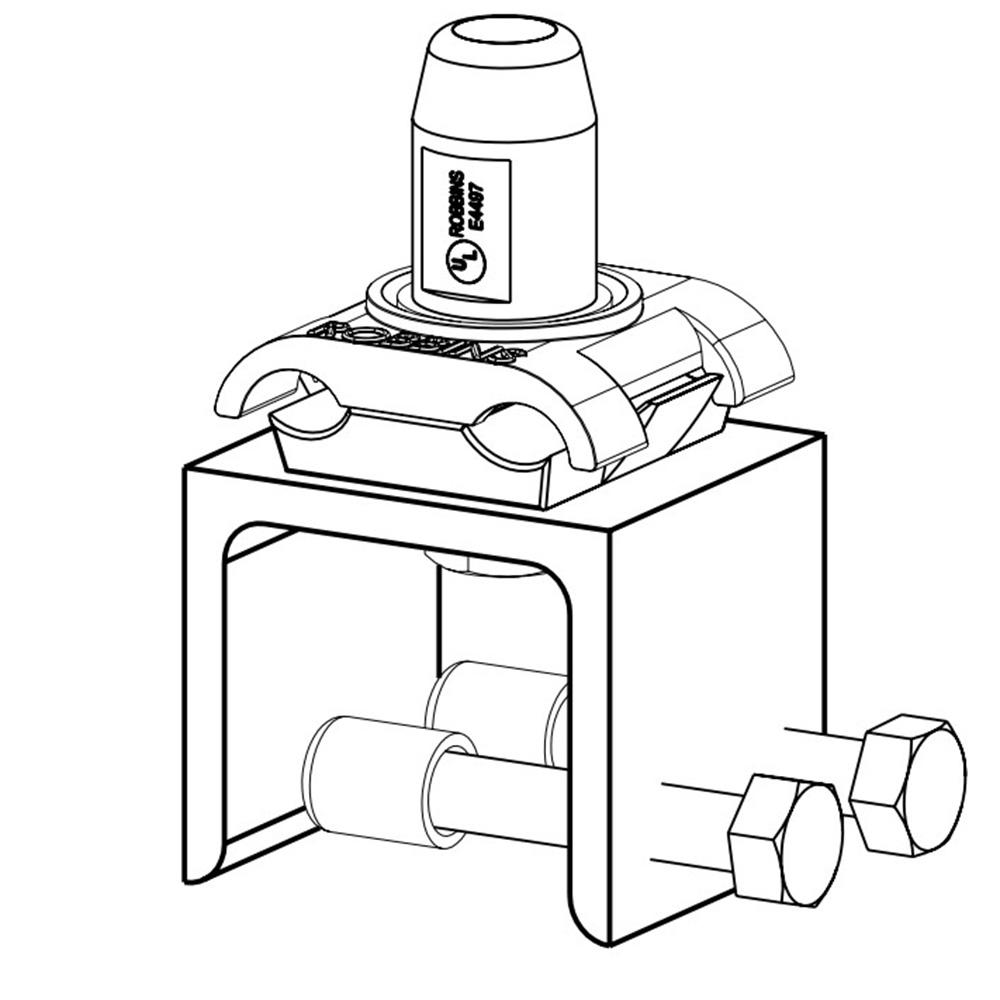

Item #A852-12 		Standing Seam Base; 1/2"; Aluminum; Fits conductor sizes 0.500 to 0.625; UL Listed 0.74 lbs. $19.00* EA
Item #A852-58
A852-58
Item #A852-58 		Standing Seam Base; 5/8"; Aluminum; Fits conductor sizes 0.500 to 0.625; UL Listed 0.72 lbs. $19.00* EA
Item #A852-2S-12
A852-2S-12
Item #A852-2S-12 		Standing Seam Base; 1/2"; Aluminum; Fits conductor sizes 0.500 to 0.625; Base has bolts on both sides for centering; UL Listed 0.80 lbs. $20.00* EA
Item #A852-2S-58
A852-2S-58

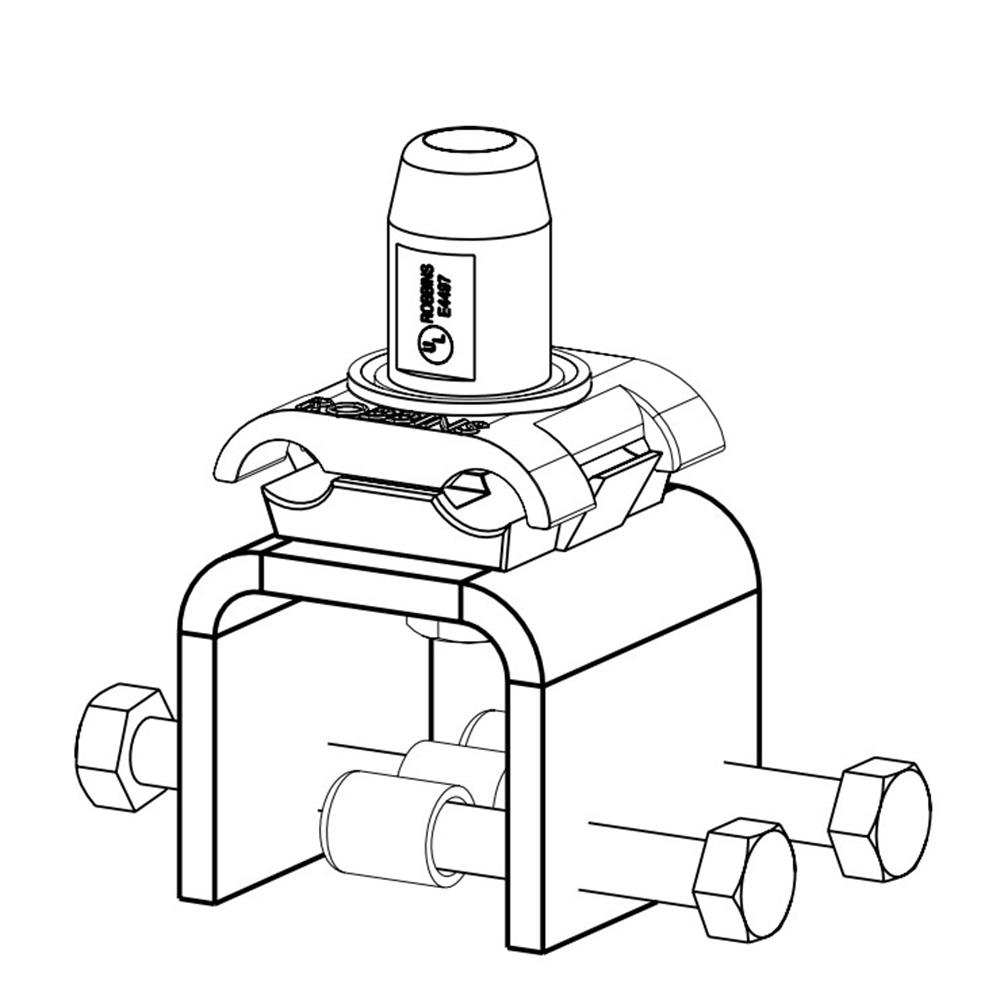

Item #A852-2S-58 		Standing Seam Base; 5/8"; Aluminum; Fits conductor sizes 0.500 to 0.625; Base has bolts on both sides for centering; UL Listed 0.80 lbs. $20.00* EA
Item #A853-12
A853-12
Item #A853-12 		Standing Seam Base; 1/2"; cast aluminum with swivel; Fits conductor sizes 0.375 to 0.500; UL Listed 0.42 lbs. $16.00* EA
Item #A853-58
A853-58
Item #A853-58 		Standing Seam Base; 5/8"; cast aluminum with swivel; Fits conductor sizes 0.375 to 0.500; UL Listed 0.42 lbs. $16.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
