Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Bonding Straps - Class II Bolt...  >  Straps - Secondary Bonding

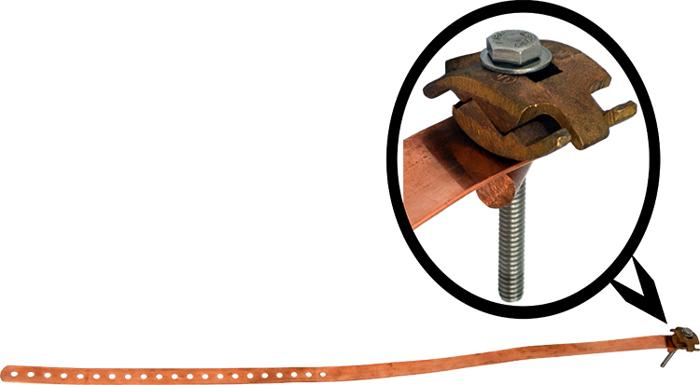

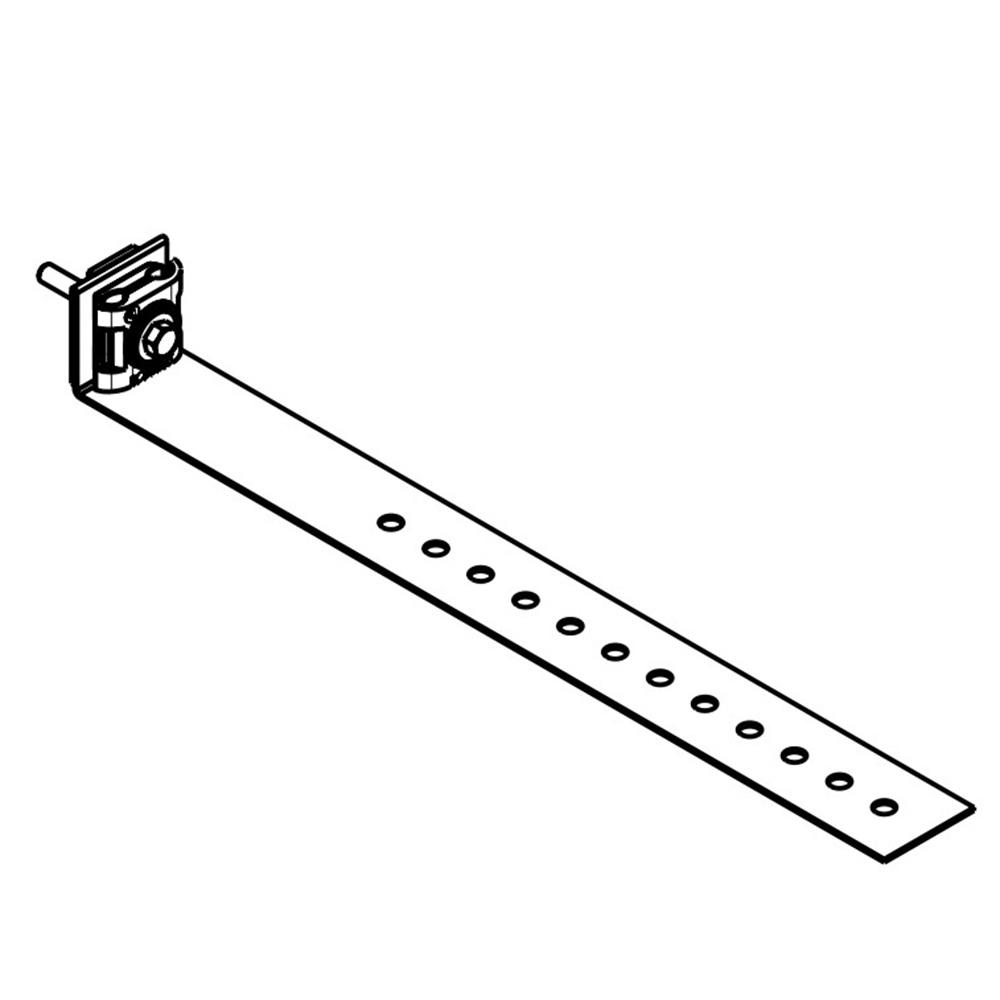

allG offers Secondary Bonding Straps that feature 1" wide straps, and utilize a secondary cast bonding connector.

See Also

Image Item Description Weight Price Unit Qty
Item #1270
1270
Item #1270 		Secondary Bonding Strap; Copper; Fits 3/4" thru 2-1/2" OD; Overall length 10-13/16"; Connector fits grounding conductor sizes #6 solid thru 4/0 stranded 0.25 lbs. $29.00* EA
Item #1272
1272
Item #1272 		Secondary Bonding Strap; Copper; Fits 2" thru 6-1/2" OD; Overall length 22-1/4"; Connector fits grounding conductor sizes #6 solid thru 4/0 stranded 0.32 lbs. $37.00* EA
Item #1279
1279
Item #1279 		Secondary Bonding Strap; Copper; Fits 6" thru 10-1/2" OD; Overall length 35-7/16"; Connector fits grounding conductor sizes #6 solid thru 4/0 stranded 0.82 lbs. $47.00* EA
Item #A1270
A1270
Item #A1270 		Secondary Bonding Strap; Aluminum; Fits 3/4" thru 2-1/2" OD; Overall length 10-13/16"; Connector fits lightning conductor sizes A124 thru A237 0.16 lbs. $14.50* EA
Item #A1272
A1272
Item #A1272 		Secondary Bonding Strap; Aluminum; Fits 2" thru 6-1/2" OD; Overall length 22-1/4"; Connector fits lightning conductor sizes A124 thru A237 0.23 lbs. $17.00* EA
Item #A1279
A1279
Item #A1279 		Secondary Bonding Strap; Aluminum; Fits 6" thru 10-1/2" OD; Overall length 35-7/16"; Connector fits lightning conductor sizes A124 thru A237 0.34 lbs. $20.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
