Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Bonding Straps - Class II Bolt...  >  Strap - Ground

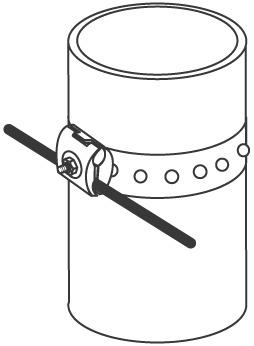

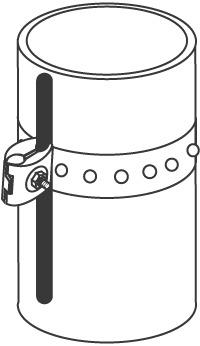

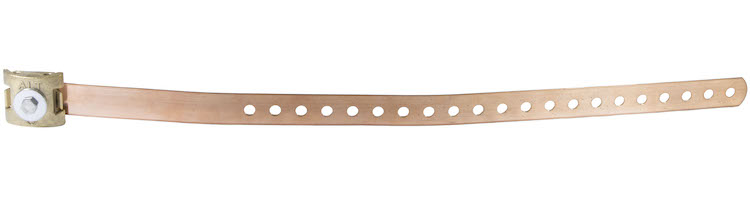

allG offers Ground Straps that are used to bond pipes and round objects. The strap is 1" wide by 1/16" thick and is available in multiple lengths. The conductor is secured with a heavy duty cast bolt type conductor connector.

See Also

Image Item Description Weight Price Unit Qty
Item #1200
1200
Item #1200 		Bonding Strap; copper; fits 3/4" thru 2-1/2" OD; overall length is 10-13/16"; connector fits grounding conductor sizes #2 stranded - 4/0 stranded 0.58 lbs. $30.00* EA
Item #1201
1201
Item #1201 		Bonding Strap; Copper; Fits 2" thru 6-1/2" OD; 22-1/4" overall length; Connector fits grounding conductor sizes #2 stranded thru 4/0 stranded; UL Listed 0.80 lbs. $38.00* EA

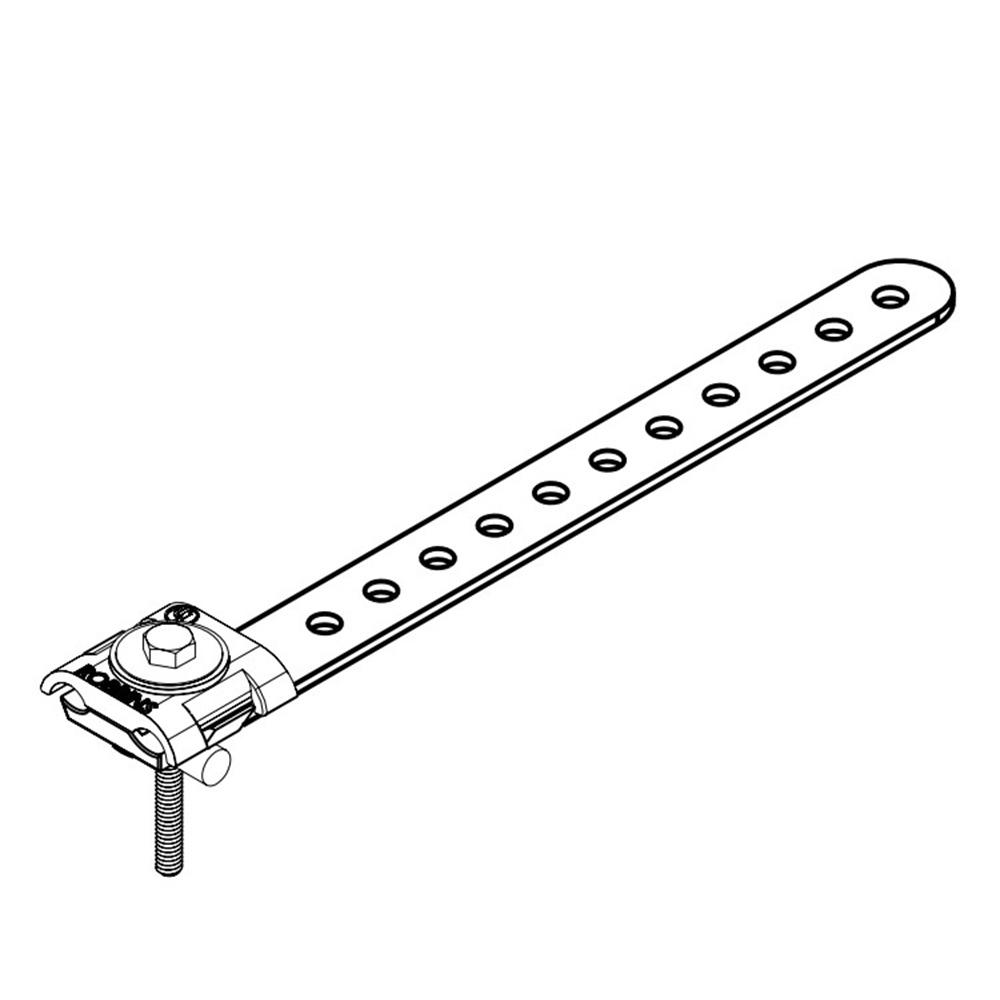

Item #1209
1209
Item #1209 		Bonding Strap; Copper; Fits 6" thru 10-1/2" OD; 35-7/16" overall length; Connector fits grounding conductor sizes #2 stranded thru 4/0 stranded; UL Listed 1.09 lbs. $47.00* EA

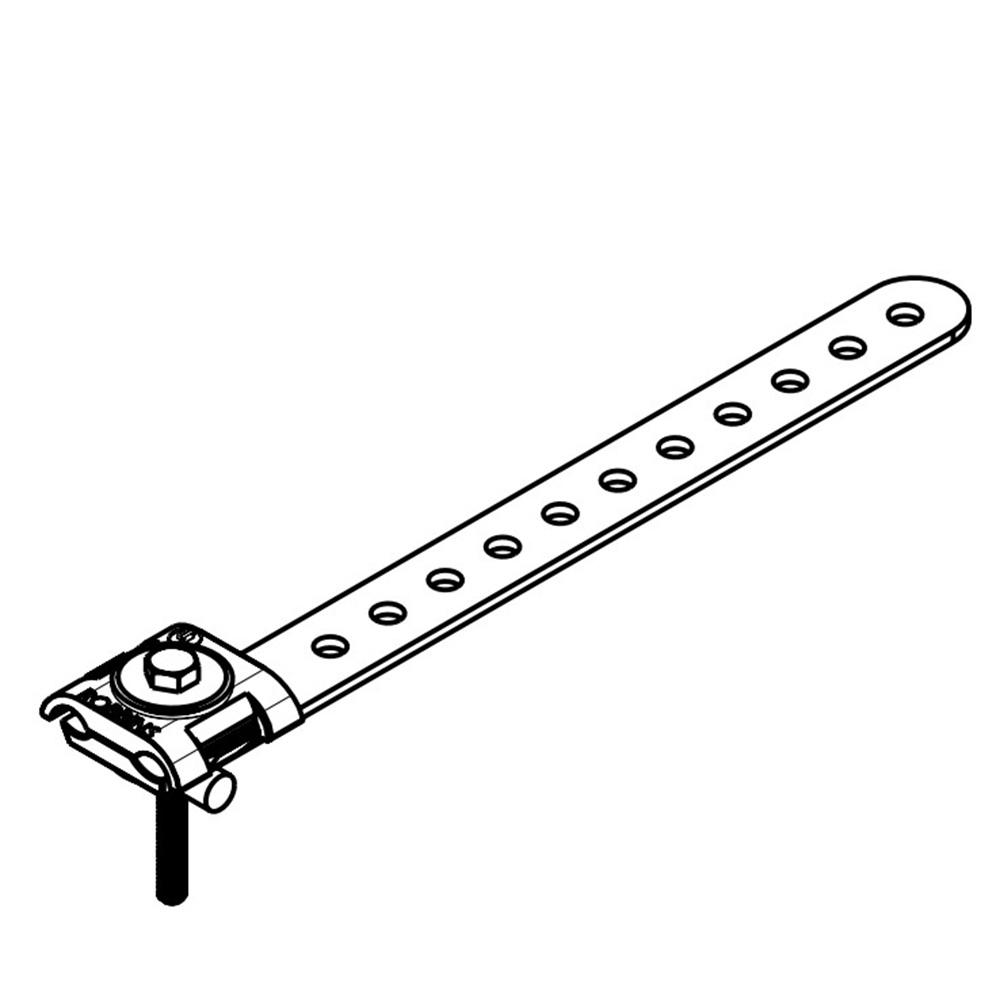

Item #1200T
1200T
Item #1200T 		Bonding Strap; tinned copper; fits 3/4" thru 2-1/2" OD; overall length is 10-13/16"; connector fits grounding conductor sizes #2 stranded - 4/0 stranded 0.58 lbs. $33.00* EA
Item #1201T
1201T
Item #1201T 		Bonding Strap; tinned copper; fits 2" thru 6-1/2" OD; overall length is 22-1/4"; connector fits grounding conductor sizes #2 stranded - 4/0 stranded 0.80 lbs. $42.00* EA
Item #1209T
1209T
Item #1209T 		Bonding Strap; tinned copper; fits 6" thru 10-1/2" OD; overall length is 35-7/16"; connector fits grounding conductor sizes #2 stranded - 4/0 stranded 1.09 lbs. $51.00* EA
Item #A1200
A1200
Item #A1200 		Bonding Strap; aluminum; fits 3/4" thru 2-1/2" OD; overall length 10-13/16"; connector fits lightning conductor sizes A124 thru A237 0.29 lbs. $23.00* EA
Item #A1201
A1201
Item #A1201 		Bonding Strap; Aluminum; Fits 2" thru 6-1/2" OD; 22-1/4" overall length; Connector fits lightning conductor sizes A124 thru A237; UL Listed 0.31 lbs. $26.00* EA
Item #A1209
A1209
Item #A1209 		Bonding Strap; Aluminum; Fits 6" thru 10-1/2" OD; 35-7/16" overall length; Connector fits lightning conductor sizes A124 thru A237; UL Listed 0.33 lbs. $30.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
