Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Thru Wall & Thru Roof Connecto...  >  Thru Roof Connector - Vertical

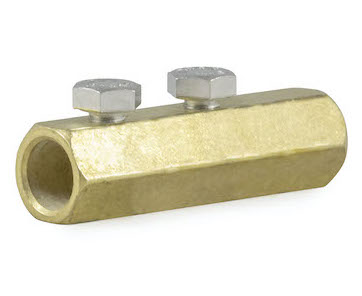

allG Vertical Thru Roof Connectors are used to connect air terminals to a vertical conductor. The base can also be used to connect conductors at thru roof and thru wall locations.

See Also

Image Item Description Weight Price Unit Qty
Item #849-38
849-38
Item #849-38 		Vertical Thru Roof Connector; Brass; Standard; Female; 3/8" air teminal; Fits conductor sizes 129/#2 solid thru 268-3/0 stranded cable; UL Listed 0.28 lbs. $13.00* EA
Item #849-12
849-12
Item #849-12 		Vertical Thru Roof Connector; Brass; Standard; Female; 1/2" air teminal; Fits conductor sizes 129/#2 solid thru 268/#3/0 stranded; UL Listed 0.28 lbs. $13.00* EA

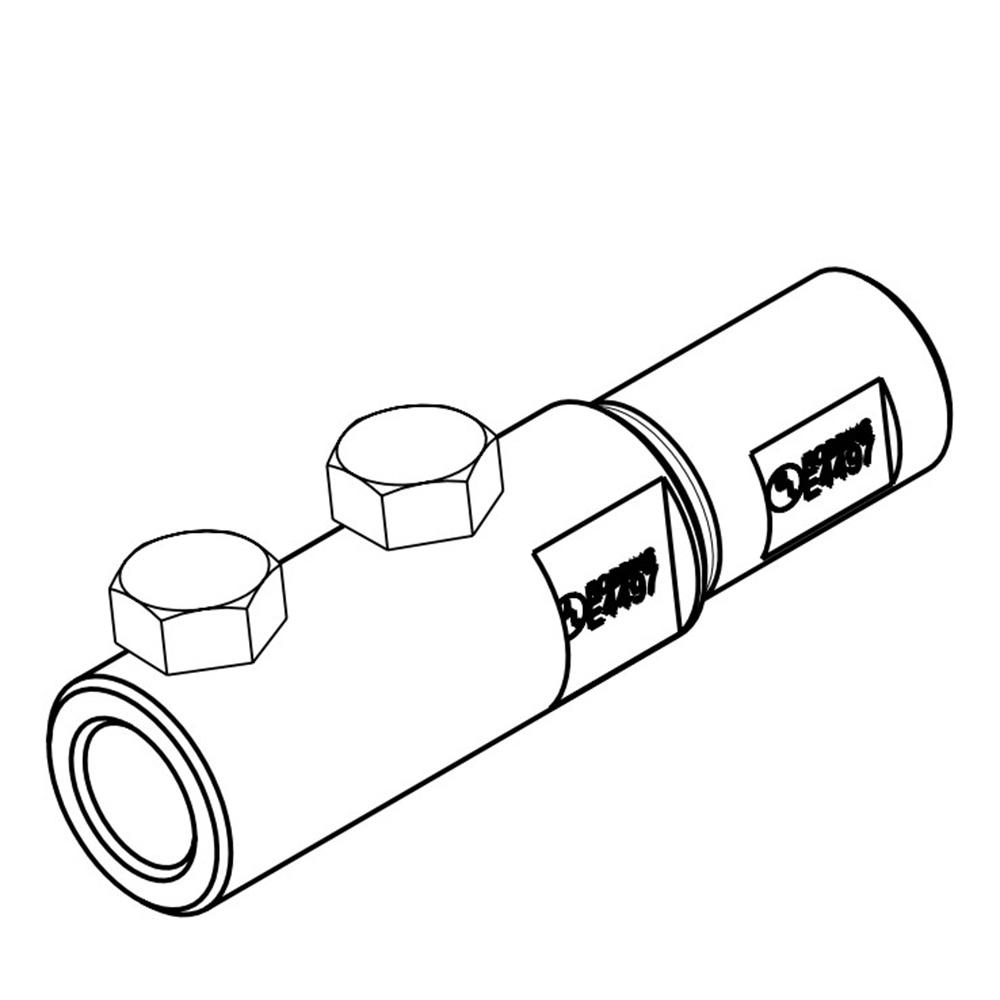

Item #849BM-12
849BM-12
Item #849BM-12 		Vertical Thru Roof Connector; Bimetal; Copper conductor to 1/2" aluminum air teminal or threaded rod; UL Listed 0.35 lbs. $19.00* EA
Item #849BM-12-SS
849BM-12-SS
Item #849BM-12-SS 		Vertical Thru Roof Connector; Bimetal; Copper conductor to 1/2" aluminum air teminal or threaded rod with allen head set screws; UL Listed 0.33 lbs. $19.00* EA

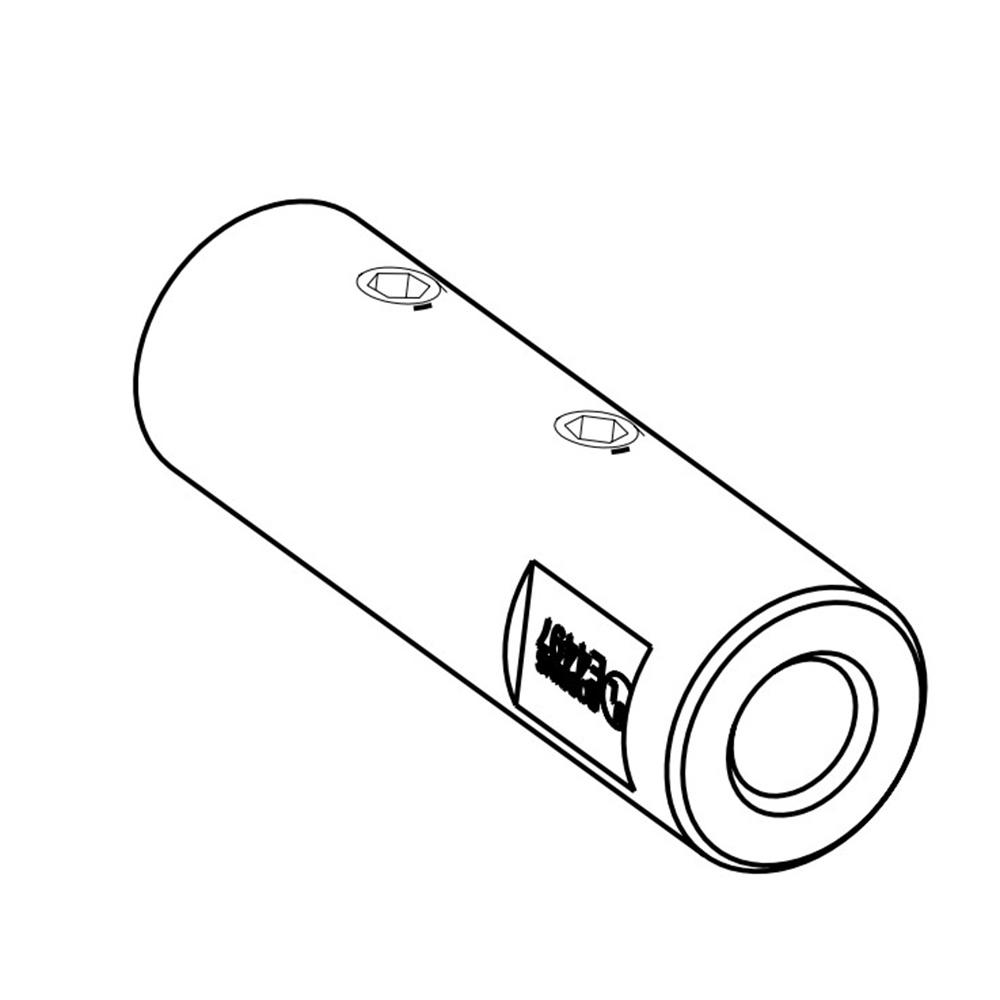

Item #849-12-SS
849-12-SS
Item #849-12-SS
Vertical Thru Roof Connector; Brass; Standard; Female; 1/2" air teminal; Fits conductor sizes 129/#2 solid thru 268-3/0 stranded cable with Allen head... (see more)
 0.26 lbs. $14.00* EA
Item #849-58
849-58
Item #849-58 		Vertical Thru Roof Connector; Brass; Standard; Female; 5/8" air teminal; Fits conductor sizes 129/#2 solid thru 268-3/0 stranded cable; UL Listed 0.28 lbs. $14.00* EA
Item #849-121
849-121
Item #849-121 		Vertical Thru Roof Connector; Brass; Heavy duty; Female; 1/2" air teminal; Fits conductor sizes 268-4/0 solid thru 288-250MCM; UL Listed 0.42 lbs. $17.00* EA
Item #849-581
849-581
Item #849-581 		Vertical Thru Roof Connector; Brass; Heavy duty; Female; 5/8" air teminal; Fits conductor sizes 268-4/0 solid thru 288/250MCM; UL Listed 0.42 lbs. $17.00* EA
Item #A849-12
A849-12
Item #A849-12 		Vertical Thru Roof Connector; Aluminum; Standard; Female; 1/2" air teminal; Fits A124 thru A237 cable; UL Listed 0.11 lbs. $7.00* EA
Item #A849-12-SS
A849-12-SS
Item #A849-12-SS 		Vertical Thru Roof Connector; Aluminum; Standard; Female; 1/2" air teminal; Fits A124 thru A237 cable with Allen head set screws; UL Listed 0.10 lbs. $8.00* EA
Item #A849-58
A849-58
Item #A849-58 		Vertical Thru Roof Connector; Aluminum; Standard; Female; 5/8" air teminal; Fits A124 thru A237 cable; UL Listed 0.16 lbs. $8.00* EA
Item #A849-121
A849-121
Item #A849-121 		Vertical Thru Roof Connector; Aluminum; Heavy duty; Female; 1/2" air teminal; Fits A288 cable; UL Listed 0.17 lbs. $14.00* EA

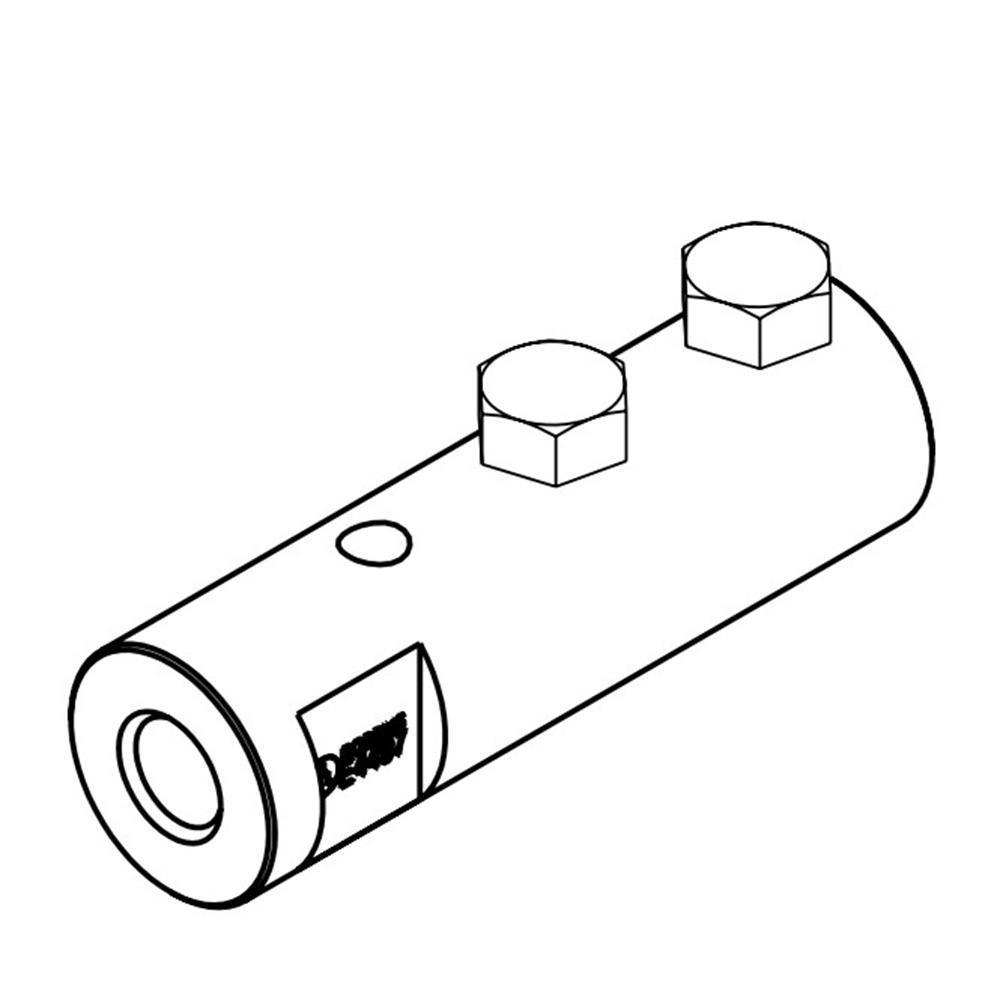

Item #A849-581
A849-581
Item #A849-581 		Vertical Thru Roof Connector; Aluminum; Heavy duty; Female; 5/8" air teminal; Fits A288 cable; UL Listed 0.16 lbs. $14.00* EA
Item #849-38T
849-38T
Item #849-38T 		Vertical Thru Roof Connector; Tinned; Standard; Female; 3/8" air teminal; Fits conductor sizes 129/#2 solid thru 268-3/0 stranded cable; UL Listed 0.30 lbs. $17.00* EA

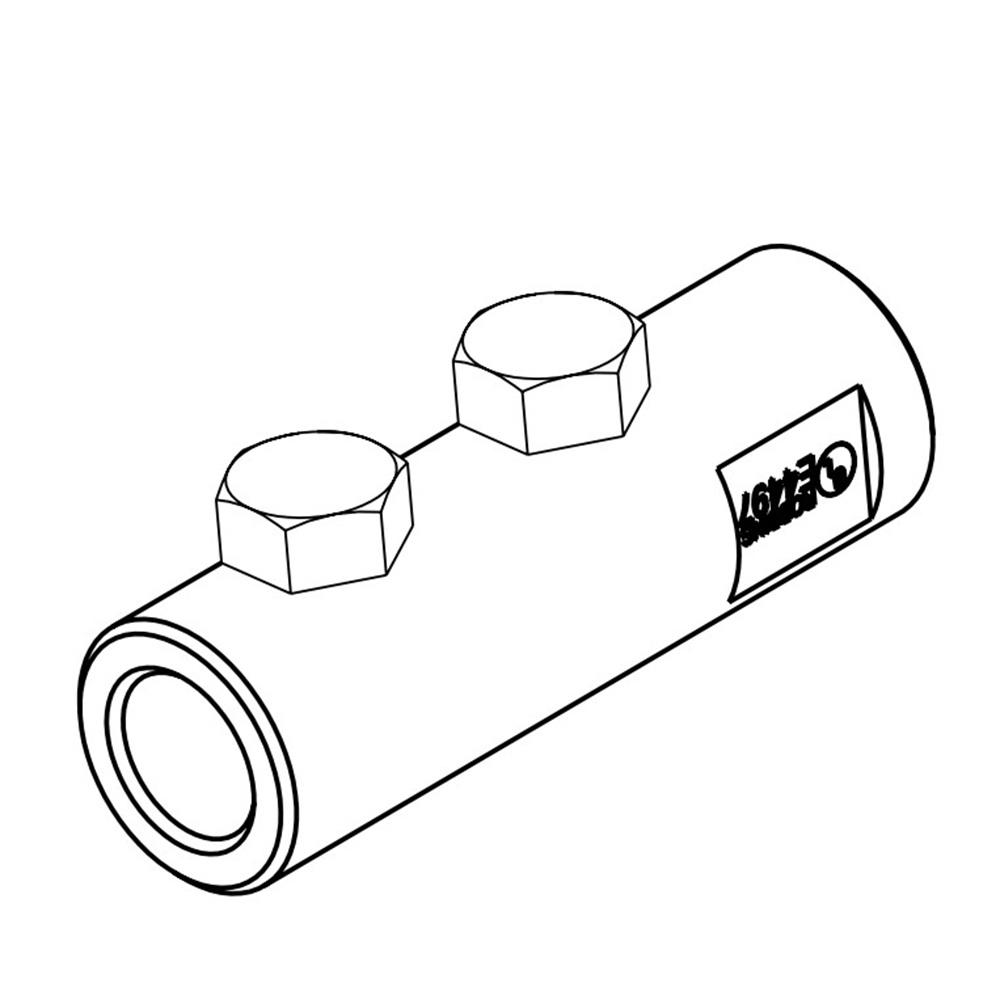

Item #849-12T
849-12T
Item #849-12T 		Vertical Thru Roof Connector; Tinned; Standard; Female; 1/2" air teminal; Fits conductor sizes 129/#2 solid thru 268-3/0 stranded cable; UL Listed 0.29 lbs. $17.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
