Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Air Terminal Bases - Class II ...  >  Female Hinged Bases

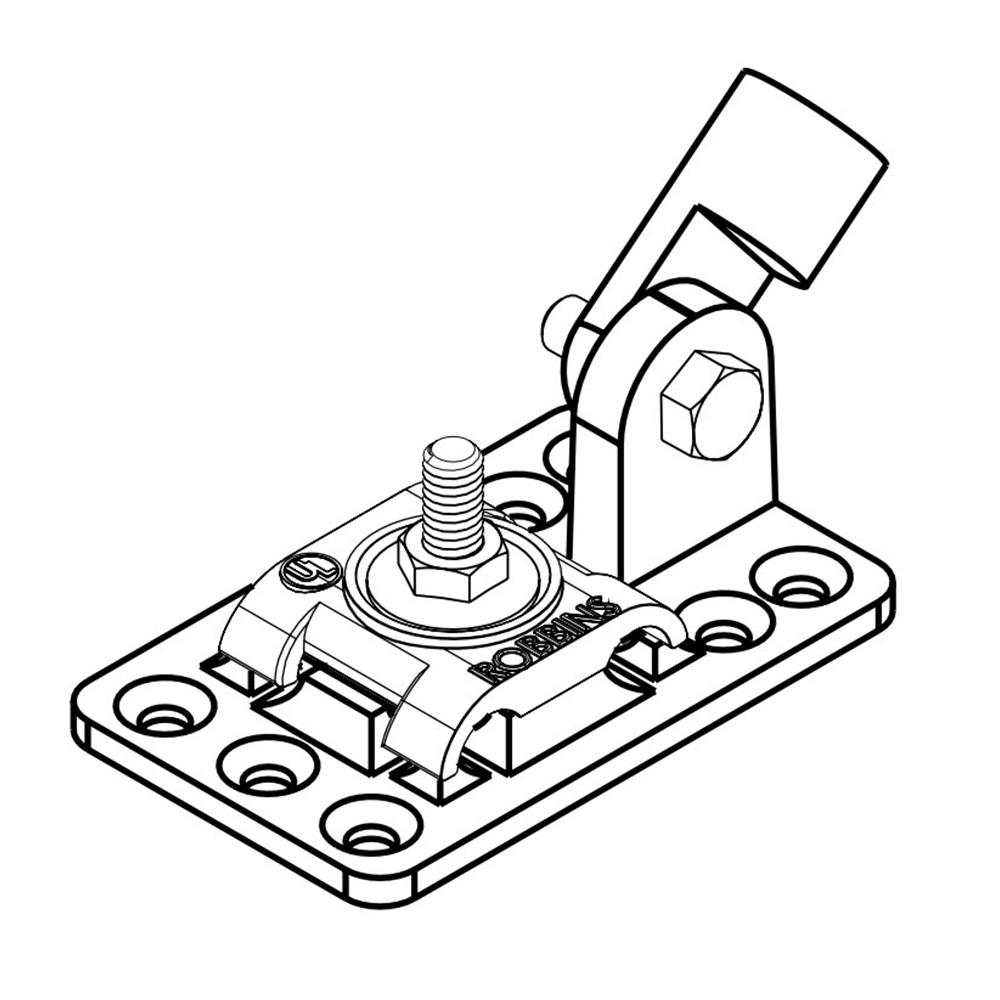

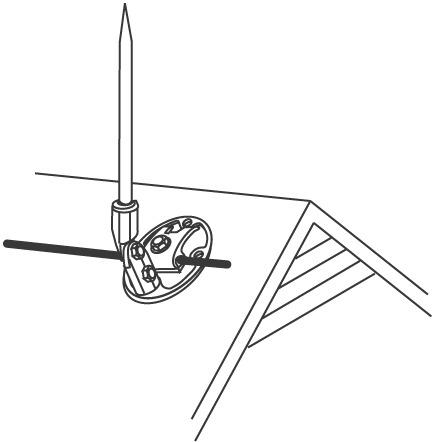

allG offers a cast Hinged Base with swivel adapter designed to mount air terminals on sloped surfaces. Each base includes a bolt type conductor connector.

See Also

Image Item Description Weight Price Unit Qty
Item #890-38
890-38
Item #890-38 		Female Hinged Base; 3/8"; Bronze; Universal Base for all mounting applications; Fits conductor sizes 0.375 to 0.562; UL Listed 1.04 lbs. $33.00* EA
Item #890-12
890-12
Item #890-12 		Female Hinged Base; 1/2"; Bronze; Universal Base for all mounting applications; Fits conductor sizes 0.375 to 0.562; UL Listed 1.04 lbs. $33.00* EA
Item #890-58
890-58
Item #890-58 		Female Hinged Base; 5/8"; Bronze; Universal Base for all mounting applications; Fits conductor sizes 0.375 to 0.562; UL Listed 1.04 lbs. $33.00* EA
Item #A890-12
A890-12
Item #A890-12 		Female Hinged Base; 1/2"; Aluminum; Universal Base for all mounting applications; Fits conductor sizes 0.375 to 0.562; UL Listed 0.36 lbs. $16.00* EA
Item #A890-58
A890-58
Item #A890-58 		Female Hinged Base; 5/8"; Aluminum; Universal Base for all mounting applications; Fits conductor sizes 0.375 to 0.562; UL Listed 0.36 lbs. $16.00* EA
Item #890PS-38
890PS-38

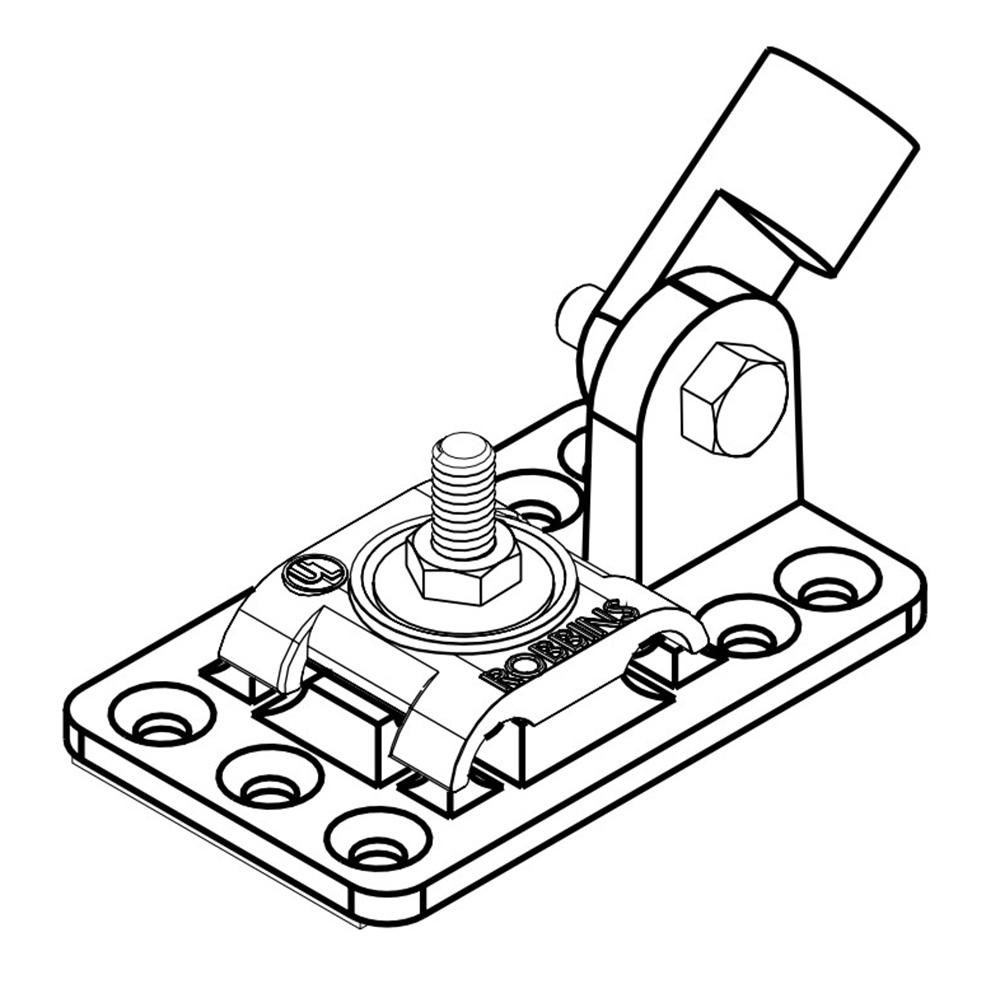

Item #890PS-38 		Female Hinged Base; 3/8"; Bronze; Includes Peel and Stick Adhesive Tape on bottom of base; Fits conductor sizes 0.375 to 0.562; UL Listed 1.19 lbs. $38.00* EA
Item #890PS-12
890PS-12
Item #890PS-12 		Female Hinged Base; 1/2"; Bronze; Includes Peel and Stick Adhesive Tape on bottom of base; Fits conductor sizes 0.375 to 0.562; UL Listed 1.19 lbs. $38.00* EA
Item #890PS-58
890PS-58
Item #890PS-58 		Female Hinged Base; 5/8"; Bronze; Includes Peel and Stick Adhesive Tape on bottom of base; Fits conductor sizes 0.375 to 0.562; UL Listed 1.19 lbs. $39.00* EA
Item #A890PS-12
A890PS-12
Item #A890PS-12 		Female Hinged Base; 1/2"; Aluminum; Includes Peel and Stick Adhesive Tape on bottom of base; Fits conductor sizes 0.375 to 0.562; UL Listed 0.44 lbs. $22.00* EA
Item #A890PS-58
A890PS-58
Item #A890PS-58 		Female Hinged Base; 5/8"; Aluminum; Includes Peel and Stick Adhesive Tape on bottom of base; Fits conductor sizes 0.375 to 0.562; UL Listed 0.44 lbs. $22.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
