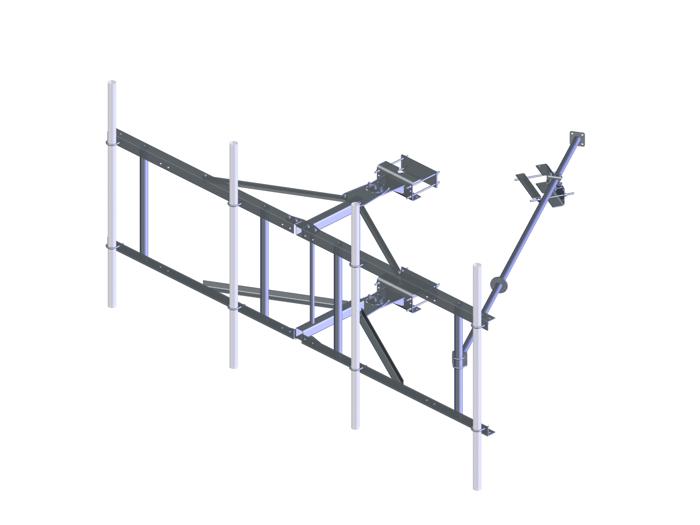

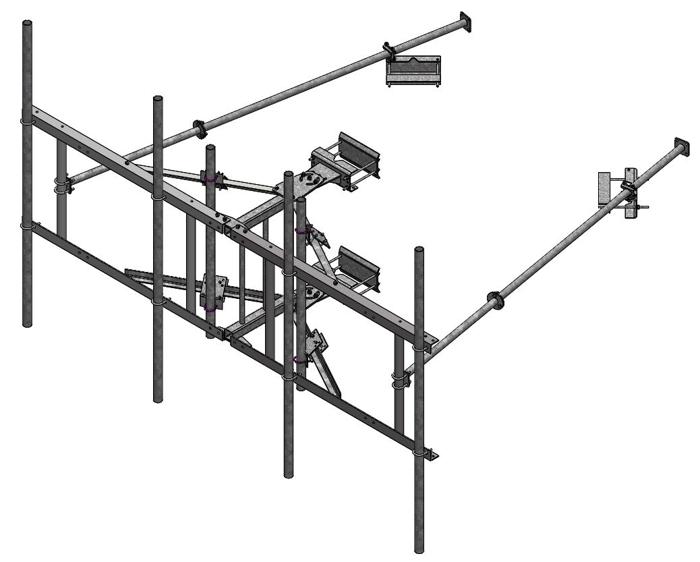

The galvanized steel Antenna Mount Assembly includes welded swing out face frames to minimize installation time. This truly Universal Mount attaches to round or angle leg towers without an additional interface kit and provides plus or minus 60-degrees of azimuth adjustment. The innovative mounting clamps accommodate straight and tapered faced lattice towers up to a 2:20 taper. The clamp fits towers legs from 1-1/2" up to 8" OD round, 8"x8" 90-degree angles, or 11" tip-to-tip 60-degree angles. All fasteners are 1/2" throughout - only one wrench size (7/8") is required to complete the installation. All 2116KD series Sector Frames meet Rev TIA-222-G requirements. Antenna mount pipe is sold separately.

Related Product Info

• 2116KD-10
• 2116KD-12
• 2116KD-12HD
• 2116-MSK

See Also

• Galvanized Pipe/Antenna Mounting Pipe - under 4" OD

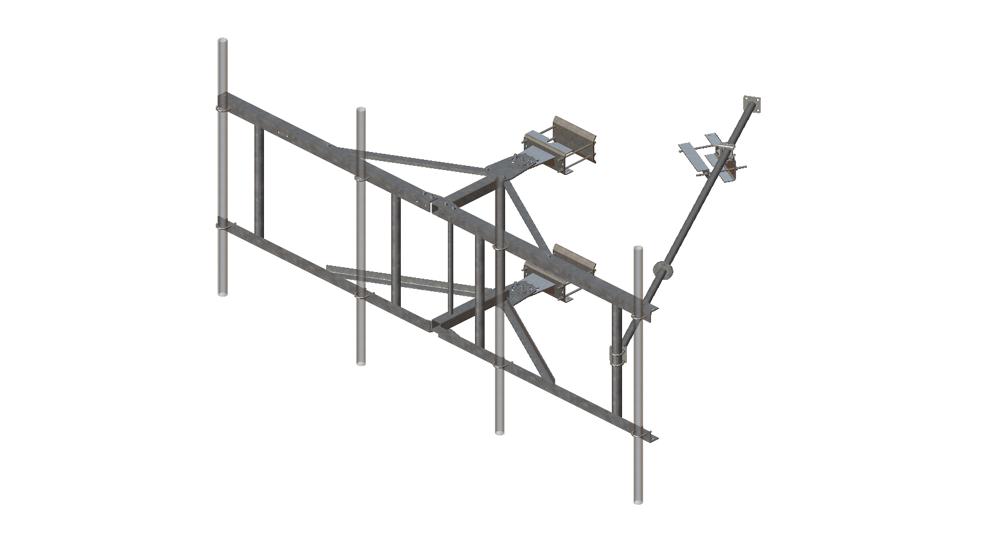

Item# 2116KD-10

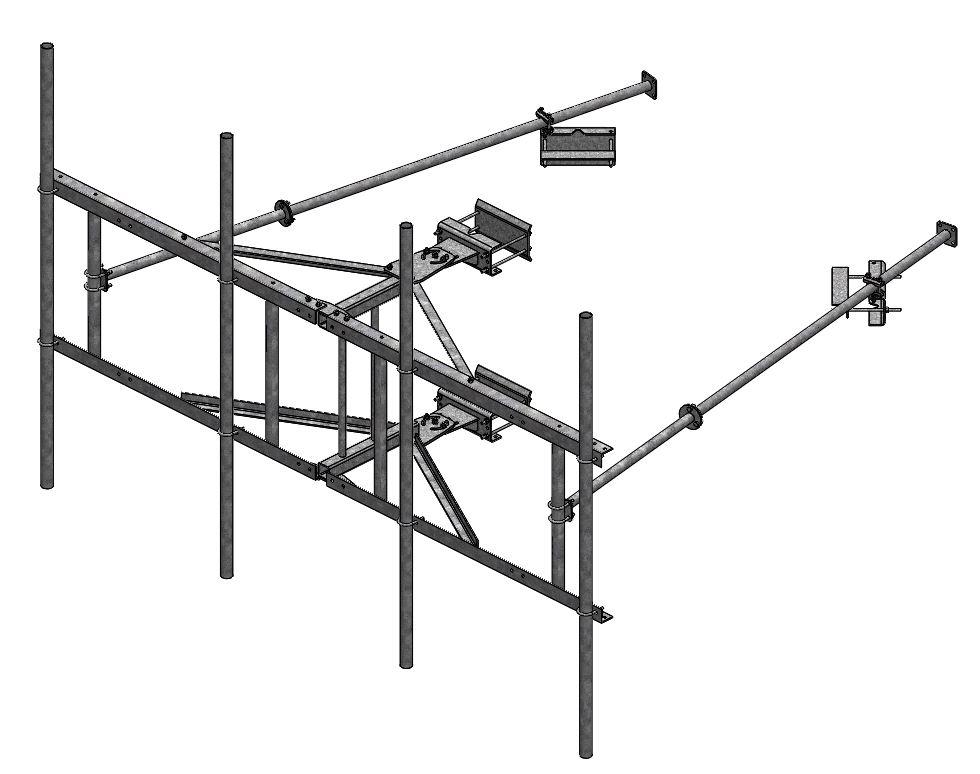

Item# 2116KD-12HD

Item# 2116KD-12HD-2RM

Image	Item	Description	Weight	Price	Unit	Qty
	2116KD-10	10' Knock-Down Universal Sector Frame; single sway bar support; ALT Part #2125 antenna mount pipes sold seperately	404 lbs.	$2,170.00*	EA
	2116KD-12	12' Knock-Down Universal Sector Frame; Single sway bar support; ALT Part #2125 antenna mount pipes sold seperately	425 lbs.	$2,200.00*	EA
	2116KD-12HD	12' Knock-Down Universal Sector Frame; double sway bar support; ALT Part #2125 antenna mount pipes sold seperately	619 lbs.	$2,475.00*	EA
	2116-MSK	Universal Mount Stabilizer Kit for Sector Frames; Adjustable lenghts; Applicable in horizontal or vertical positions at frame attachment points; Fits ... (see more) Universal Mount Stabilizer Kit for Sector Frames; Adjustable lenghts; Applicable in horizontal or vertical positions at frame attachment points; Fits frame pipe sizes 2-3/8" OD through 3-1/2" OD	143 lbs.	$735.00*	EA

* Pricing subject to change on this item
