Product Guide > Wireless Site Accessories > Monopole Applications > Monopole T-Arm Antenna Mount

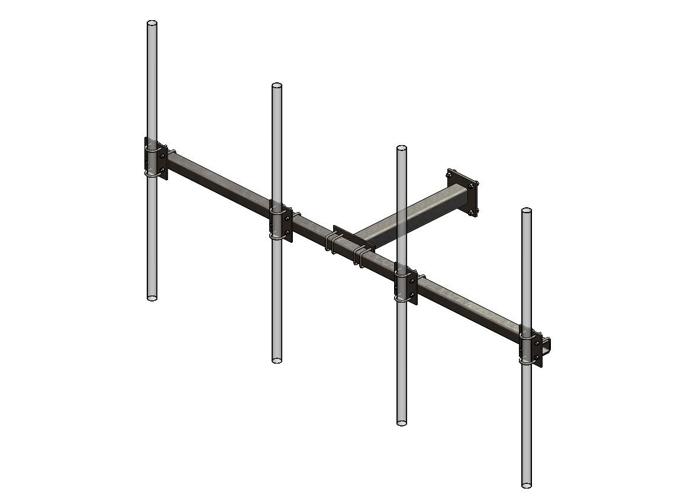

The galvanized square tube steel Monopole T-Arm Antenna Mount accomodates up to four antennas. This Mount is available in three different sizes: 4', 8', 10', and 12' to fit a wide range of antenna mounting requirements. The design utilizes the allG Part #2121LD series of Universal Monopole Saddle Brackets and the allG Part #2122S-XX-MTKIT series Antenna Mount Pipe kits. The Saddle Bracket Mounts and Antenna Mount Pipe are sold seperately. allG Part #2122S-5 is designed for (3) panel antennas, (3) RRU units, (1) TMA/Dist. Box, or 250 lbs.

Image	Item	Description	Weight	Price	Unit	Qty

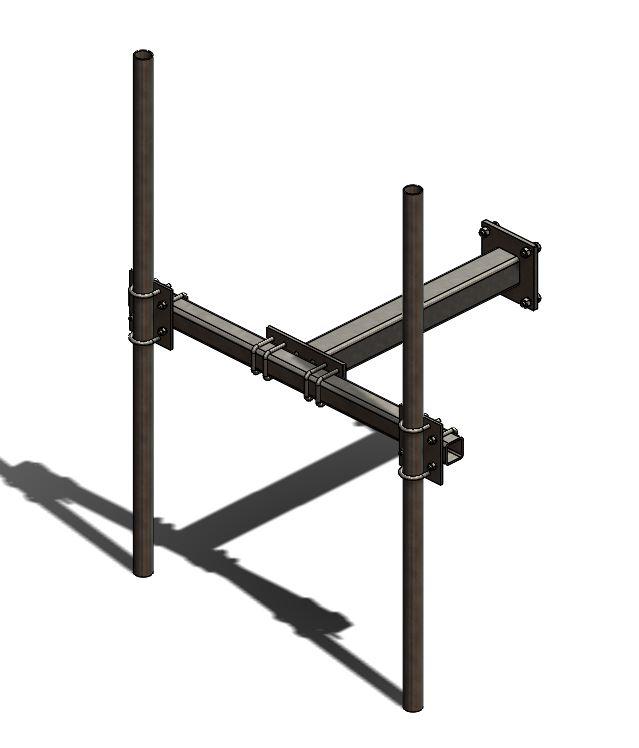

	2122S-4	4'-2" Monopole Square T-Arm Mount; crossover clamps & hardware included; ALT Part #2121LD Monopole Saddle Bracket & antenna mount pipes sold seperately	171.50 lbs.	$0.00*	EA
	2122S-5	5'-8" Monopole T-Arm Mount; *requires 2122S--MTKIT for Antenna Mounts; ALT Part #2121LD Monopole Saddle Bracket, antenna mount crossover clamps, &... (see more) 5'-8" Monopole T-Arm Mount; requires 2122S--MTKIT for Antenna Mounts*; ALT Part #2121LD Monopole Saddle Bracket, antenna mount crossover clamps, & pipes sold seperately; designed to hold (3) panel antennas; (3) RRU units; (1) TMA/dist. box; and point loading of 250 lbs.	117.42 lbs.	$0.00*	EA
	2122S-8	8'-6" Monopole T-Arm Mount; *requires 2122S--MTKIT for Antenna Mounts; ALT Part #2121LD Monopole Saddle Bracket, antenna mount, crossover clamps, ... (see more) 8'-6" Monopole T-Arm Mount; requires 2122S--MTKIT for Antenna Mounts*; ALT Part #2121LD Monopole Saddle Bracket, antenna mount, crossover clamps, & pipes sold seperately	140.50 lbs.	$0.00*	EA
	2122S-10	10'-6" Monopole T-Arm Mount; *requires 2122S--MTKIT for Antenna Mounts; ALT Part #2121LD Monopole Saddle Bracket, antenna mount crossover clamps, ... (see more) 10'-6" Monopole T-Arm Mount; requires 2122S--MTKIT for Antenna Mounts*; ALT Part #2121LD Monopole Saddle Bracket, antenna mount crossover clamps, & pipes sold seperately	159.40 lbs.	$0.00*	EA
	2122S-12	12'-6" Monopole T-Arm Mount; *requires 2122S--MTKIT for Antenna Mounts; ALT Part #2121LD Monopole Saddle Bracket, antenna mount, crossover clamps,... (see more) 12'-6" Monopole T-Arm Mount; requires 2122S--MTKIT for Antenna Mounts*; ALT Part #2121LD Monopole Saddle Bracket, antenna mount, crossover clamps, & pipes sold seperately	178.30 lbs.	$870.00*	EA
