Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Thru Wall & Thru Roof Connecto...  >  Thru Roof Point Bases with Horizontal Connector

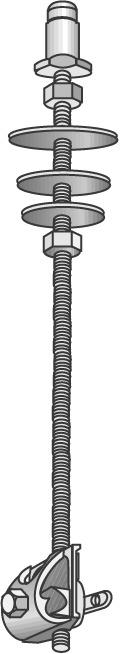

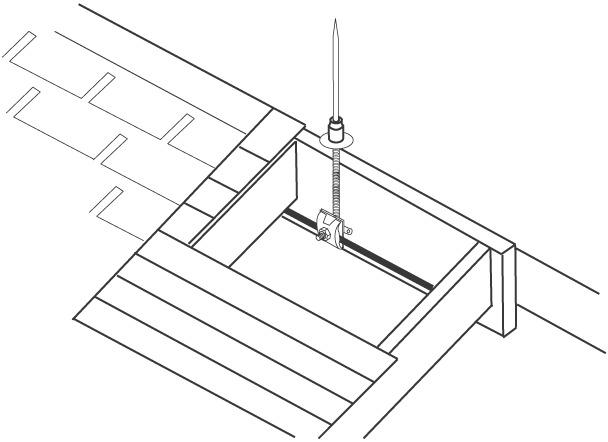

allG offers Thruroof Point Bases with Horizontal Connector that are designed to mount on the roof framing for additional support. The assembly includes an under roof nut and sealing washer.

Related Product Info

See Also

Image Item Description Weight Price Unit Qty
Item #2380-38
2380-38
Item #2380-38 		Thru Roof Point Base; for 3/8" air terminal; 12" bronze; 1/2" brass threaded rod; fits conductor sizes 0.375 to 0.500 1.34 lbs. $38.25* EA
Item #2380-12
2380-12
Item #2380-12 		Thru Roof Point Base; for 1/2" air terminal; 12" bronze; 1/2" brass threaded rod; fits conductor sizes 0.375 to 0.500 1.34 lbs. $38.25* EA
Item #2380BM-12
2380BM-12
Item #2380BM-12 		Thru Roof Point Base; for 1/2" aluminum air terminal; 12"; bimetal; 1/2" stainless steel threaded rod; fits conductor sizes 0.375 to 0.500 1.31 lbs. $28.75* EA

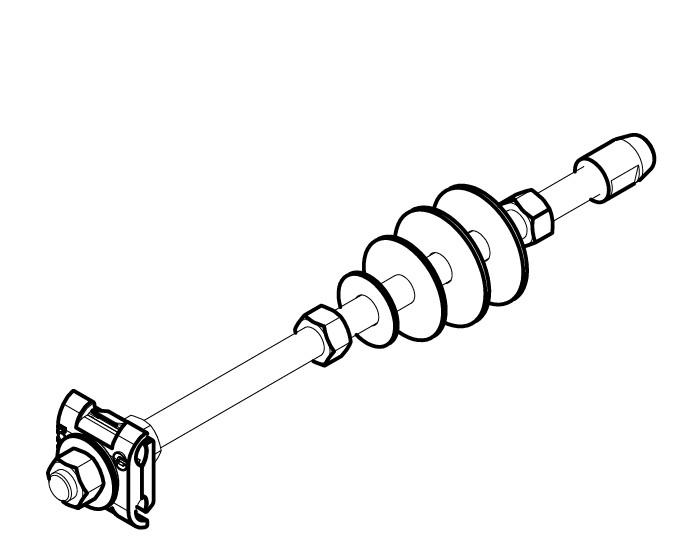

Item #2380BM-58
2380BM-58
Item #2380BM-58 		Thru Roof Point Base; for 5/8" air terminal; 12"; bimetal; 1/2" stainless steel threaded rod; fits conductor sizes 0.375 to 0.500 1.31 lbs. $28.75* EA

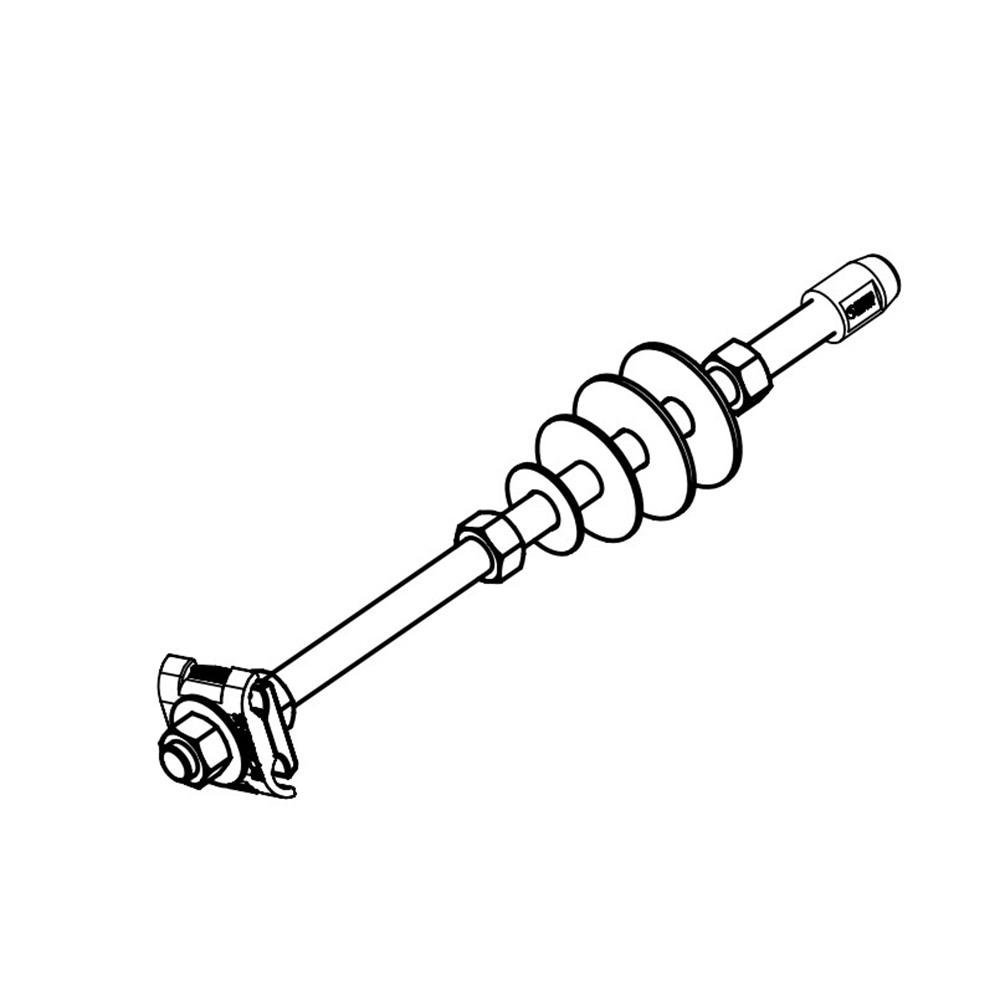

Item #A2380-12
A2380-12
Item #A2380-12 		Thru Roof Point Base; for 1/2" air terminal; 12"; aluminum; 1/2" aluminum threaded rod; fits conductor sizes 0.375 to 0.500 0.92 lbs. $33.50* EA
Item #A2380-58
A2380-58
Item #A2380-58 		Thru Roof Point Base; for 5/8" air terminal; 12"; aluminum; 1/2" aluminum threaded rod; fits conductor sizes 0.375 to 0.500 0.92 lbs. $31.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
