Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Thru Wall & Thru Roof Connecto...  >  Thru Wall Assembly

allG offers Thru Wall Assembly designed for penetration, which can be easily sealed while maintaining low resistance grounding. Stainless steel hardware and sealing washers are included, but also sold seperately for your convenience.

Related Product Info

See Also

Image Item Description Weight Price Unit Qty
Item #2300
2300
Item #2300 		Thru Wall Assembly; 18"; Bronze copper to copper; 1/2" brass threaded rod; Fits conductor sizes 0.292 to 0.528 1.92 lbs. $66.00* EA

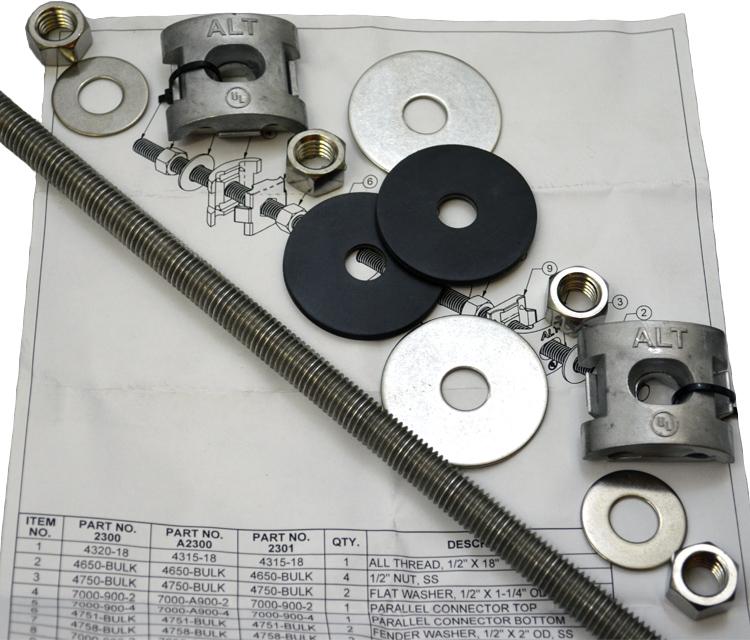

Item #A2300
A2300
Item #A2300 		Thru Wall Assembly; 18"; Aluminum to aluminum; 1/2" aluminum threaded rod; Fits conductor sizes 0.292 to 0.562 1.42 lbs. $34.00* EA

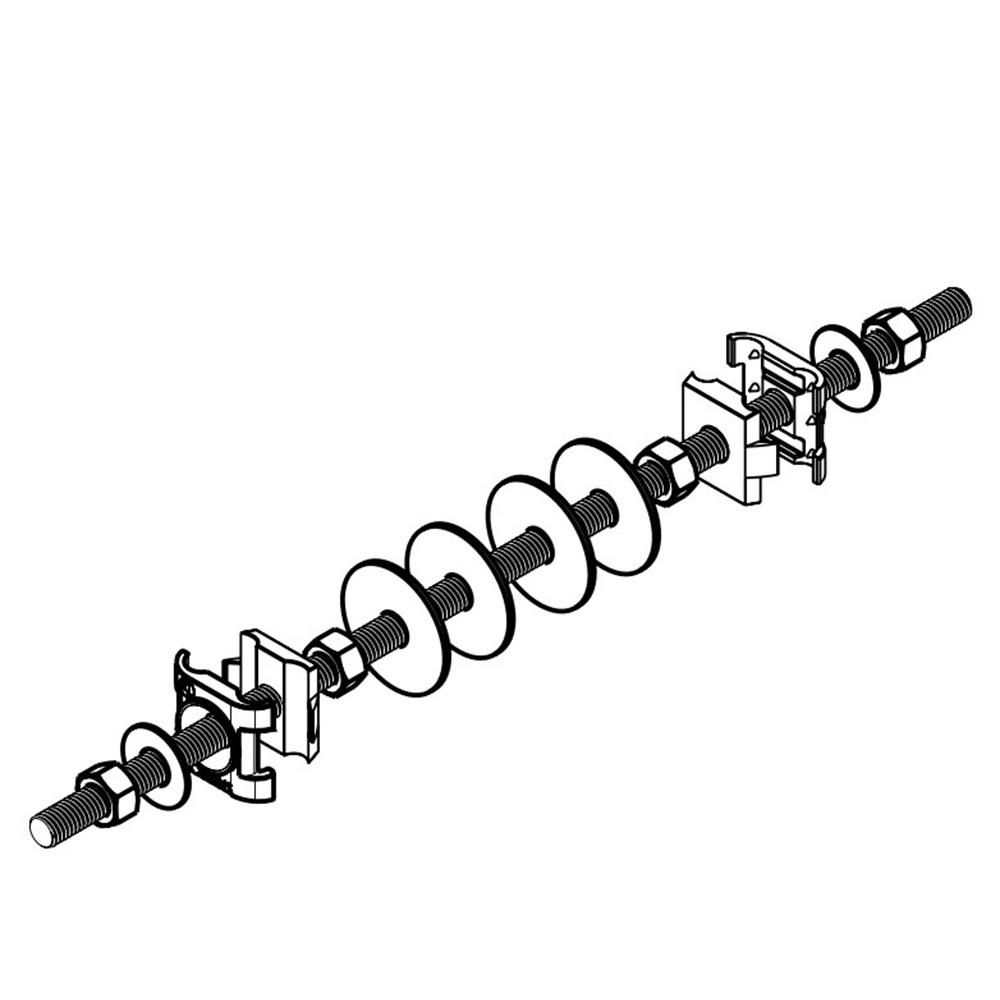

Item #2301
2301
Item #2301 		Thru Wall Assembly; 18"; Bronze/aluminum bimetal; 1/2" stainless steel threaded rod; Fits conductor sizes 0.292 to 0.562 1.72 lbs. $43.00* EA

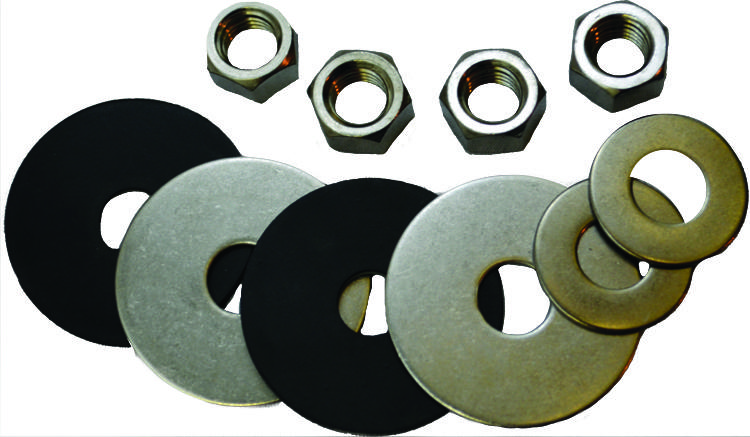

Item #TW-HWKIT
TW-HWKIT
Item #TW-HWKIT 		Thru Wall Hardware Kit; Includes 1/2" stainless hex nut, 1/2" x 1-1/4" OD stainless washer, 1/2" x 2" OD stainless fender, & 1/2" x 2" OD neoprene washer 0.36 lbs. $6.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
