Product Guide  >  Lightning Protection  >  Overhead Lightning Protection  >  Eye Bolts

allG offers Machine Thread Eye Bolts that feature regular, shoulder, and screw thread. They are drop forged, heat-treated steel eye bolts supplied as standard with a hot galvanized finish. Loads are based on a safety factor of 5-to-1. Made in the USA.

Image Item Description Weight Price Unit Qty
Item #4889-126G
4889-126G
Item #4889-126G 		Eye Bolt; Galvanized; 1/2"-13 x 6"; 3" of threads; Fits 3" OD thru 5-9/16" OD pole; 2200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 0.60 lbs. $14.50* EA

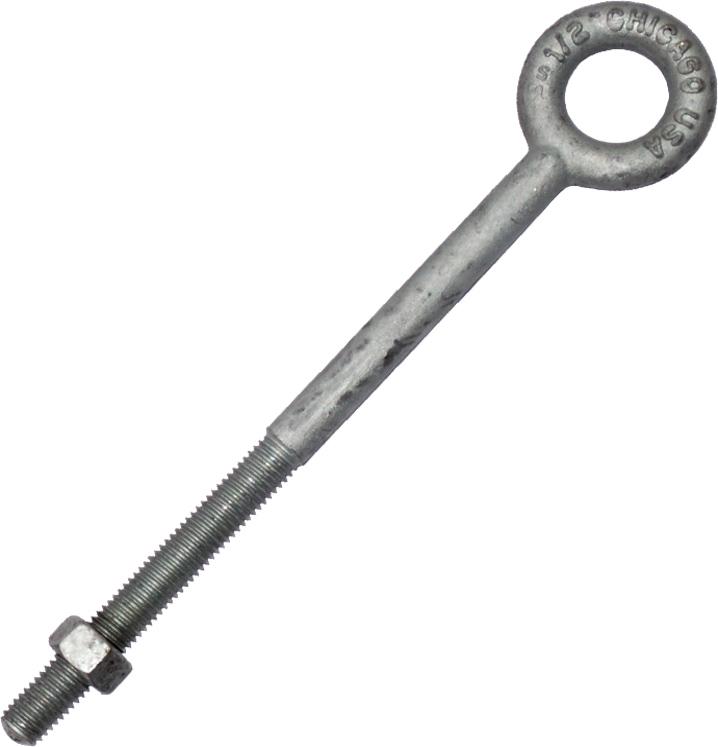

Item #4889-128G
4889-128G
Item #4889-128G 		Eye Bolt; Galvanized; 1/2"-13 x 8"; 4" of threads; Fits 4" OD thru 7-9/16" OD pole; 2200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 0.71 lbs. $19.75* EA
Item #4889-1210G
4889-1210G
Item #4889-1210G 		Eye Bolt; Galvanized; 1/2"-13 x 10"; 4" of threads; Fits 6" OD thru 9-9/16" OD pole; 2200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 0.83 lbs. $25.00* EA
Item #4889-1212G
4889-1212G
Item #4889-1212G 		Eye Bolt; Galvanized; 1/2"-13 x 12"; 4" of threads; Fits 8" OD thru 11-9/16" OD pole; 2200 lb rated capacity; Includes (1) galvanized nut; MADE in USA 0.96 lbs. $27.00* EA
Item #4889-586G
4889-586G
Item #4889-586G 		Eye Bolt; Galvanized; 5/8"-11 x 6"; 3" of threads; Fits 3"OD thru 5"OD pole; 3500 lb rating capacity; Includes (1) galvanized nut; MADE in USA 0.96 lbs. $25.25* EA

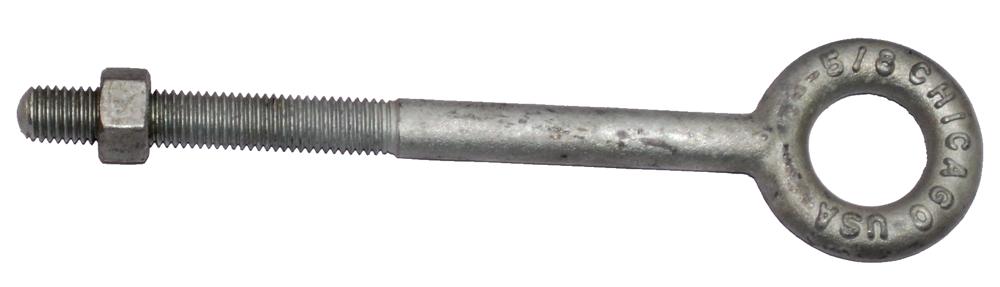

Item #4889-588G
4889-588G
Item #4889-588G 		Eye Bolt; Galvanized; 5/8"-11 x 8"; 4" of threads; Fits 4" OD thru 7" OD pole; 3500 lb rating capacity; Includes (1) galvanized nut; MADE in USA 1.28 lbs. $30.50* EA
Item #4889-5812G
4889-5812G
Item #4889-5812G 		Eye Bolt; Galvanized; 5/8"-11 x 12"; 4" of threads; Fits 8" OD thru 11" OD pole; 3500 lb rating capacity; Includes (1) galvanized nut; MADE in USA 1.46 lbs. $39.00* EA
Item #4889-5815G
4889-5815G
Item #4889-5815G 		Eye Bolt; Galvanized; 5/8"-11 x 15"; 6" of threads; Fits 9" OD thru 14" OD pole; 3500 lb rating capacity; Includes (1) galvanized nut; MADE in USA 1.68 lbs. $59.75* EA
Item #4889-5818G
4889-5818G
Item #4889-5818G 		Eye Bolt; Galvanized; 5/8"-11 x 18"; 6" of threads; Fits 12" OD thru 17" OD pole; 3500 lb rating capacity; Includes (1) galvanized nut; MADE in USA 1.95 lbs. $65.00* EA
Item #4889-346G
4889-346G
Item #4889-346G 		Eye Bolt; Galvanized; 3/4"-10 x 6"; 3" of threads; Fits 3" OD thru 5" OD pole; 5200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 1.60 lbs. $29.50* EA
Item #4889-348G
4889-348G
Item #4889-348G 		Eye Bolt; Galvanized; 3/4"-10 x 8"; 4" of threads; Fits 4" OD thru 7" OD pole; 5200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 1.80 lbs. $46.25* EA
Item #4889-3410G
4889-3410G
Item #4889-3410G 		Eye Bolt; Galvanized; 3/4"-10 x 10"; 4" of threads; Fits 6" OD thru 9" OD pole; 5200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 2 lbs. $56.00* EA
Item #4889-3412G
4889-3412G
Item #4889-3412G 		Eye Bolt; Galvanized; 3/4"-10 x 12"; 4" of threads; Fits 8" OD thru 11"OD pole; 5200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 2.33 lbs. $51.25* EA
Item #4889-3415G
4889-3415G
Item #4889-3415G 		Eye Bolt; Galvanized; 3/4"-10 x 15"; 6" of threads; Fits 9" OD thru 14" OD pole; 5200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 2.54 lbs. $66.25* EA
Item #4889-3418G
4889-3418G
Item #4889-3418G 		Eye Bolt; Galvanized; 3/4"-10 x 18"; 6" of threads; Fits 12" OD thru 17" OD pole; 5200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 2.90 lbs. $75.75* EA
Item #4889-3424G
4889-3424G
Item #4889-3424G 		Eye Bolt; Galvanized; 3/4"-10 x 24"; 6" of threads; Fits 18" OD thru 23" OD pole; 5200 lb rating capacity; Includes (1) galvanized nut; MADE in USA 3.69 lbs. $103.50* EA
Item #4888-12-112HDG
4888-12-112HDG
Item #4888-12-112HDG 		Machine Eye Bolt; 1/2" x 1-1/2"; Hot-dipped galvanized; Fully threaded; With shoulder 0.38 lbs. $10.25* EA
Item #9028-1
9028-1
Item #9028-1 		1/4" x 4" Galvanized Eyebolt with 2-1/2" of Threads includes 1/4" Stainless Hex Nut 0 lbs. $2.99* EA

* Pricing subject to change on this item

**Product received may vary from photo
