Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Conductor  >  Conductor - Class I  >  Class I Conductors

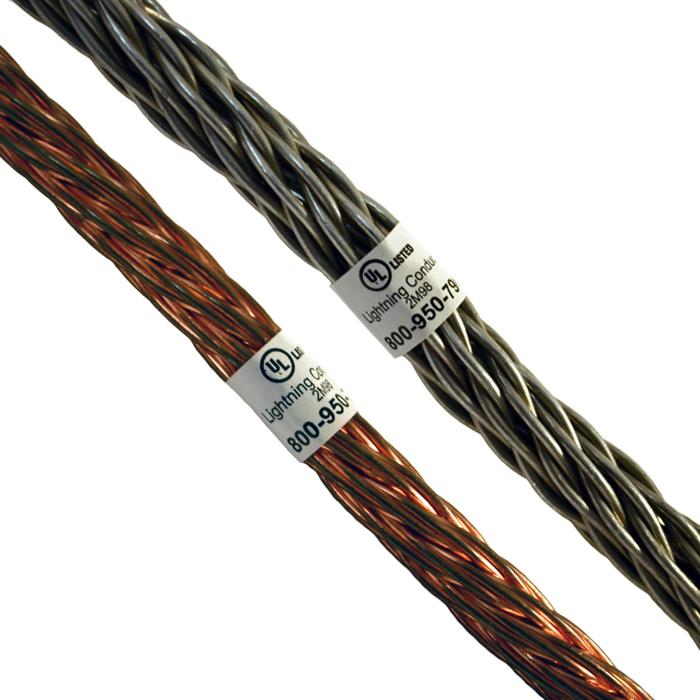

allG offers Class I Conductors which are stranded to increase the surface area to ensure the electrical charge from lightning can travel safely and directly to the ground. These braided conductors are UL Listed and can withstand the electrical charge without deteriorating, making them perfect for your lightning protection systems. The stranding allows an increase in surface area without adding weight to the wire, making them easy to install and keeps costs to a minimum.

See Also

Image Item Description Weight Price Unit Qty
Item #129-500
129-500
Item #129-500 		Class I Lightning Protection Conductor; Copper; 29-strand; 17 gauge; Braided; 59,450 circular mils, 3/8" diameter; 192lbs/1000'; UL Listed; Sold on 500' spools 0.20 lbs. $3.60* FT

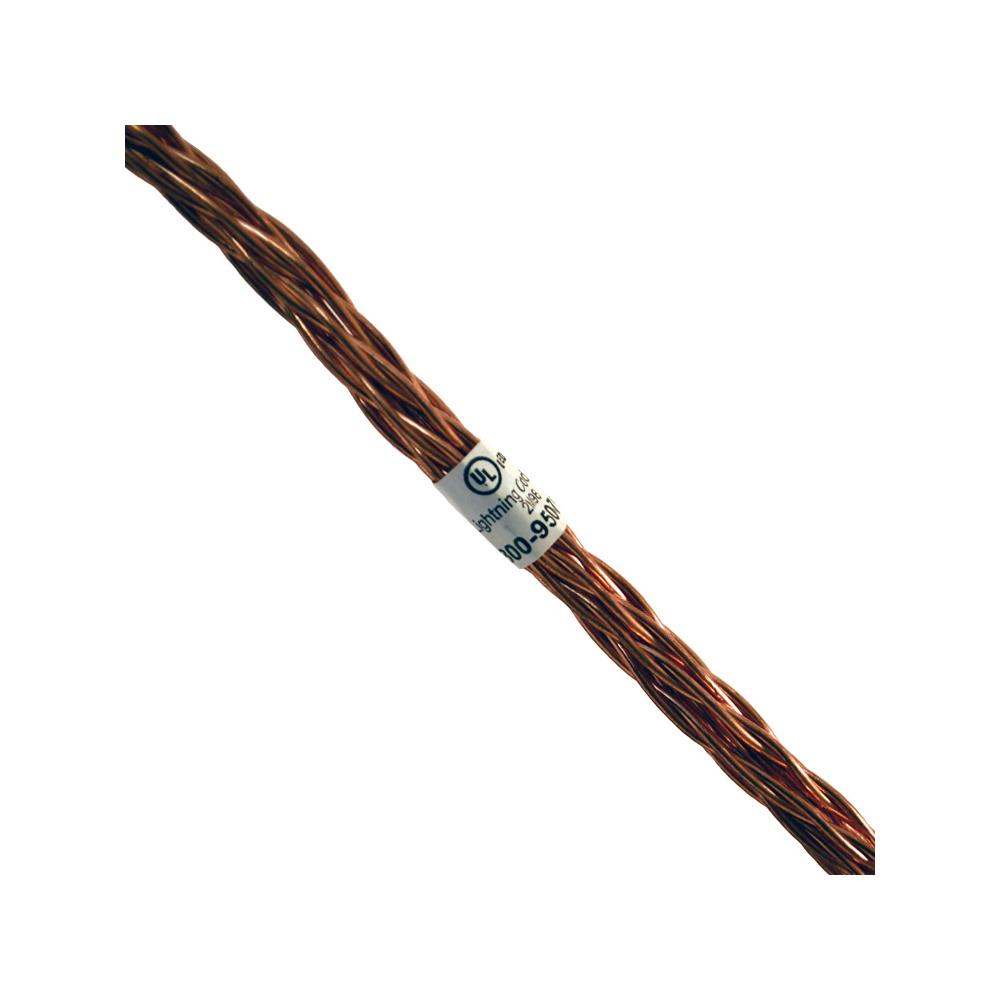

Item #130-500
130-500
Item #130-500 		Class I Lightning Protection Conductor; Copper; 30-strand; 17 gauge; Braided; 61,400 circular mils, 7/16" diameter; 188lbs/1000'; UL Listed; Sold on 500' spools 0.20 lbs. $3.20* FT

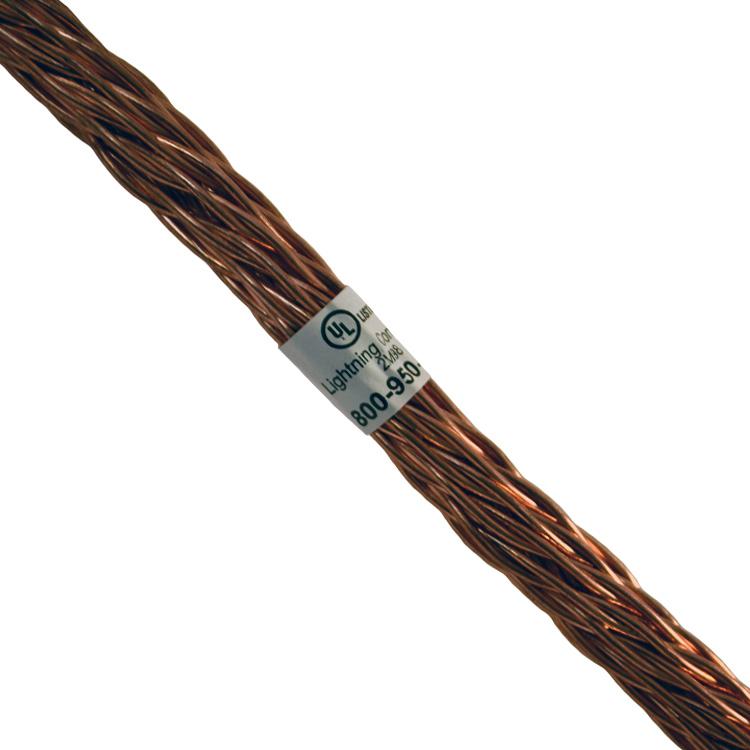

Item #132-500
132-500
Item #132-500 		Class I Lightning Protection Conductor; Copper; 32-strand; 17 gauge; Braided; 65,500 circular mils, 7/16" diameter; 201lbs/1000'; UL Listed; Sold on 500' spools 0.22 lbs. $3.44* FT
Item #134-400
134-400
Item #134-400 		Class I Lightning Protection Conductor; Copper; 34-strand; 17 gauge; Braided; 69,600 circular mils, 7/16" diameter; 214lbs/1000'; UL Listed; Sold on 400' spools 0.22 lbs. $3.68* FT
Item #136-400
136-400
Item #136-400 		Class I Lightning Protection Conductor; Copper; 36-strand; 17 gauge; Braided; 73,700 circular mils, 7/16" diameter; 227lbs/1000'; UL Listed; Sold on 400' spools 0.23 lbs. $3.92* FT

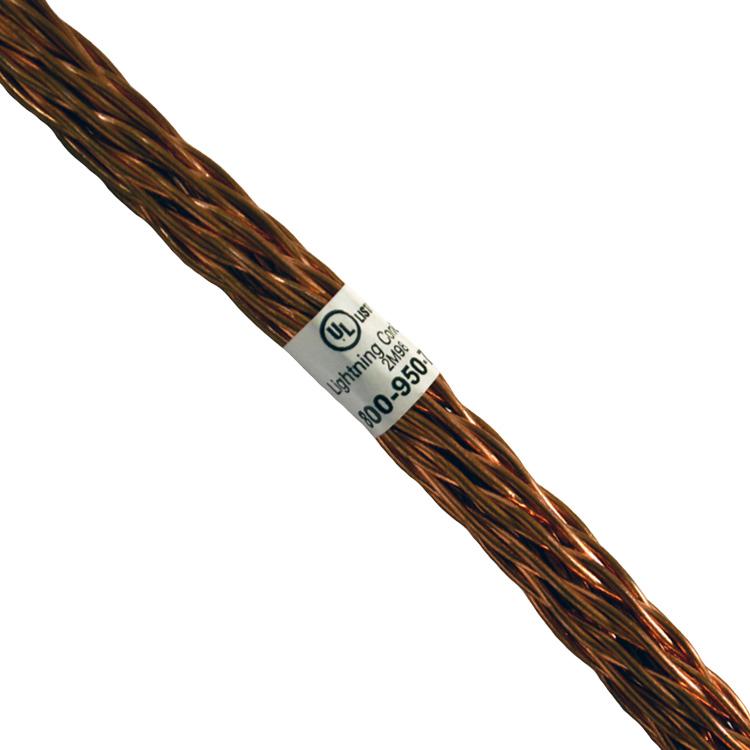

Item #168-400
168-400
Item #168-400
Class I Lightning Protection Conductor; Copper; 29-strand; 16 gauge; Rope lay; 72,500 circular mils; 5/16" diameter; 203lbs/1000'; UL Listed; Sold on ... (see more)
 0.21 lbs. $3.66* FT

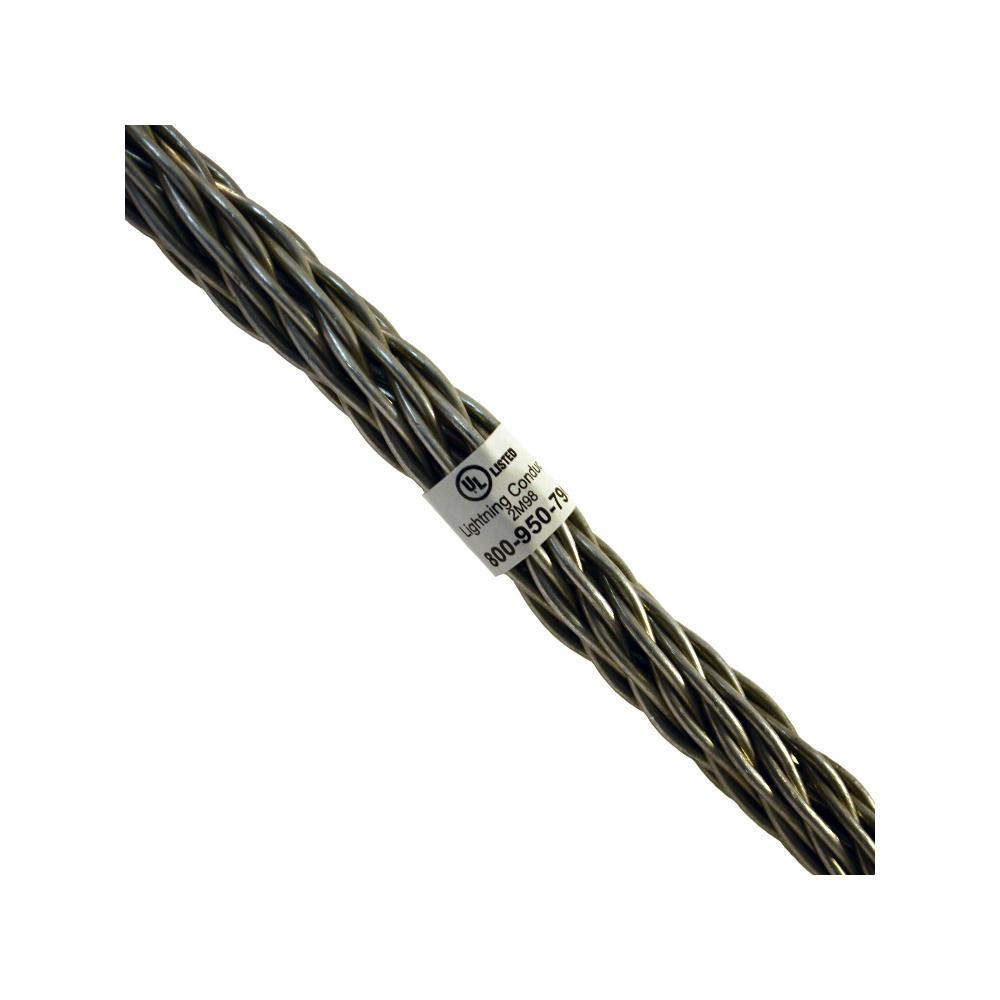

Item #A119-500
A119-500
Item #A119-500 		Class I Lightning Protection Conductor; Aluminum; 19-strand; 13 gauge; 105,600 circular mils; 0.373 diameter; 99 lbs/1000'; UL Listed; Sold on 500' spools 0.10 lbs. $1.40* FT

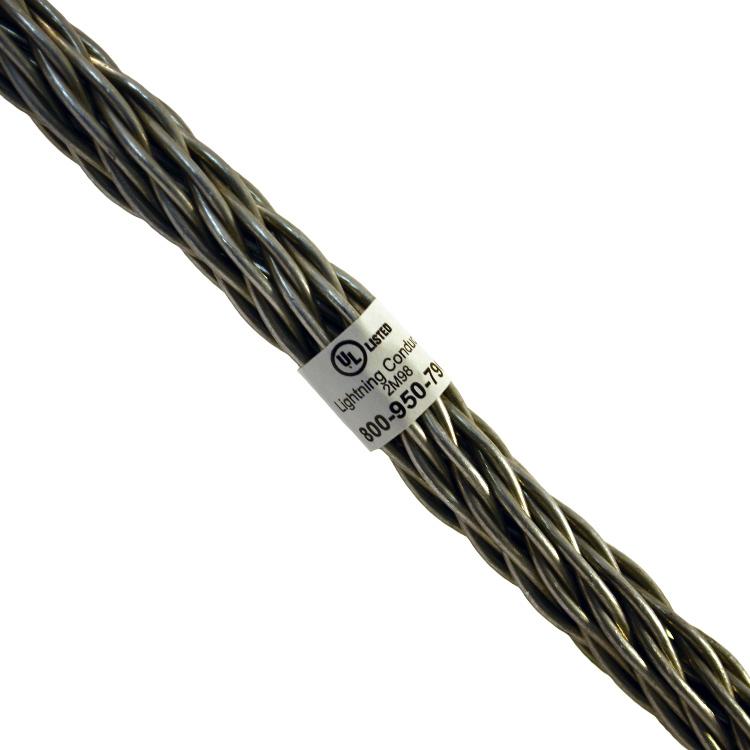

Item #A124-500
A124-500
Item #A124-500 		Class I Lightning Protection Conductor; Aluminum; 24-strand; 14 gauge; 98,600 circular mils; 0.50 diameter; 95 lbs/1000'; UL Listed; Sold on 500' spools 0.10 lbs. $1.38* FT
Item #A126-500
A126-500
Item #A126-500 		Class I Lightning Protection Conductor; Aluminum; 26-strand; 14 gauge; 106,800 circular mils; 0.50 diameter; 102 lbs/1000'; UL Listed; Sold on 500' spools 0.11 lbs. $1.50* FT

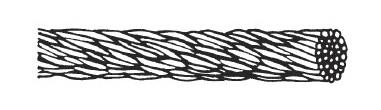

Item #A128-500
A128-500
Item #A128-500 		Class I Lightning Protection Conductor; Aluminum; 28-strand; 14 gauge; 115,000 circular mils; 9/16" diameter; 112 lbs/1000'; UL Listed; Sold on 500' spools 0.12 lbs. $1.60* FT

* Pricing subject to change on this item

**Product received may vary from photo
