Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Conductor  >  Conductor - Bonding  >  Secondary Bonding Conductors - Stranded

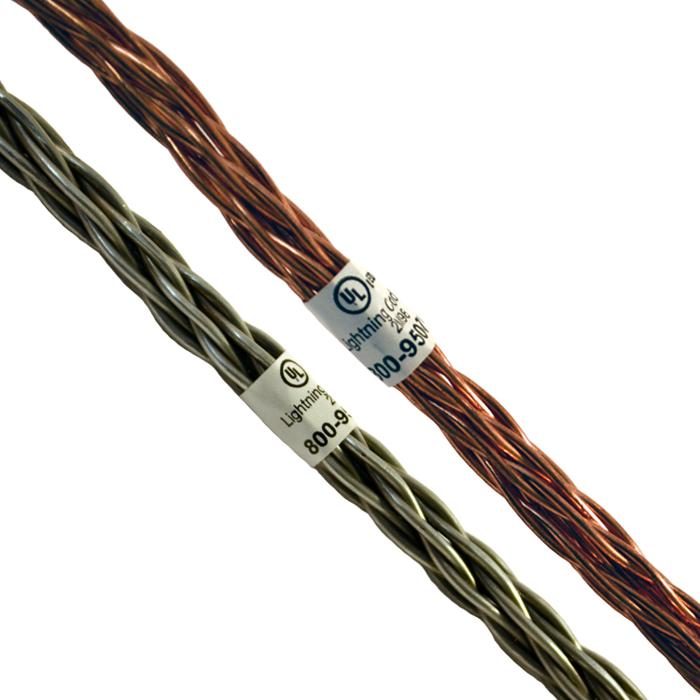

allG offers Secondary Bonding Conductors which are stranded to increase surface area to ensure the electrical charge from lightning can travel safely to the interconnection of lightning protection components. These braided conductors are UL Listed and increase the surface area without adding weight to the wire, making them easy to install and keeps costs to a minimum.

See Also

Image Item Description Weight Price Unit Qty
Item #14-100
14-100

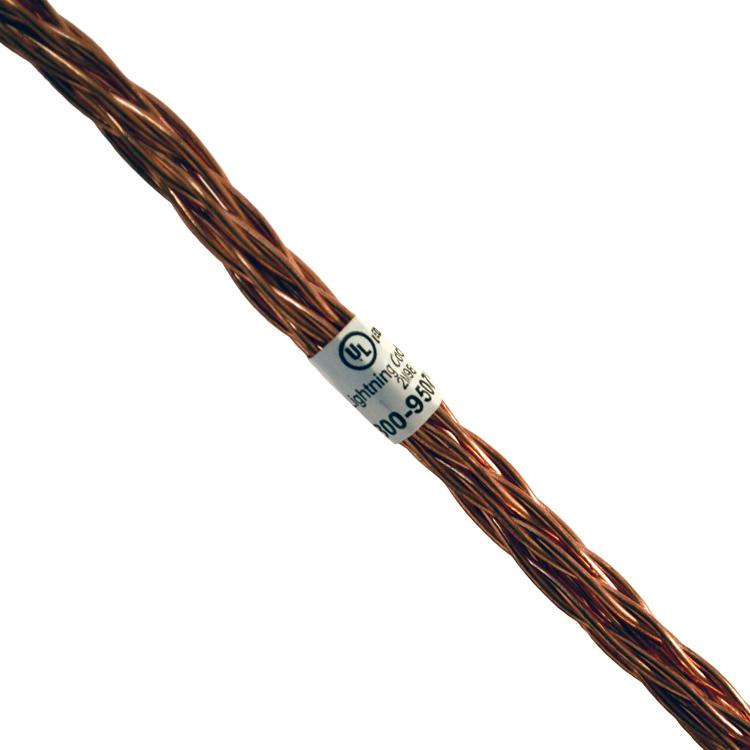

Item #14-100 		Secondary Bond Conductor; Copper; 14-strand; 17 gauge; smooth weave; 28,600 circular mils; 1/4" diameter; 90lbs/1000'; UL Listed; Sold on 100' coils 0.09 lbs. $1.90* FT
Item #14-500
14-500

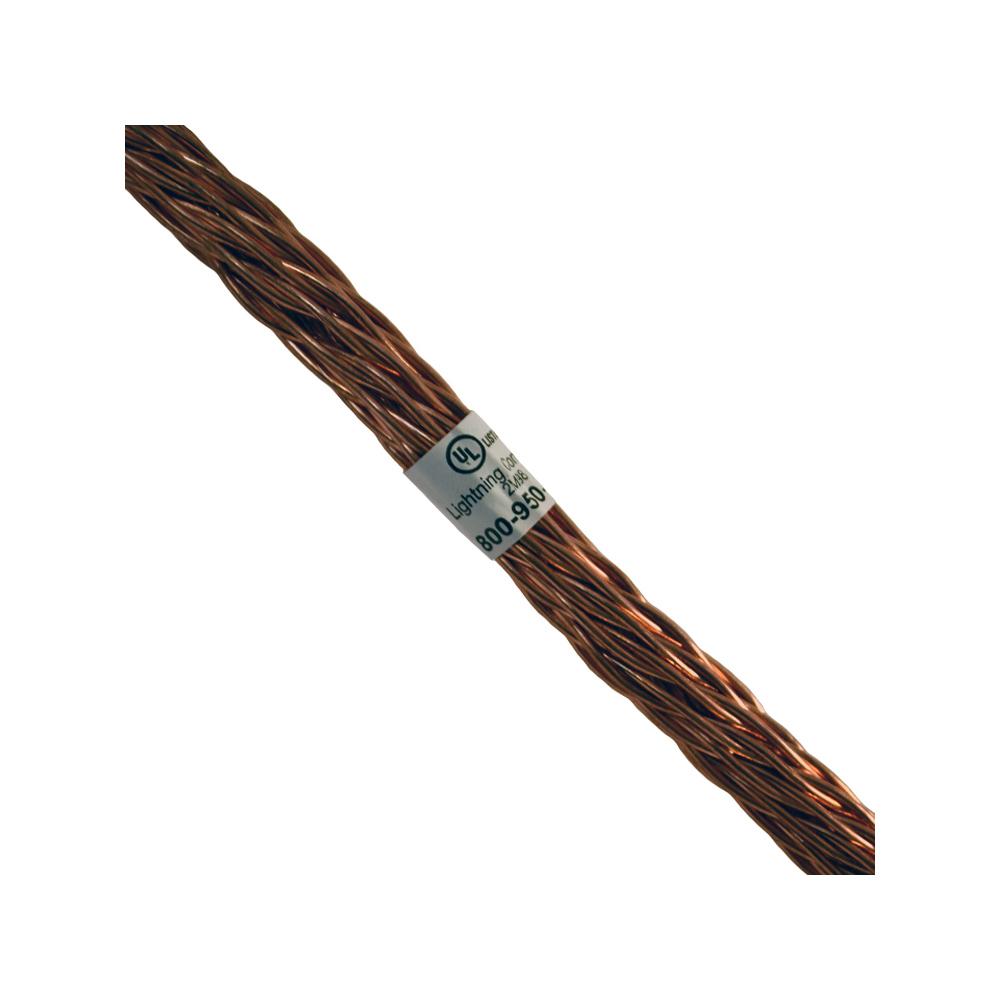

Item #14-500 		Secondary Bond Conductor; Copper; 14-strand; 17 gauge; smooth weave; 28,600 circular mils; 1/4" diameter; 90lbs/1000'; UL Listed; Sold on 500' spool 0.10 lbs. $1.80* EA
Item #A14-100
A14-100

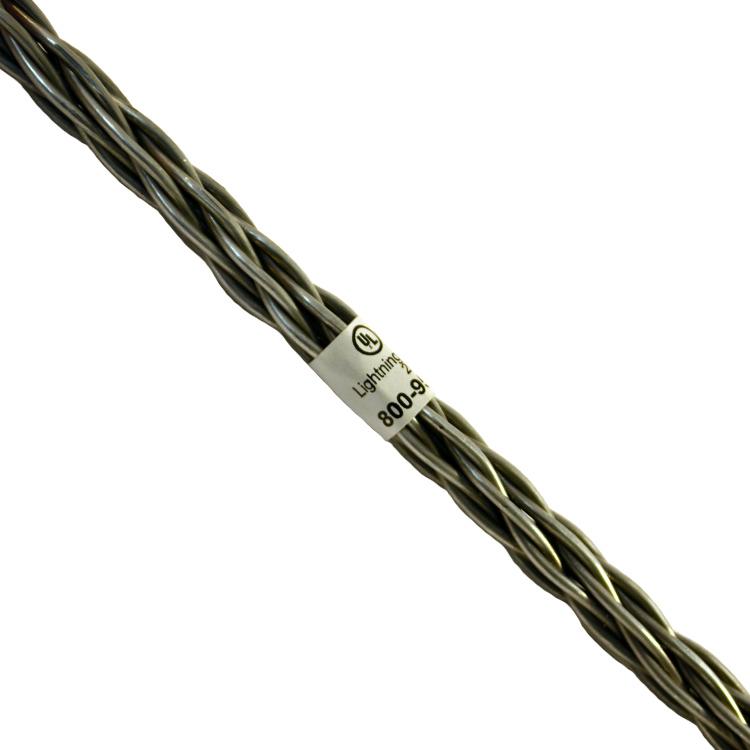

Item #A14-100 		Secondary Bonding Conductor; Aluminum; 11-strand; 14 gauge; smooth weave; 45,000 circular mils; 1/4" diameter; 47lbs/1000'; UL Listed; Sold on 100' coils 0.05 lbs. $0.92* FT
Item #A14-500
A14-500

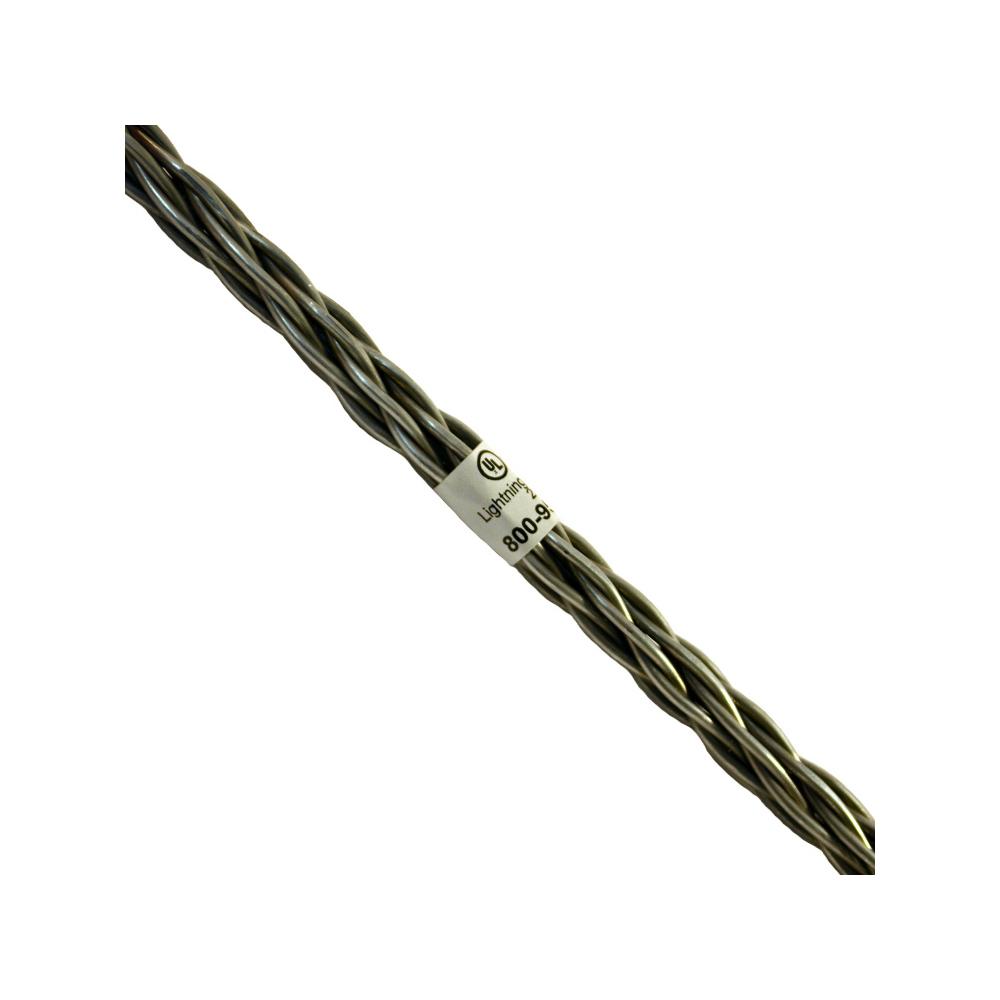

Item #A14-500 		Secondary Bonding Conductor; Aluminum; 11-strand; 14 gauge; smooth weave; 45,000 circular mils; 1/4" diameter; 47lbs/1000'; UL Listed; Sold on 500' spool 0.05 lbs. $0.84* EA

* Pricing subject to change on this item

**Product received may vary from photo
