Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Connectors - Class II Bolt Typ...  >  Connectors - Parallel - Without Hardware

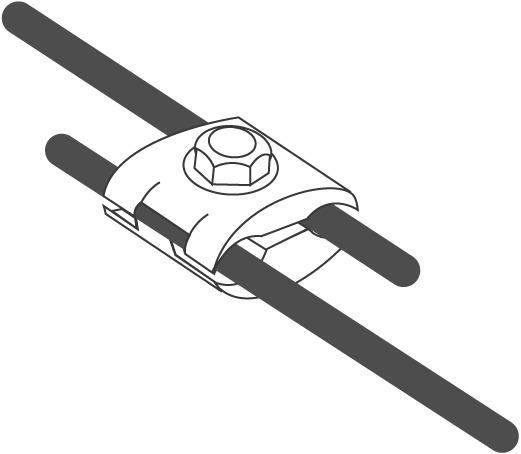

allG offers Parallel Thru Roof Connectors for attaching conductor-to-thru roof. The connector provides 1-1/2" of contact. The 900-2HD and A900-2HD has built in 1/2" nut on the bottom casting to allow five threads of contact with the thru roof.

See Also

Image Item Description Weight Price Unit Qty

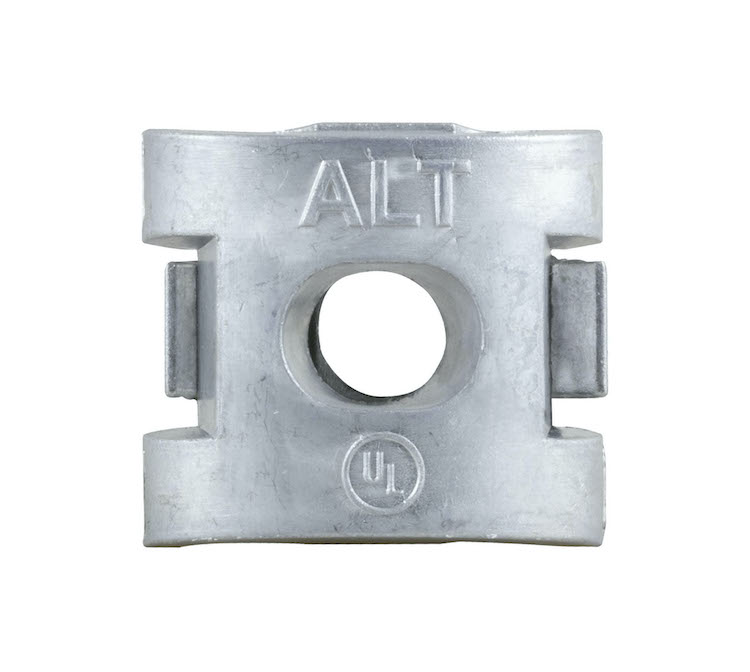

Item #900-2
900-2
Item #900-2 		Robbins Parallel Thru Roof Connector; Bronze; no hardware; Drilled 17/32"; Fits Class I and Class II conductors thru .563" dimeter; UL Listed UL Listed 0.30 lbs. $14.60* EA
Item #900-2HD
900-2HD
Item #900-2HD
Robbins Parallel Thru Roof Connector; Bronze; bottom casting has built in 1/2" nut to allow 5 threads of contact; includes stainless 1/2" nut and 1/2"... (see more)
 0.39 lbs. $15.40* EA

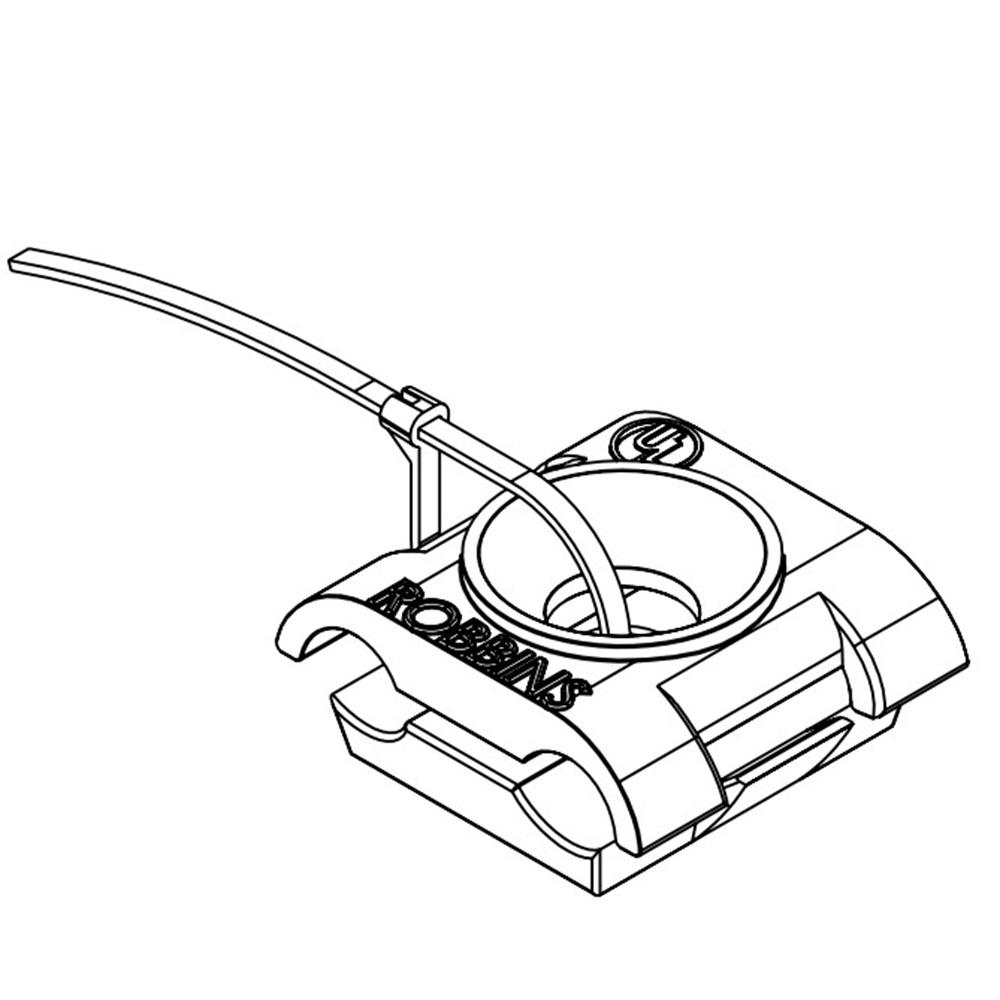

Item #900-2T
900-2T
Item #900-2T 		Robbins Parallel Thru Roof Connector; Tinned Bronze; no hardware; Drilled 17/32"; Fits Class I and Class II conductors thru .563" dimeter; UL Listed UL Listed 0.32 lbs. $16.60* EA
Item #900-2HDT
900-2HDT
Item #900-2HDT
Robbins Parallel Thru Roof Connector; Tinned Bronze; bottom casting has built in 1/2" nut to allow 5 threads of contact; includes stainless 1/2" nut a... (see more)
 0 lbs. $17.40* EA

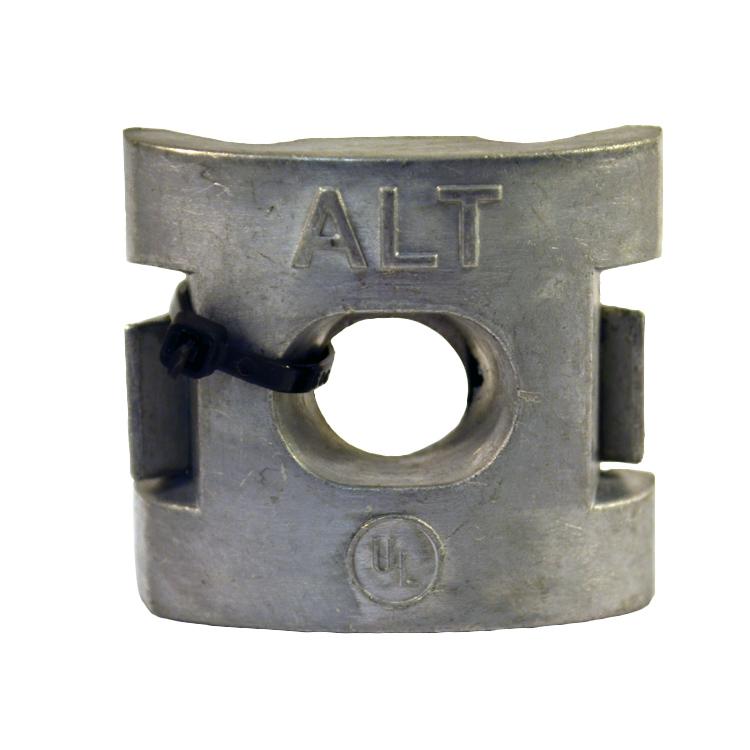

Item #A900-2
A900-2
Item #A900-2 		Parallel Connector; Aluminum; Bolt not included; Drilled 17/32"; Fits conductor sizes 0.292 to 0.562; UL Listed 0.09 lbs. $7.30* EA

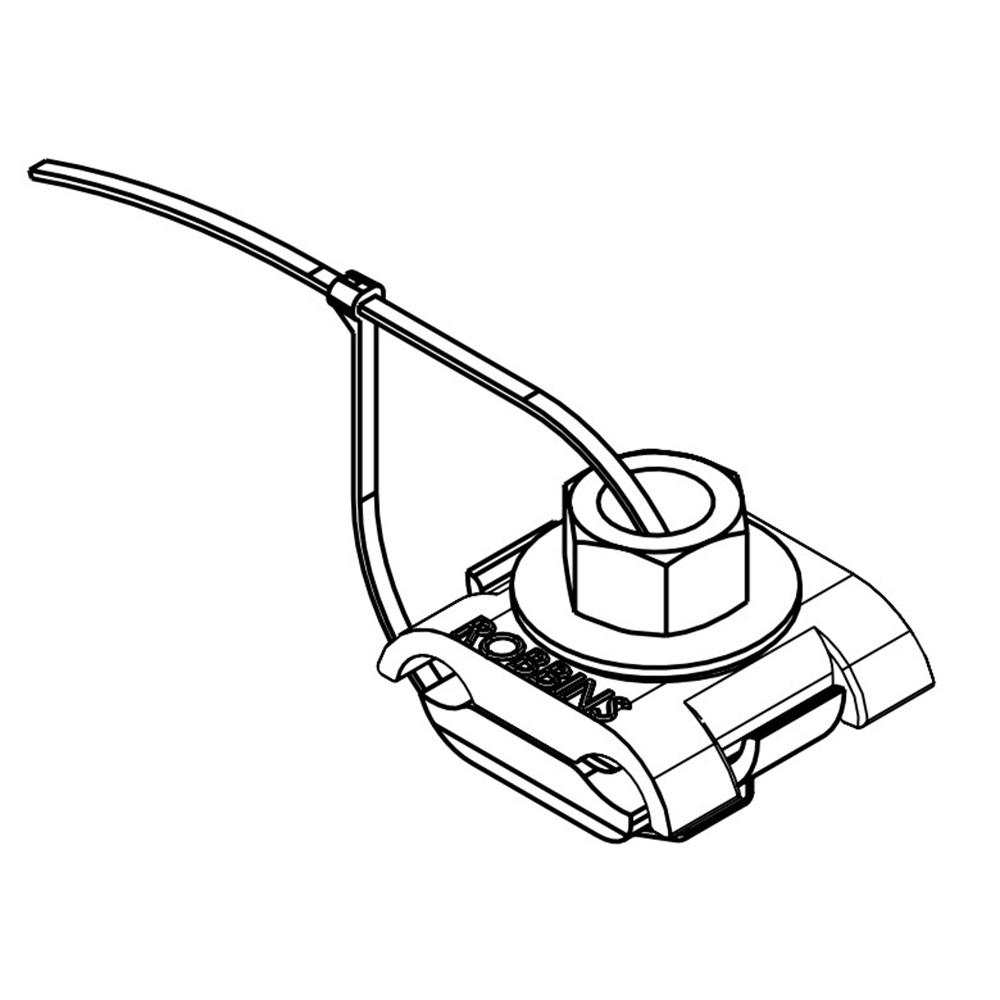

Item #A900-2HD
A900-2HD
Item #A900-2HD
Robbins Parallel Thru Roof Connector; Aluminum; bottom casting has built in 1/2" bottom nut; includes stainless 1/2" nut and 1/2" washer for top secur... (see more)
 0.17 lbs. $8.00* EA

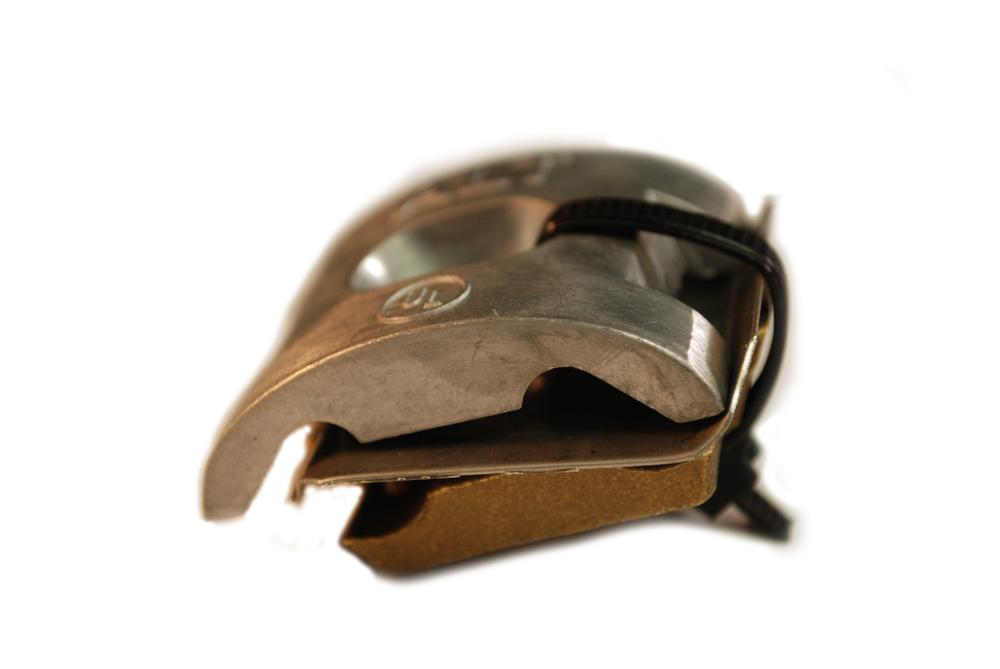

Item #929-5LH-12
929-5LH-12
Item #929-5LH-12 		Robbins Parallel Thru Roof Clamp; Bimetal; No Hardware; Drilled 17/32"; Fits Class I and Class II conductors thru .563" diameter; UL Listed 0.27 lbs. $12.20* EA
Item #900-2HDBM
900-2HDBM
Item #900-2HDBM
Robbins Parallel Thru Roof Connector; Bronze/Aluminum; Bimetal; bottom casting has built in 1/2" nut to allow 5 threads of contact; includes stainless... (see more)
 0 lbs. $13.20* EA

* Pricing subject to change on this item

**Product received may vary from photo
