Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Connectors - Class II Bolt Typ...  >  Connectors - One Bolt Parallel with Countersunk Bolt

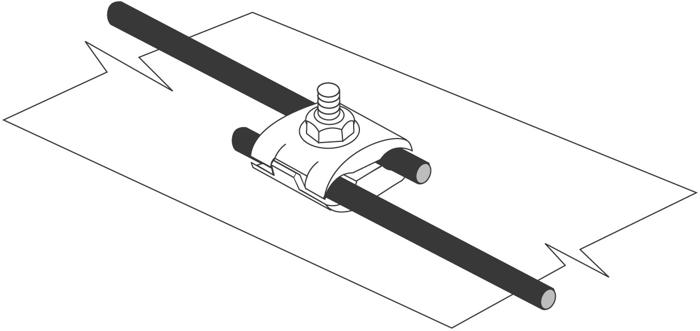

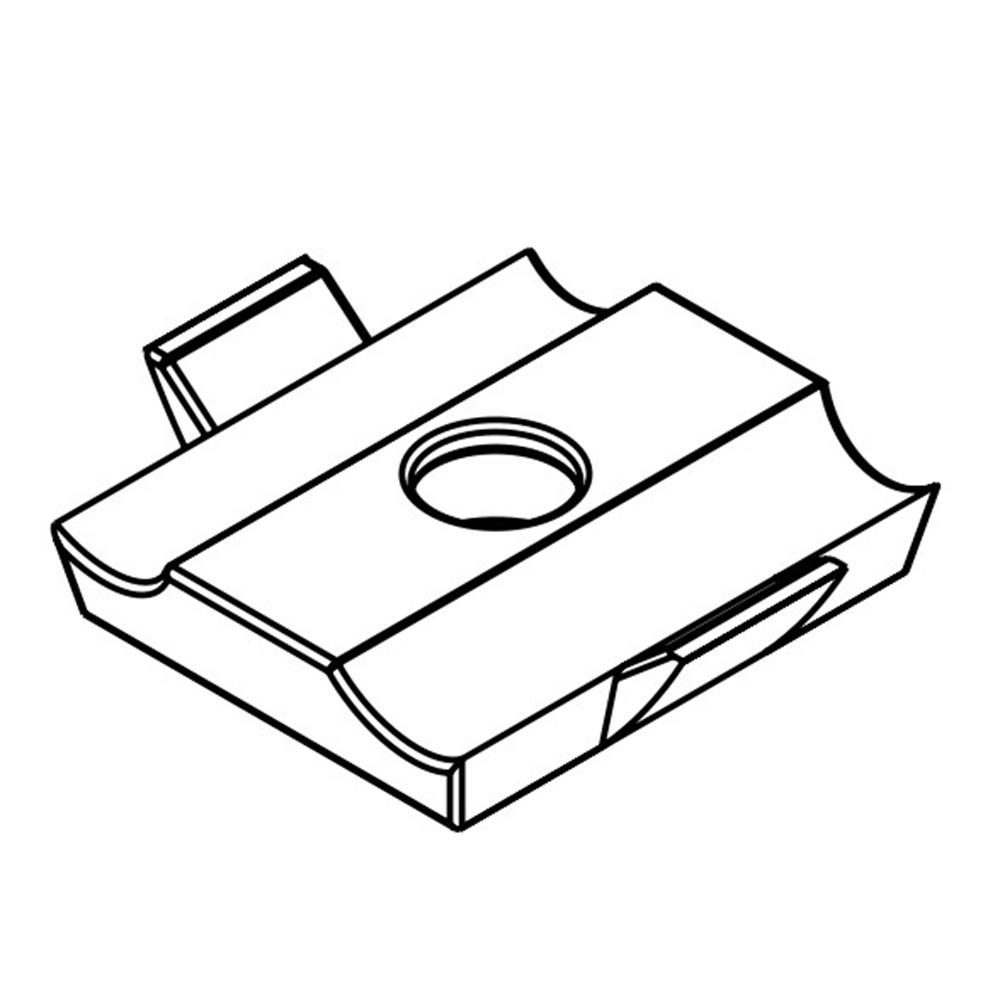

allG offers One-Bolt Parallel Connectors with Countersunk Bolt for attaching conductor-to-conductor or conductor-to-rod. The connector provides 1-1/2" of contact. The bolt head is recessed into the connector to provide a smooth bottom surface.

See Also

Image Item Description Weight Price Unit Qty
Item #902
902

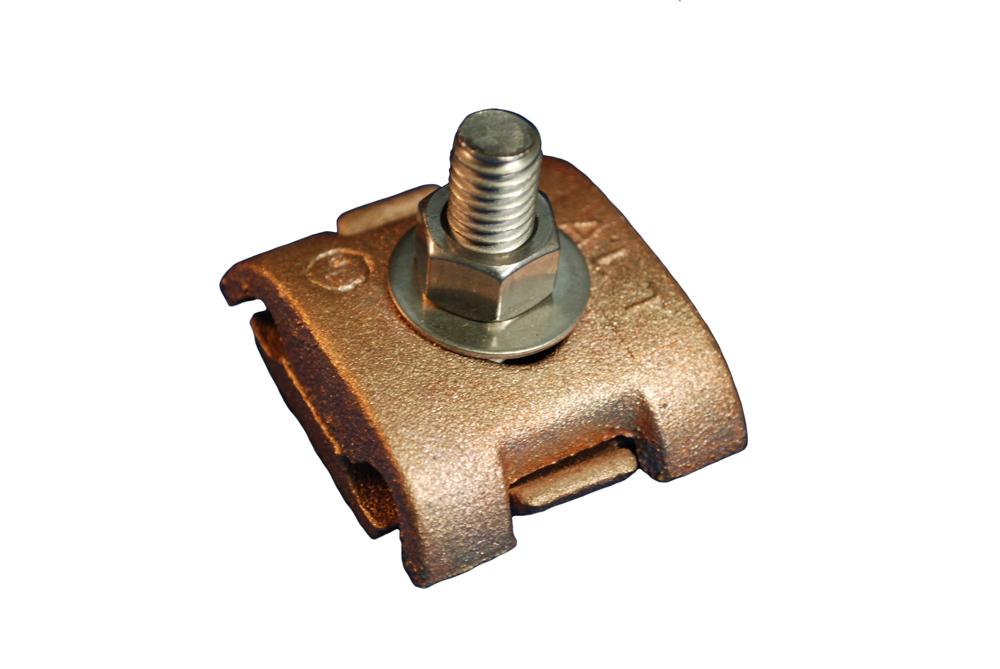

Item #902 		Parallel Connector; Bronze; With countersunk bolt; Fits conductor sizes 0.162 to 0.528; UL Listed 0.35 lbs. $15.00* EA
Item #902T
902T

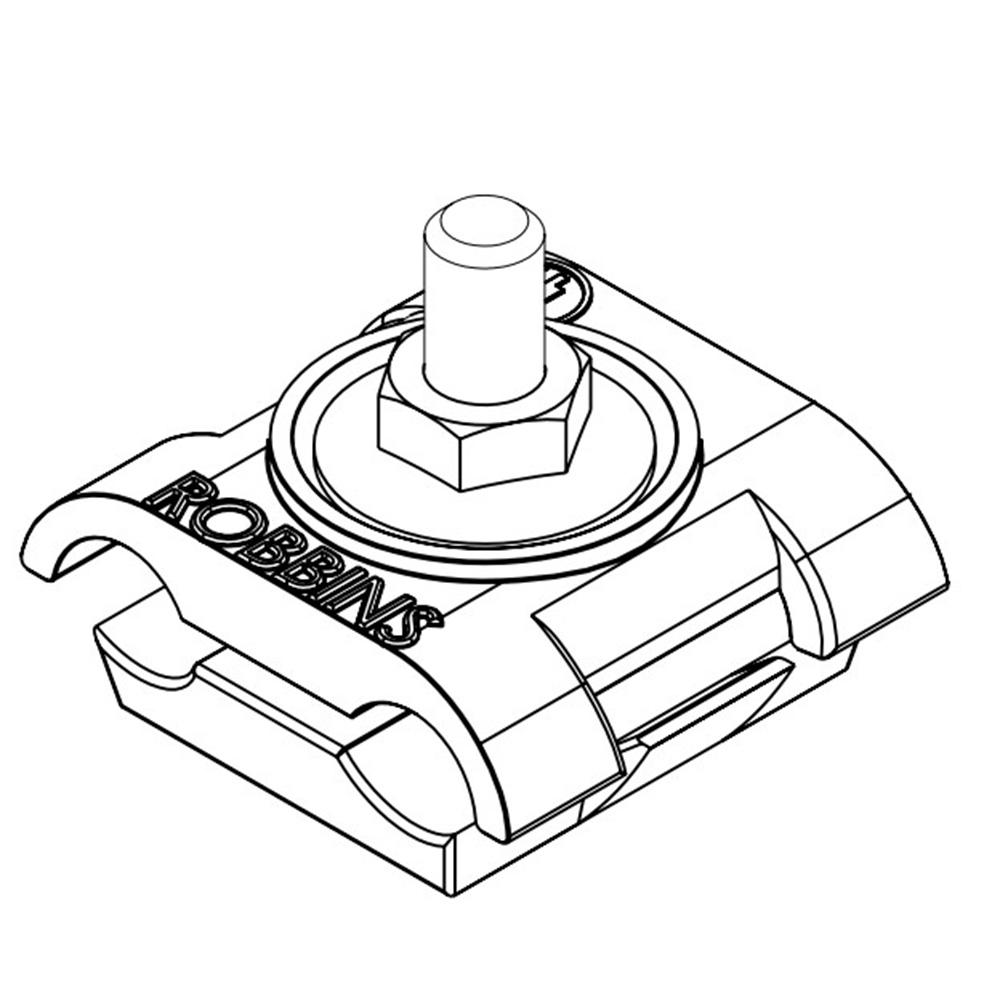

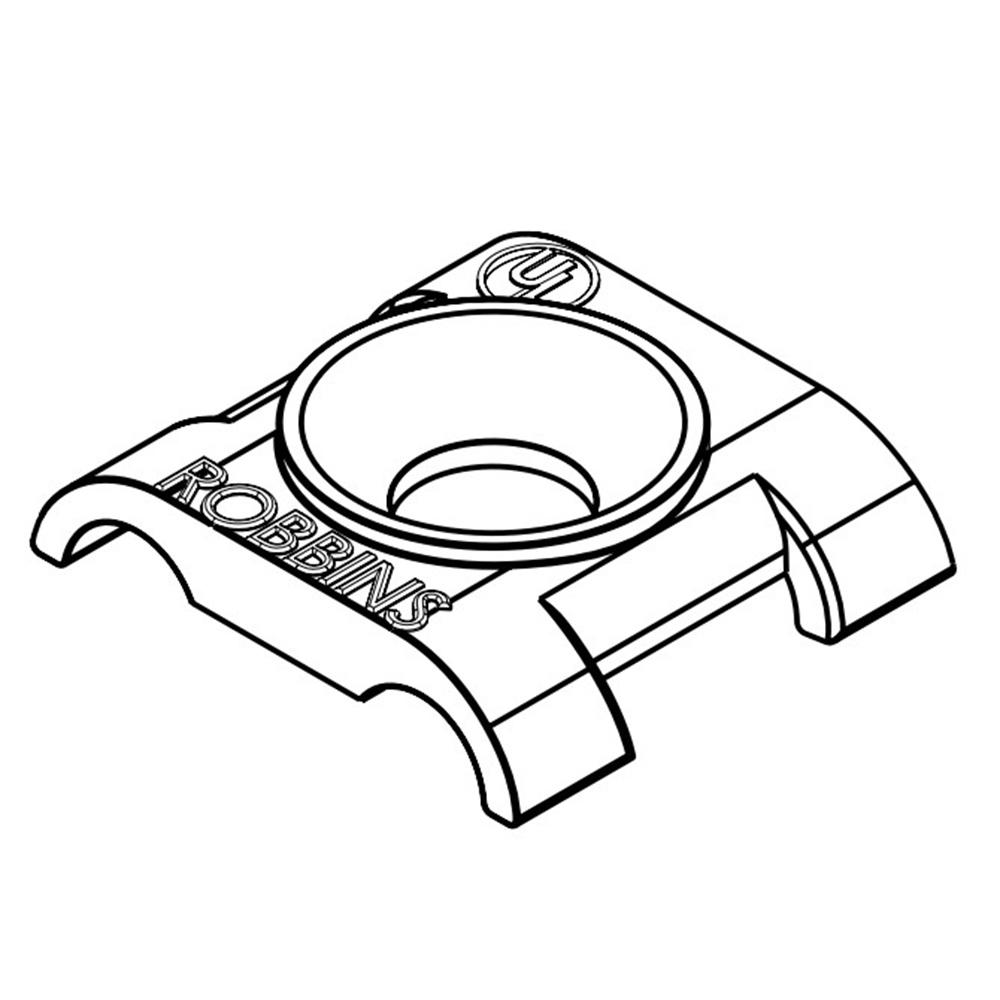

Item #902T 		Parallel Connector; Tinned bronze; With countersunk bolt; Fits conductor sizes 0.162 to 0.528; UL Listed 0.37 lbs. $18.00* EA
Item #A902
A902

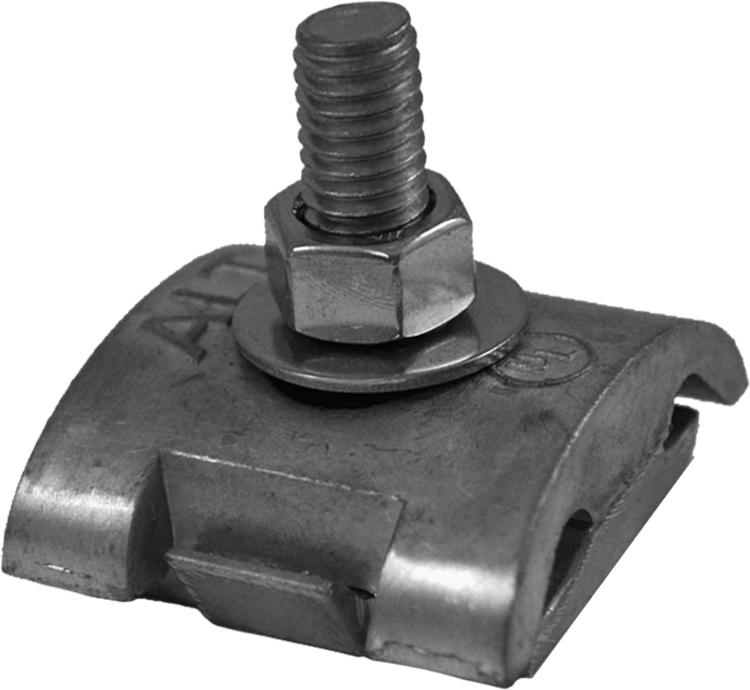

Item #A902 		Parallel Connector; Aluminum Bottom Bolt Parallel Clamp; countersunk bolt; Fits conductor sizes 0.167 to 0.562 UL Listed 0.15 lbs. $8.00* EA
Item #902-316
902-316
Item #902-316 		Parallel Connector; Bronze; With countersunk bolt; Fits conductor sizes 0.162 to 0.528; Includes Grade 316 stainless steel hardware; UL Listed 0.35 lbs. $16.00* EA
Item #A902-316
A902-316
Item #A902-316 		Parallel Connector; Aluminum; With countersunk bolt; Fits conductor sizes 0.167 to 0.562; Includes Grade 316 stainless steel hardware; UL Listed 0.15 lbs. $9.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
