Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Air Terminal Bases - Class II ...  >  Dual Side/Top Mount Bases

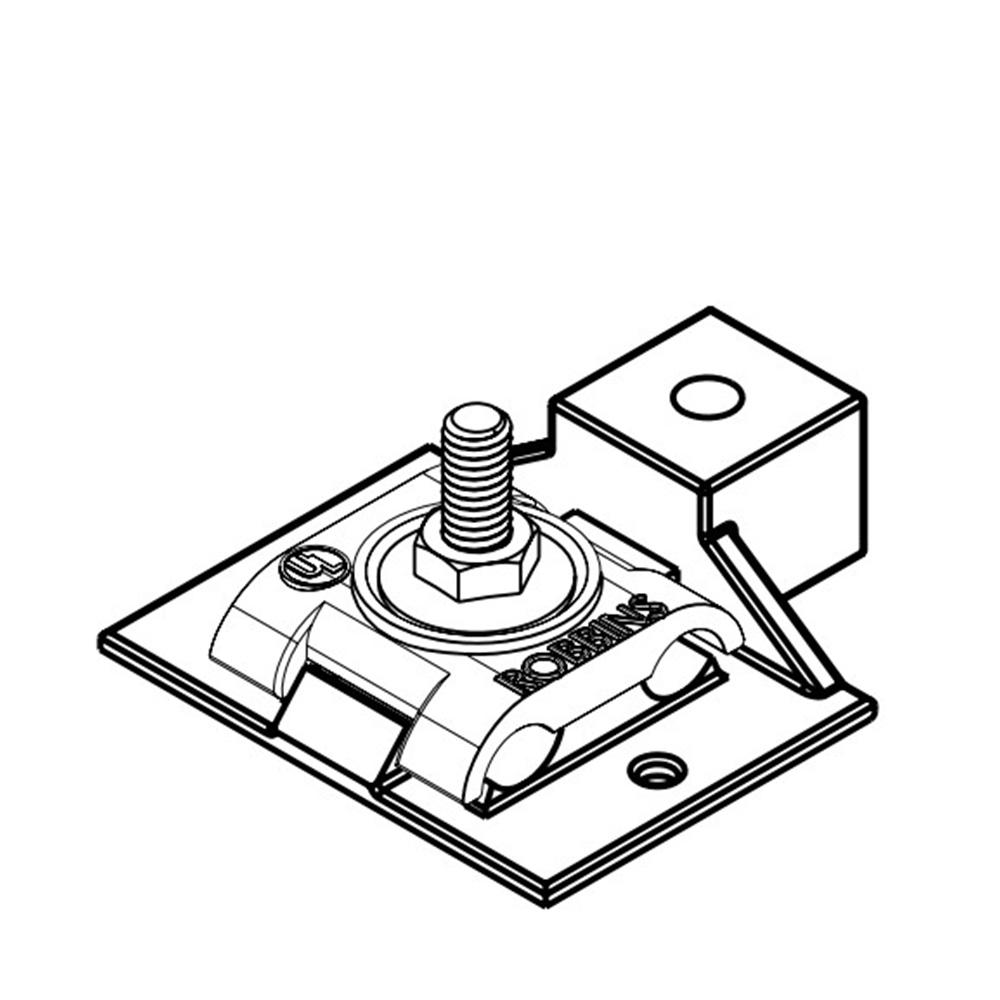

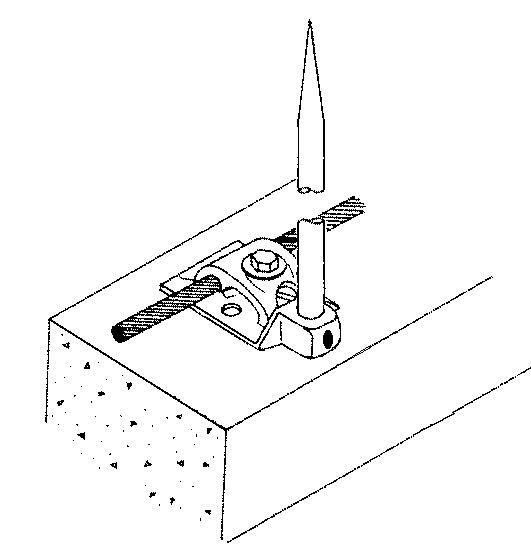

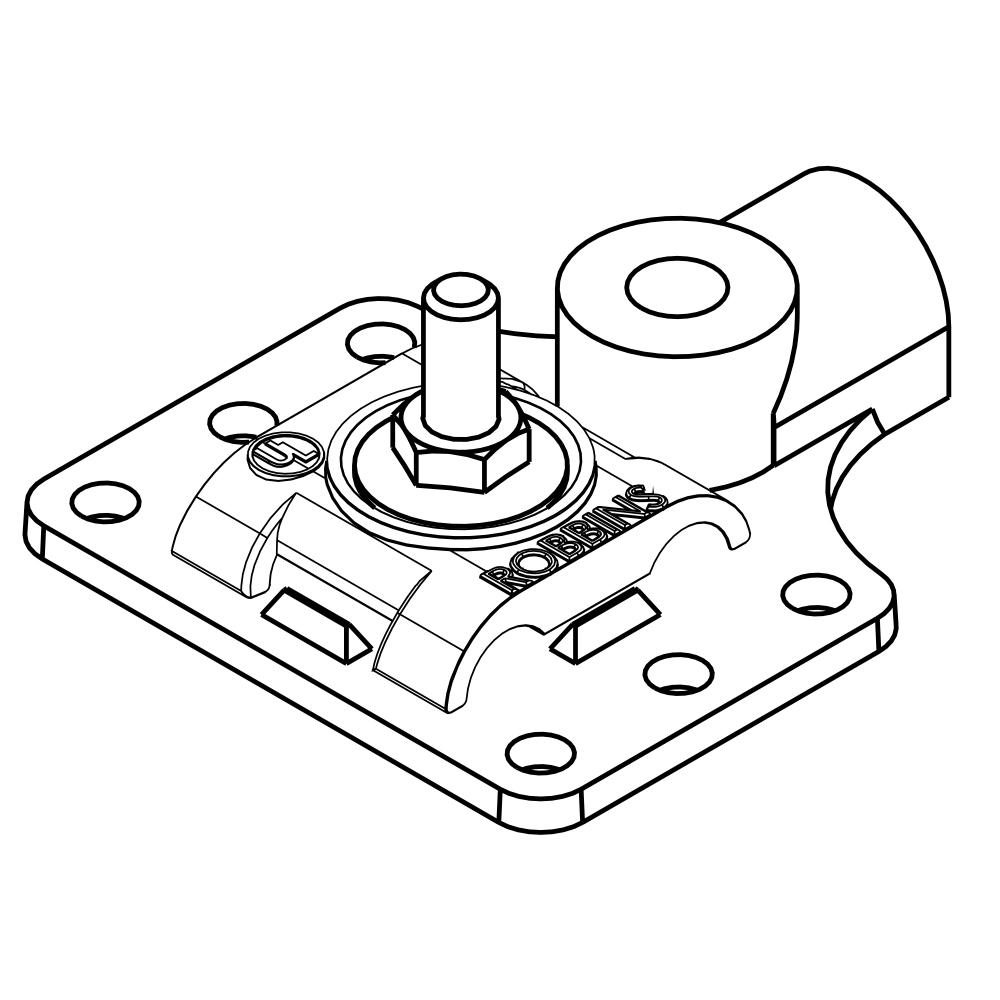

The allG Air Terminal Base is designed for universal side/top mounting on parapets, screen walls or other vertical surfaces. Dual threading allows for top or side mounting. The base has two mounting holes and a bolt type conductor connector and is fabricated in a bronze, tinned bronze, or aluminum for your jobsite requirements.

See Also

Image Item Description Weight Price Unit Qty
Item #817-38
817-38
Item #817-38 		Dual Side/ Top Mount Base; 3/8"; Bronze; Fits conductor sizes 0.292 to 0.528; UL Listed 0.79 lbs. $31.00* EA
Item #817-12
817-12
Item #817-12 		Dual Side/Top Mount Base; 1/2"; Bronze; Fits conductor sizes 0.292 to 0.528; UL Listed 0.75 lbs. $31.00* EA
Item #817-58
817-58
Item #817-58 		Dual Side/ Top Mount Base; 5/8"; Bronze; Fits conductor sizes 0.292 to 0.528; UL Listed 0.83 lbs. $31.00* EA
Item #A817-12
A817-12
Item #A817-12 		Universial Mount Base; Aluminum; 1/2"; Three Mounting Styles: Side, Top or Adhesive; Fits conductor sizes 0.292 to 0.562; UL Listed 0.33 lbs. $13.20* EA
Item #A817-58
A817-58
Item #A817-58 		Universial Mount Base; Aluminum; 5/8"; Three Mounting Styles: Side, Top or Adhesive; Fits conductor sizes 0.292 to 0.562; UL Listed 0.32 lbs. $13.20* EA
Item #817-38T
817-38T
Item #817-38T 		Dual Side/ Top Mount Base; 3/8"; Tinned bronze; Fits conductor sizes 0.292 to 0.528; UL Listed 0.90 lbs. $36.00* EA
Item #817-12T
817-12T
Item #817-12T 		Dual Side/ Top Mount Base; 1/2"; Tinned bronze; Fits conductor sizes 0.292 to 0.528; UL Listed 0.90 lbs. $36.00* EA
Item #817-58T
817-58T
Item #817-58T 		Dual Side/ Top Mount Base; 5/8"; Tinned bronze; Fits conductor sizes 0.292 to 0.528; UL Listed 0.90 lbs. $36.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
