Product Guide  >  Lightning Protection  >  Conventional Lightning Protect...  >  Air Terminals & Accessories  >  Special Application Air Termin...  >  Extra Thread Air Terminals

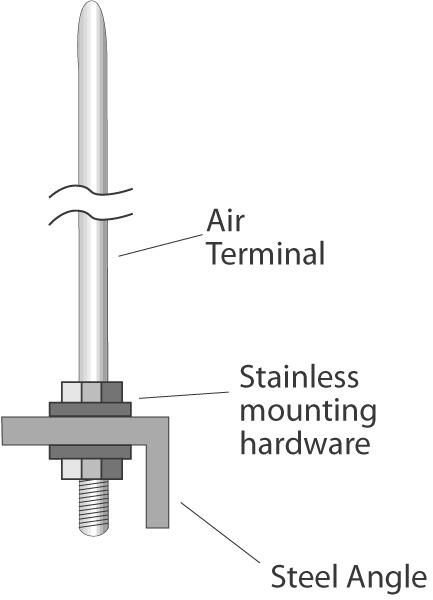

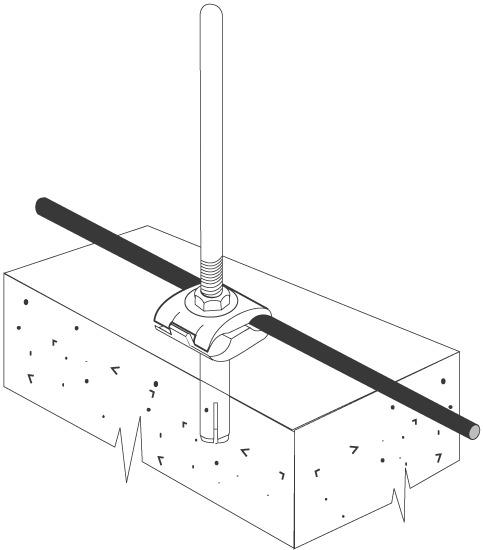

allG offers a high quality, blunt tip, solid copper or aluminum air terminal with 2" of threads. When used with drop-in masonry anchors and a base, these air terminals provide a strong mounting solution. These air terminals are also used on towers when mounted through the tower steel to create the base. Each are UL labeled, come in a variety of lengths, and are available in 3/8", 1/2", or 5/8" diameters.

See Also

Image Item Description Weight Price Unit Qty
Item #312B-2
312B-2
Item #312B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 3/8" x 12" 0.40 lbs. $14.00* EA
Item #318B-2
318B-2
Item #318B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 3/8" x 18" 0.63 lbs. $19.00* EA
Item #324B-2
324B-2
Item #324B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 3/8" x 24" 0.85 lbs. $24.50* EA
Item #412B-2
412B-2
Item #412B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 1/2" x 12" 0.75 lbs. $22.00* EA
Item #418B-2
418B-2
Item #418B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 1/2" x 18" 1.13 lbs. $31.00* EA
Item #424B-2
424B-2
Item #424B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 1/2" x 24" 1.51 lbs. $40.00* EA

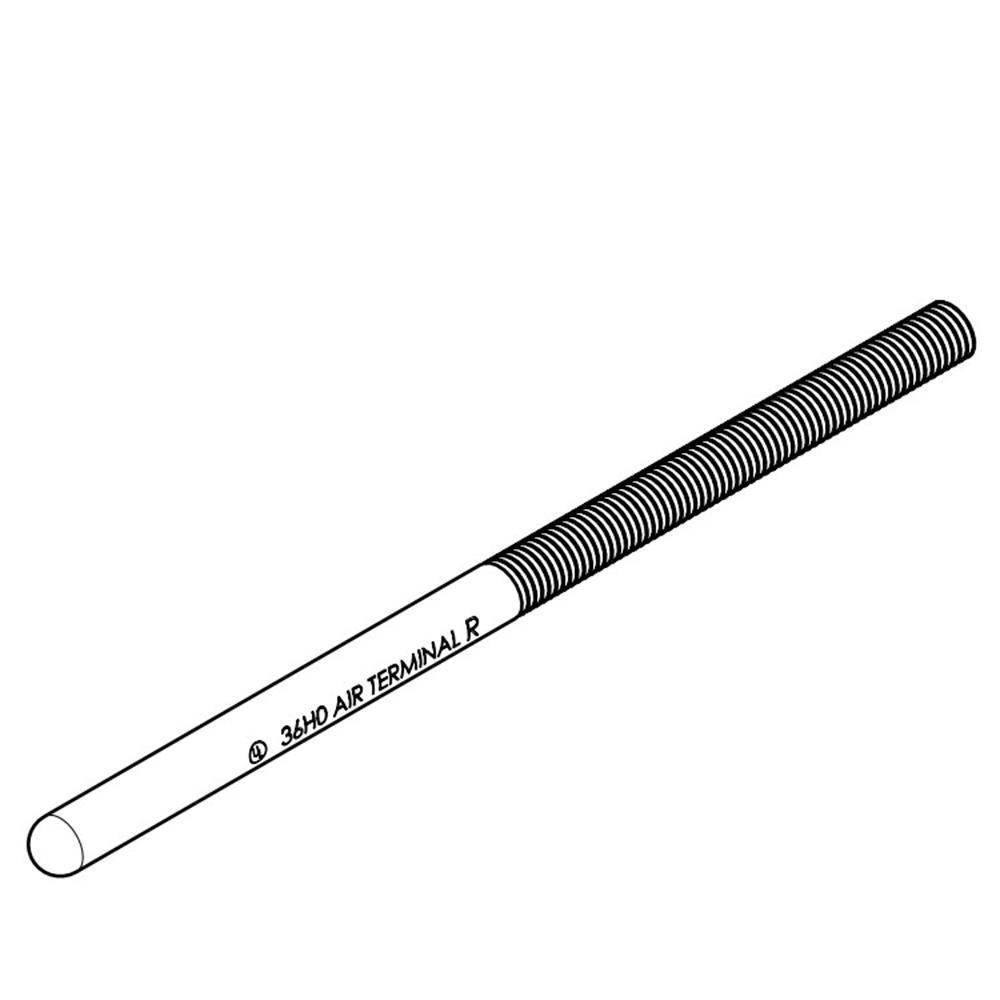

Item #430B-5
430B-5
Item #430B-5 		Air Terminal; Solid copper; Blunt tip; 5" of threads; UL Listed; 1/2" x 30" 1.95 lbs. $0.00* EA

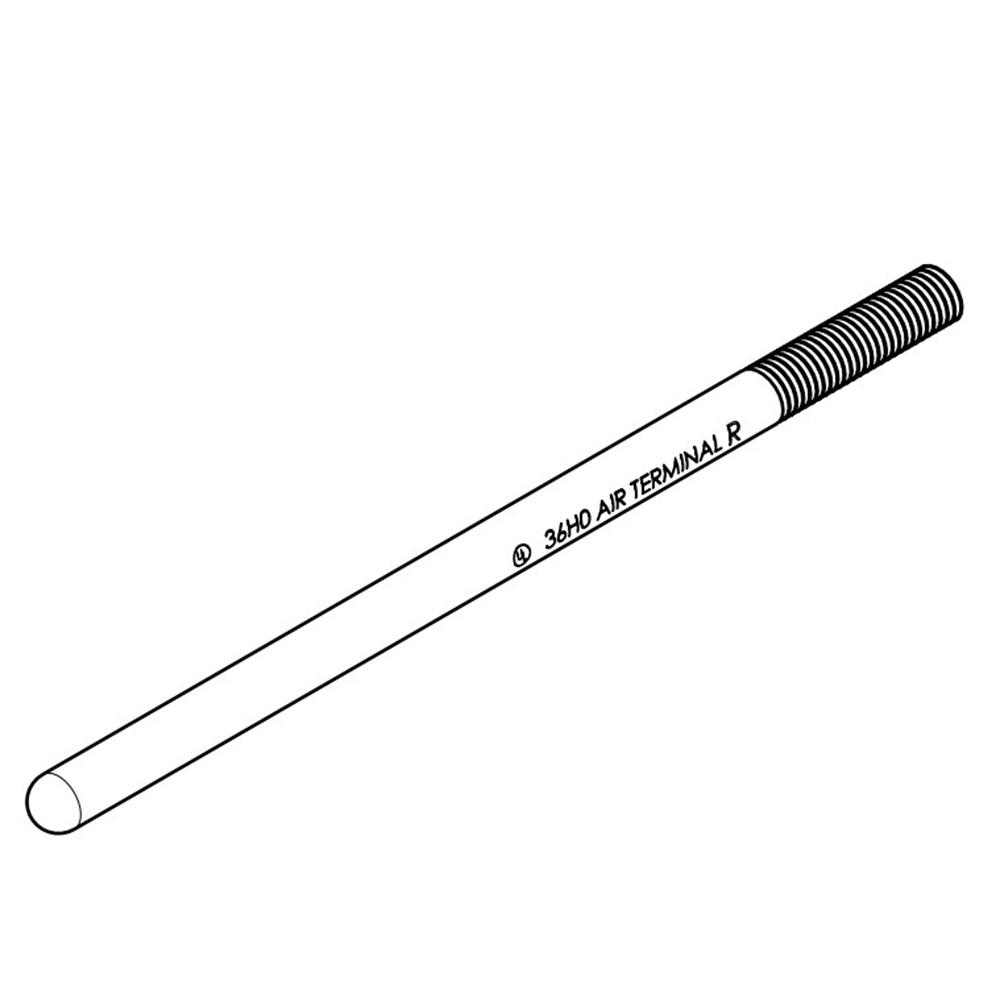

Item #436B-2
436B-2
Item #436B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 1/2" x 36" 0 lbs. $59.00* EA
Item #448B-2
448B-2
Item #448B-2 		Air Terminal; Solid copper; 1/2" x 48"; Taper tip; 2" of threads; UL Listed 2.93 lbs. $77.00* EA

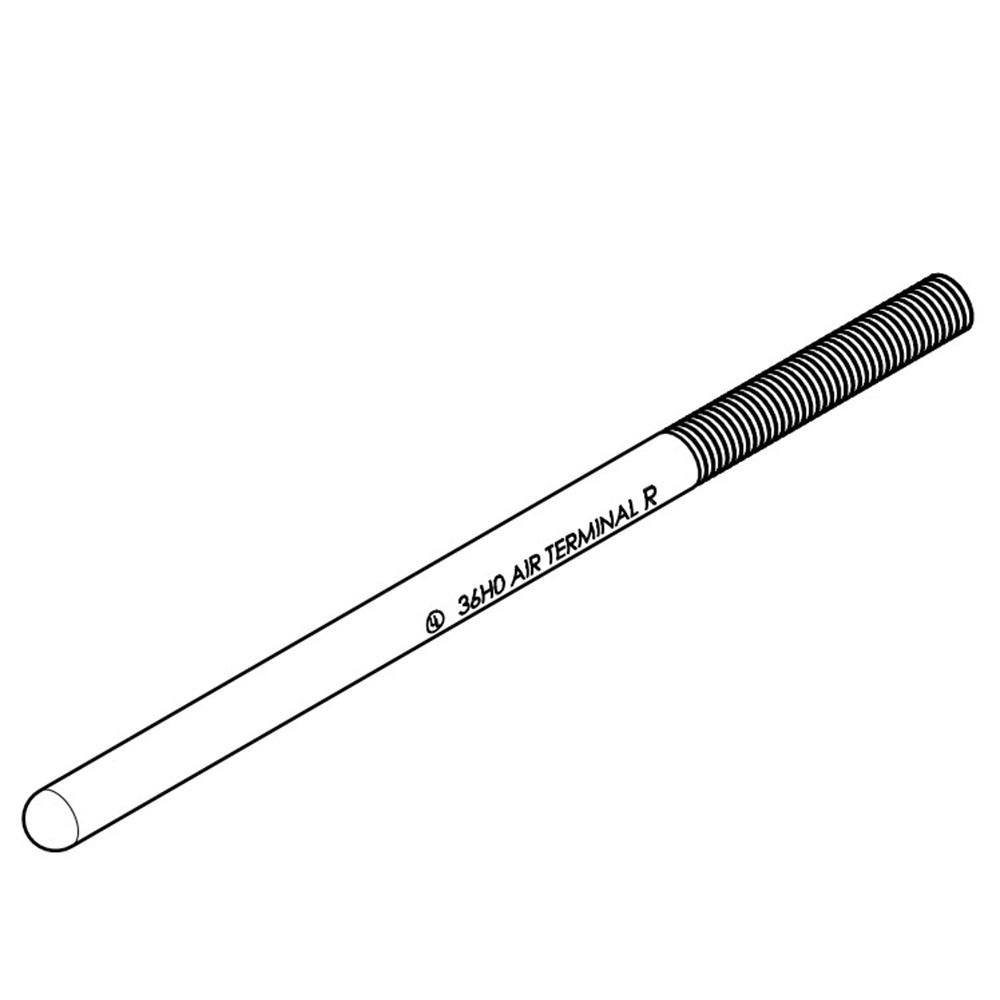

Item #472B-3
472B-3
Item #472B-3 		Air Terminal; Solid copper; Blunt tip; 3" of threads; UL Listed; 1/2" x 72" 4.54 lbs. $123.00* EA

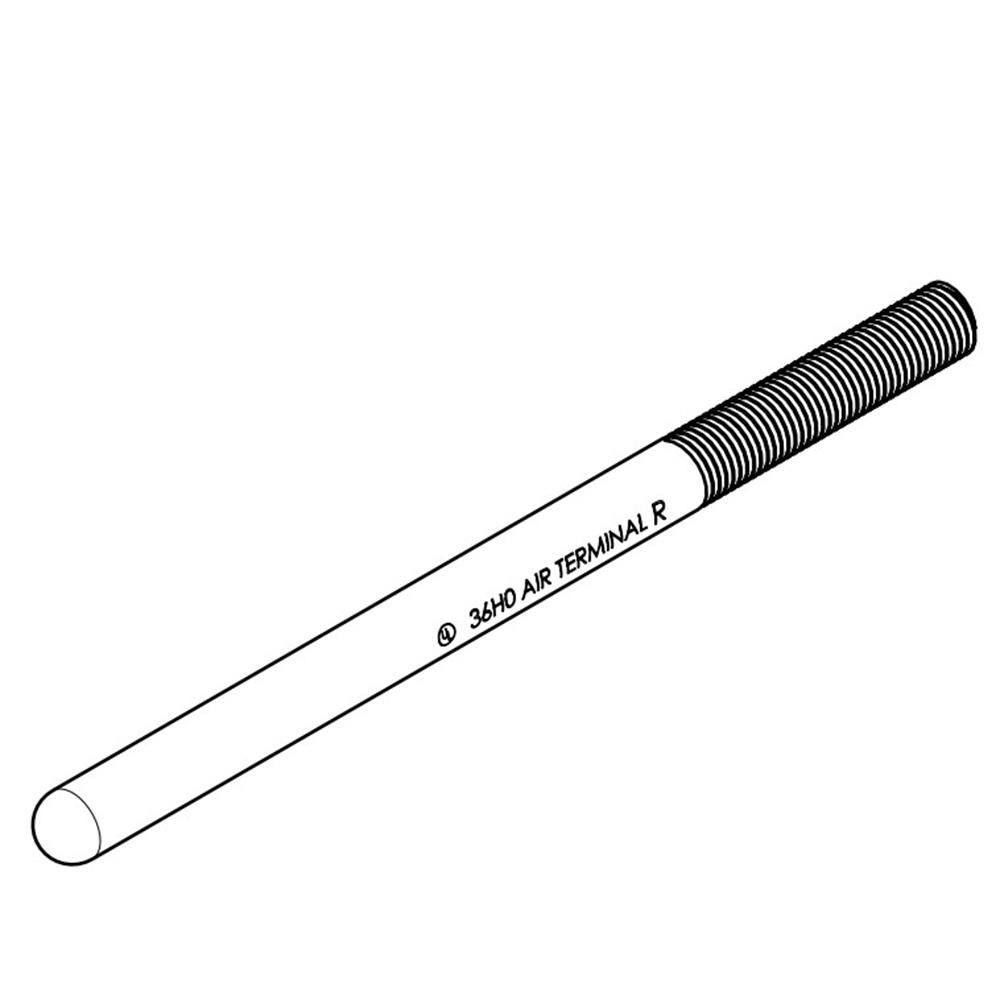

Item #548B-3
548B-3
Item #548B-3 		Air Terminal; Solid copper; Blunt tip; 3" of threads; UL Listed; 5/8" x 48" 4.75 lbs. $118.00* EA

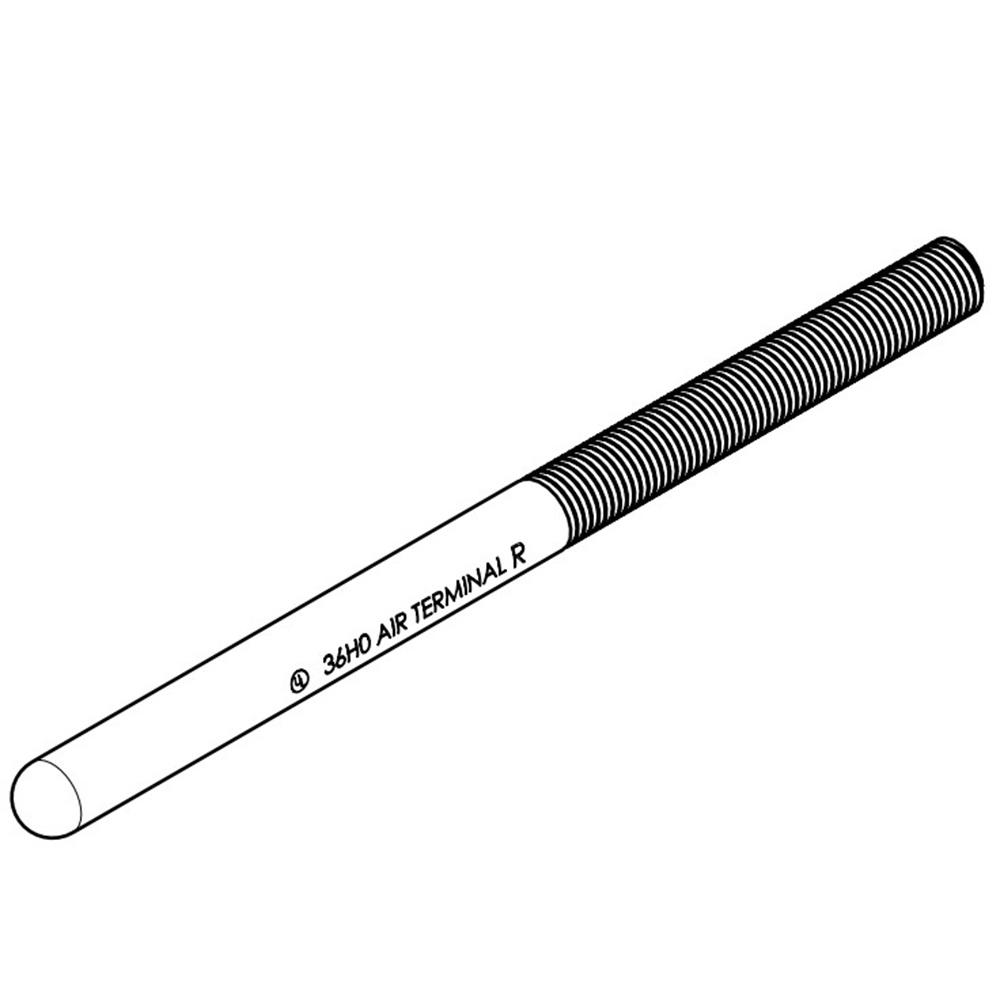

Item #548B-6
548B-6
Item #548B-6 		Air Terminal; Solid copper; Blunt tip; 6" of threads; UL Listed; 5/8" x 48" 4.61 lbs. $120.00* EA
Item #572B-2
572B-2
Item #572B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 5/8" x 72" 7.13 lbs. $170.00* EA

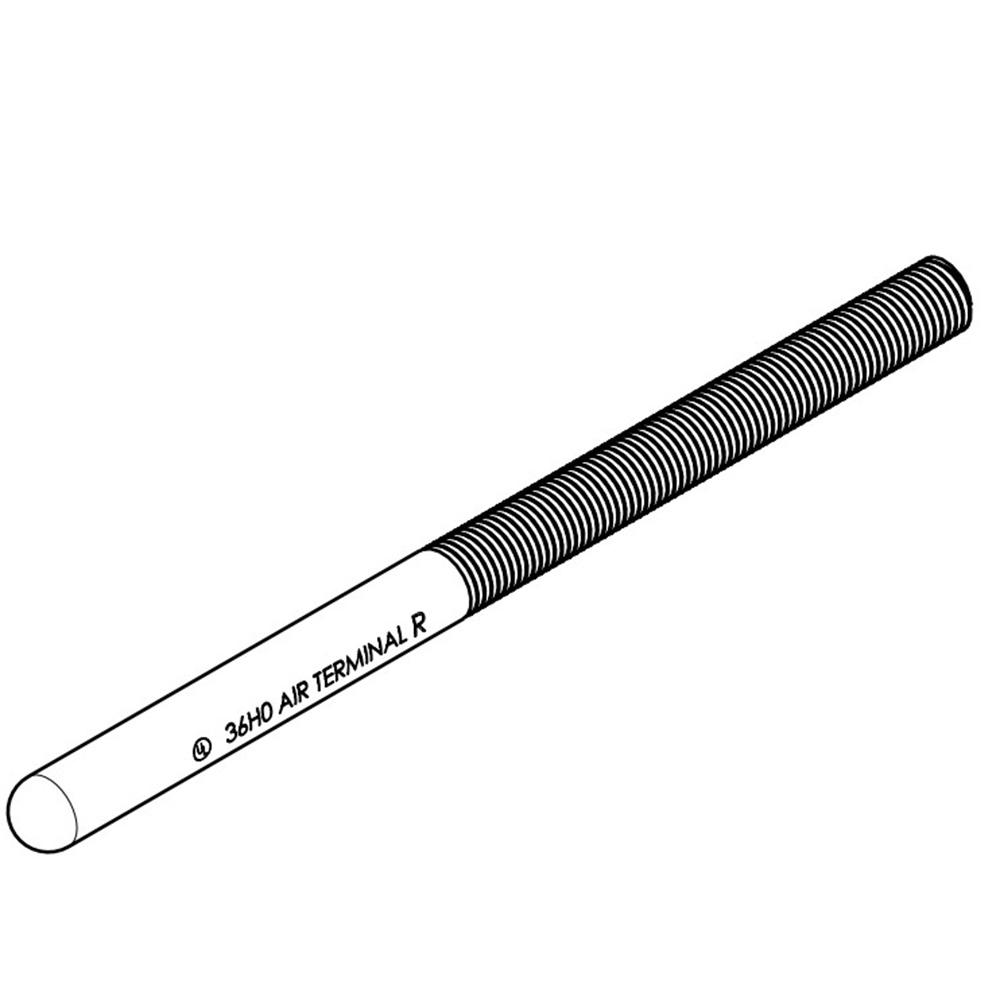

Item #584B-8
584B-8
Item #584B-8 		Air Terminal; Solid copper; Blunt tip; 8" of threads; UL Listed; 5/8" x 84" 8.30 lbs. $199.00* EA

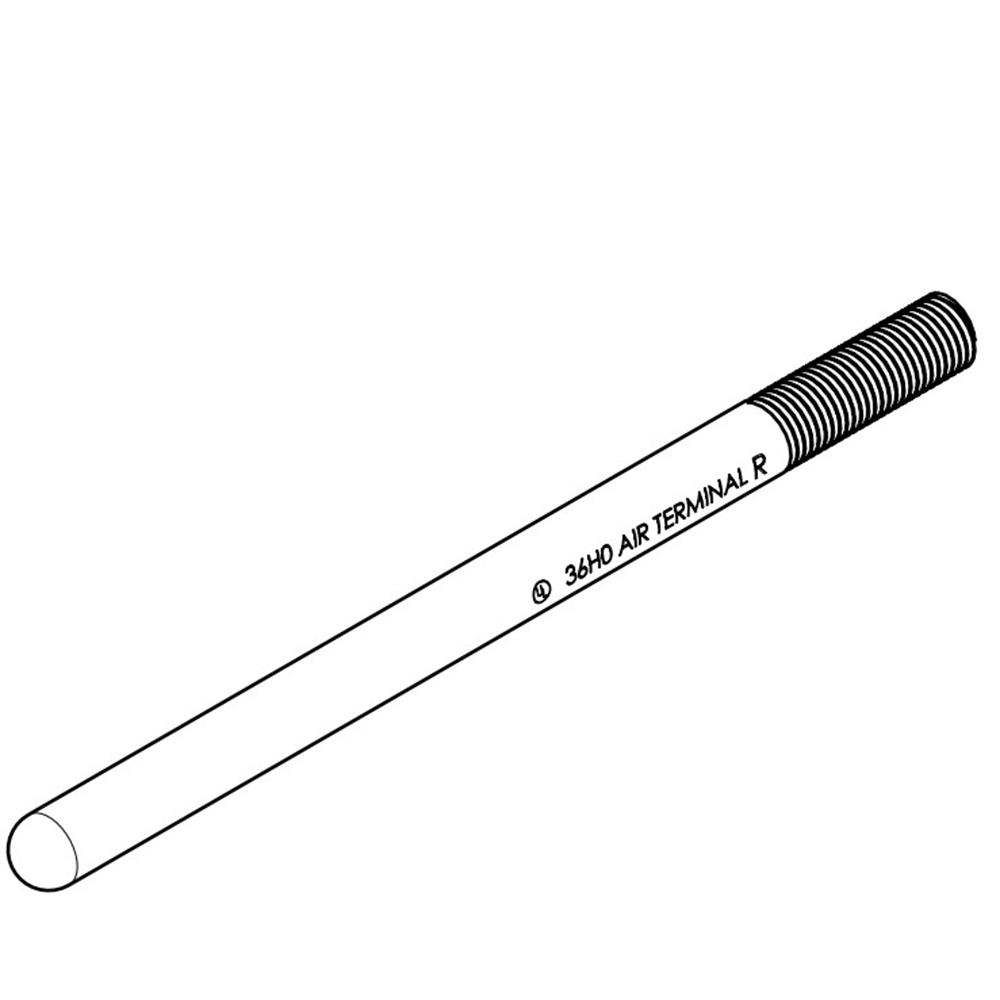

Item #596B-2
596B-2
Item #596B-2 		Air Terminal; Solid copper; Blunt tip; 2" of threads; UL Listed; 5/8" x 96" 9.42 lbs. $224.00* EA
Item #5120B-3
5120B-3
Item #5120B-3 		Air Terminal; Solid copper; Blunt tip; 3" of threads; UL Listed; 5/8" x 120" (10') 11.77 lbs. $280.00* EA
Item #5144B-3
5144B-3
Item #5144B-3 		Air Terminal; Solid copper; Blunt tip; 3" of threads; UL Listed; 5/8" x 144" (12') 14.14 lbs. $296.00* EA
Item #A412B-2
A412B-2
Item #A412B-2 		Air Terminal; Aluminum; 1/2" x 12"; Blunt tip; 2" of threads; UL Listed 0.22 lbs. $7.00* EA
Item #A418B-2
A418B-2
Item #A418B-2 		Air Terminal; Aluminum; 1/2" x 18"; Blunt tip; 2" of threads; UL Listed 0.34 lbs. $9.00* EA
Item #A424B-2
A424B-2
Item #A424B-2 		Air Terminal; Aluminum; 1/2" x 24"; Blunt tip; 2" of threads; UL Listed 0.46 lbs. $10.60* EA
Item #A4120B-2
A4120B-2
Item #A4120B-2 		Air Terminal; Aluminum; 1/2" x 120"; Blunt tip; 2" of threads; UL Listed 2.30 lbs. $53.00* EA
Item #A512B-2
A512B-2
Item #A512B-2 		Air Terminal; Aluminum; Blunt tip; 2" of threads; UL Listed; 5/8" x 12" 0.36 lbs. $9.00* EA
Item #A518B-2
A518B-2
Item #A518B-2 		Air Terminal; Aluminum; Blunt tip; 2" of threads; UL Listed; 5/8" x 18" 0.54 lbs. $12.20* EA
Item #A524B-2
A524B-2
Item #A524B-2 		Air Terminal; Aluminum; Blunt tip; 2" of threads; UL Listed; 5/8" x 24" 0.72 lbs. $15.00* EA
Item #A596B-3
A596B-3
Item #A596B-3 		Air Terminal; Aluminum; Blunt tip; 3" of threads; UL labeled; 5/8" x 96" 2.35 lbs. $60.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
