Product Guide  >  Grounding Materials  >  U-Bolt Ground Clamps  >  U-Bolt Grounds Clamp for Fence Post

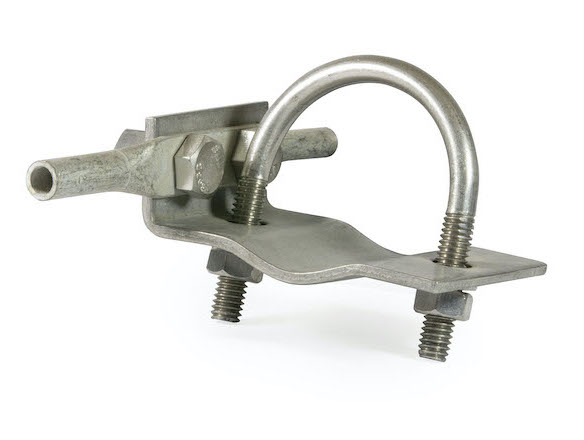

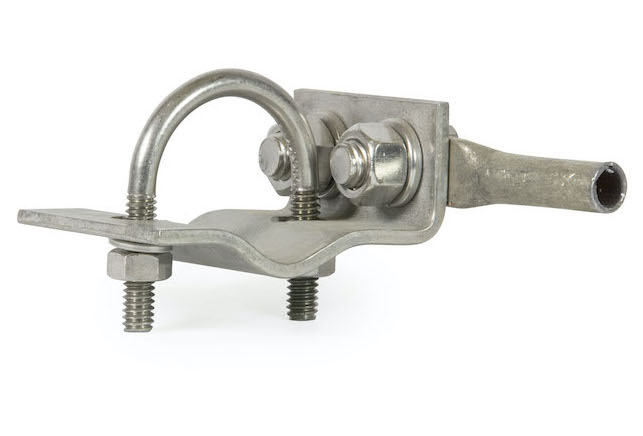

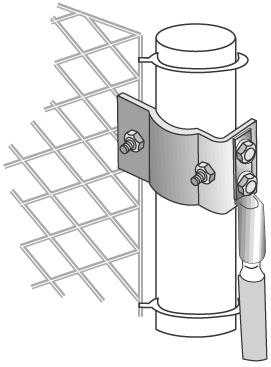

allG offers U-Bolt Ground Clamps made of stainless steel fence post grounding bracket and stainless steel hardware. The bracket includes either one (1) or (2) tinned two hole long barrel compression lug(s) with white or blue color code, depending on your need. Please see chart below.

See Also

Image Item Description Weight Price Unit Qty
Item #1397
1397

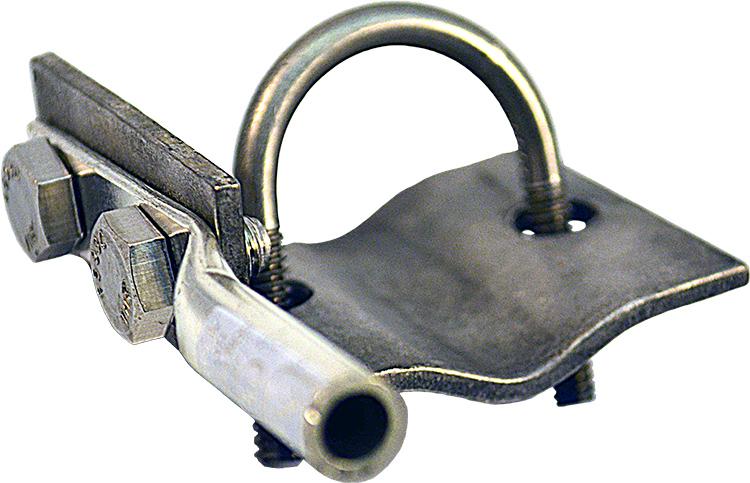

Item #1397 		U-Bolt Clamp; 2" wide; with #2 solid compression lug; stainless steel; fits 3/4" to 1-1/4" diameter pipe 0.40 lbs. $18.00* EA
Item #1397-1
1397-1
Item #1397-1 		U-Bolt Clamp; 2" wide; with #2 solid compression lug; stainless steel; fits 1-1/4" to 2" diameter pipe 0.50 lbs. $21.00* EA
Item #1397-1-2
1397-1-2

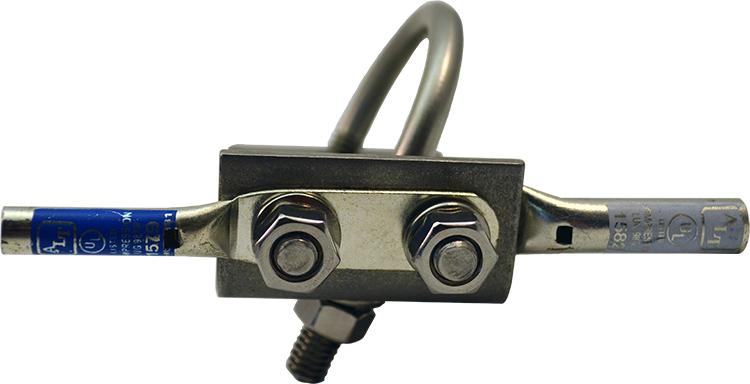

Item #1397-1-2 		U-Bolt Clamp; 2" wide; with #2 solid & #6 stranded compression lugs; stainless steel; fits 1-1/4" to 2" diameter pipe 0.65 lbs. $25.00* EA
Item #1397-2
1397-2
Item #1397-2 		U-Bolt Clamp; Stainless steel; 2" wide; With #2 solid compression lug; Fits 2" to 2-1/2" diameter pipe 0.60 lbs. $22.00* EA
Item #1397-3
1397-3

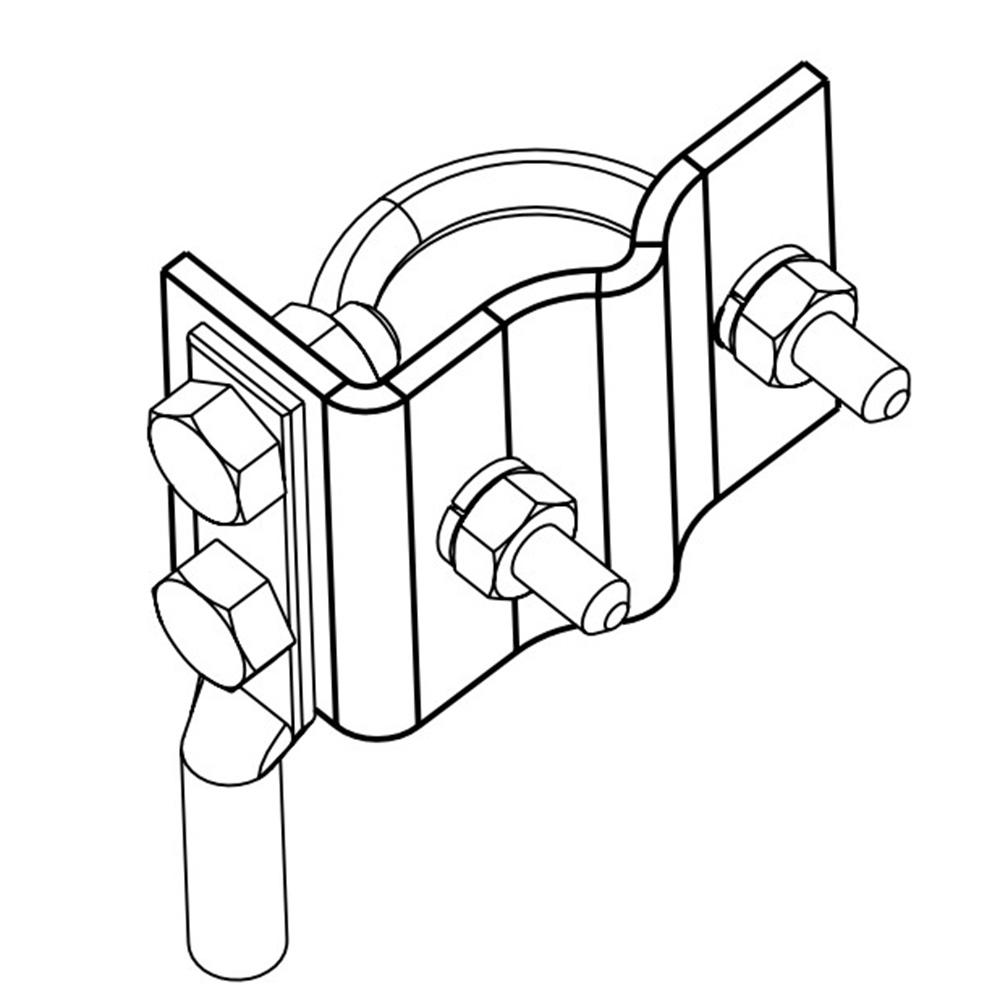

Item #1397-3 		U-Bolt Clamp; Stainless steel; Fits 2-1/2" to 3-3/4" diameter pipe; 2" wide with #2 solid compression lug; UL listed 1.20 lbs. $25.00* EA
Item #1397-3-3/0
1397-3-3/0
Item #1397-3-3/0 		U-Bolt Clamp; Stainless steel; Fits 2-1/2" to 3-3/4" diameter pipe; 2" wide with #3/0 compression lug; UL listed 1.30 lbs. $29.00* EA
Item #1397-4
1397-4
Item #1397-4 		U-Bolt Clamp; 2" wide; with #2 solid compression lug; stainless steel; fits 3-1/2" to 4-3/4" diameter pipe 1.50 lbs. $27.00* EA
Item #1397-5
1397-5
Item #1397-5 		U-Bolt Clamp; 2" wide; with #2 solid compression lug; stainless steel; fits 4-3/4" to 6-3/4" diameter pipe 1.70 lbs. $31.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
