Product Guide  >  Grounding Materials  >  Test Wells  >  Test Wells - Rectangular Concrete

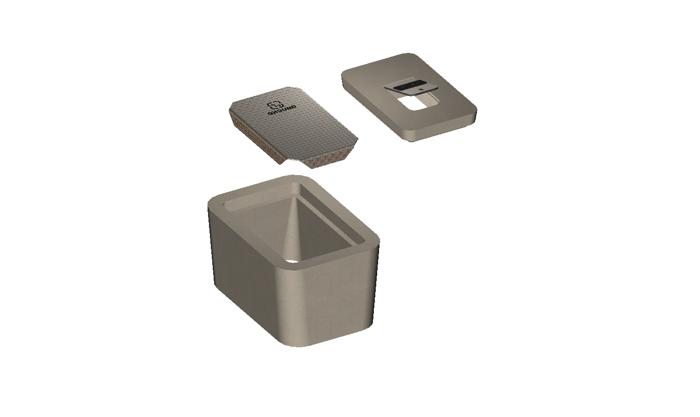

allG's Concrete Ground Test Well is manufactured with an inner welded wire frame for strength. The test well may be ordered with a galvanized steel lid or a concrete lid with cast iron inspection flap. Both lids are marked "Ground". The test well meets all requirements of the 'Buy American Act'.

Image Item Description Weight Price Unit Qty
Item #3195-CL
3195-CL

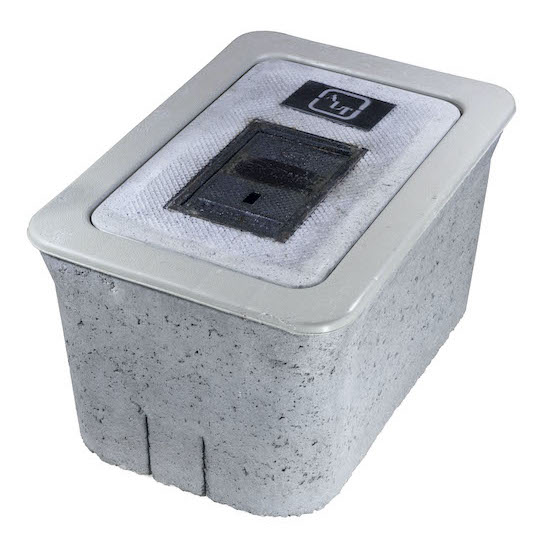

Item #3195-CL 		Test Well; Concrete; Concrete cover marked "Ground"; 12" deep x 15-3/4" wide x 22-3/4" long 146 lbs. $330.00* EA
Item #3195-IL
3195-IL

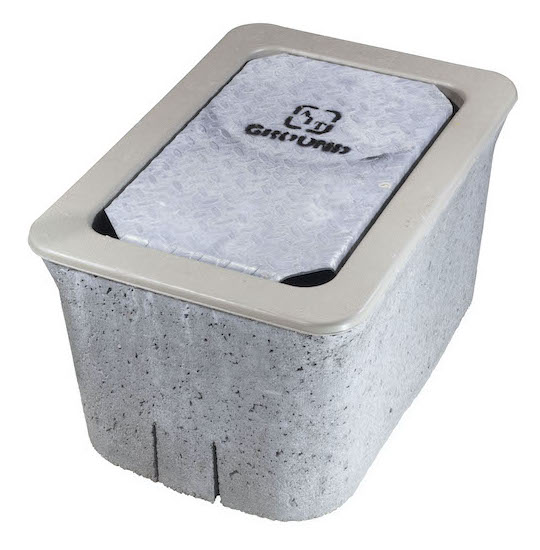

Item #3195-IL 		Test Well; Concrete; Galvanized steel cover marked "Ground"; 12" deep x 15-3/4" wide x 22-3/4" long 122 lbs. $210.00* EA
Item #3195-E
3195-E
Item #3195-E 		Test Well Extension; Concrete; 12" deep x 15-3/4" wide x 22-3/4" long 112 lbs. $115.00* EA
Item #3195-H20
3195-H20
Item #3195-H20 		Test Well; Concrete; Steel cover marked "Ground"; H20 load rating (40,000 lbs); 12" deep x 15-5/8" wide x 22-1/4" long 174 lbs. $935.00* EA
Item #3195-EH20
3195-EH20
Item #3195-EH20 		Test Well Extension; Concrete; H20 load rating when used with ALT Part #3195-H20; 12" deep x 15-5/8" wide x 22-1/4" long; **Only fits ALT Part #3195-H20 129 lbs. $175.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
