allG Fabrication, Ltd.

Product Guide > Grounding Materials > Ground Rods & Accessories > Ground Rods - Copper Clad Standard

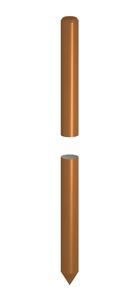

allG offers Copper Clad Standard Ground Rods with no threads. The copper is moleculary bonded to nickel-sealed, high-strength steel cores. The cold-rolled threads have continuous, unbroken grain flows that are stronger than cut threads. They resist corrosion better than galvanized rods, allowing for a 30-year service life in most soils. The state-of-the-art manufacturing process ensures uniform plating thickness. The rods meet or exceed the requirements of ANSI/UL 467-1984, CSA, and ANSI/NEMA GR-1.

Image	Item	Description	Weight	Price	Unit	Qty
	2901CC-8	Ground Rod; Copper clad; Full size; UL 467 compliant; UL listed; 1/2" x 8'; (2902) Previously Robbins part # 90-8	5 lbs.	$28.00*	EA

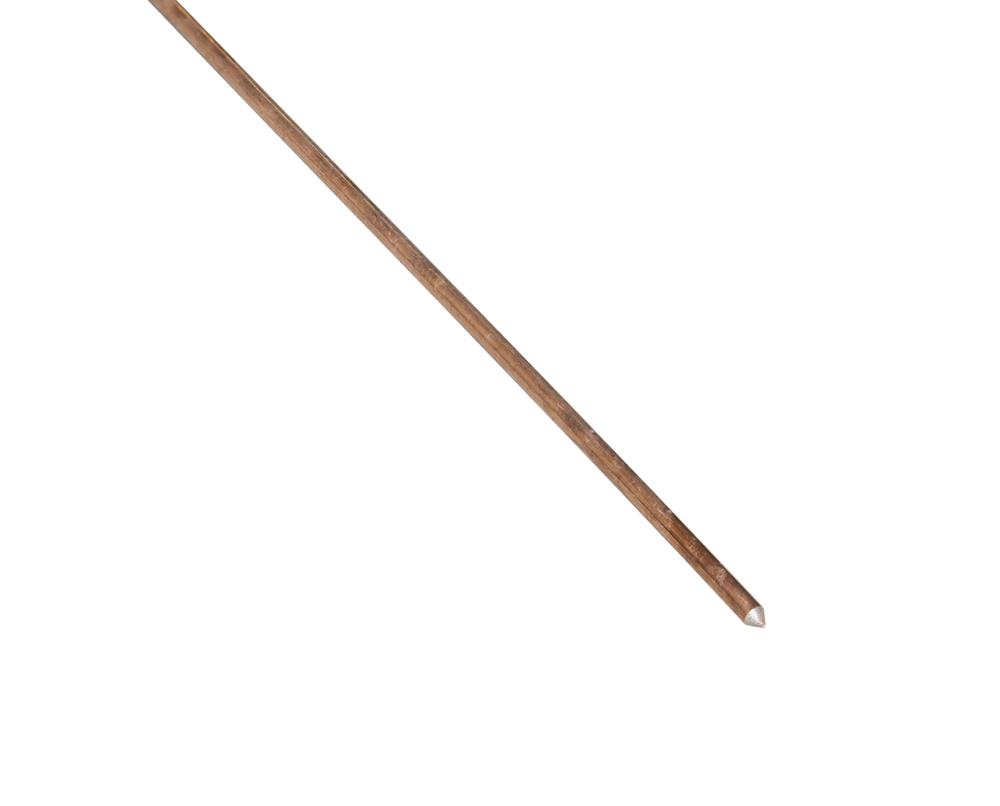

	2902CC-8	Ground Rod; Copper clad; UL 467 compliant; UL listed; 5/8" x 8'; (2908) Previously Robbins part # 94-8	6.55 lbs.	$35.00*	EA
	2902CC-10	Ground Rod; Copper clad; No threads; UL 467 compliant; UL listed; 5/8" x 10'; (2920) Previously Robbins part # 94-10	8.40 lbs.	$45.00*	EA
	2903CC-8	Ground Rod; Copper clad; UL 467 compliant; UL listed; 3/4" x 8'; (2940) Previously Robbins part # 97-8	9.70 lbs.	$46.00*	EA

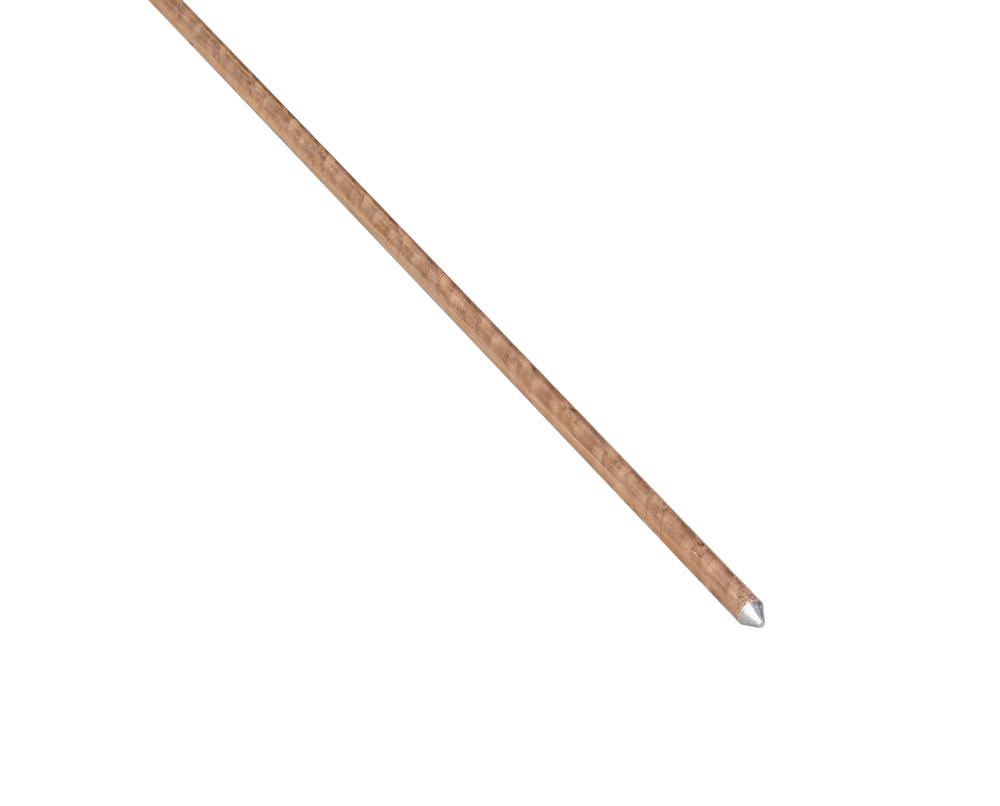

	2903CC-10	Ground Rod; Copper clad; No threads; UL 467 compliant; UL listed; 3/4" x 10'; (2960) Previously Robbins part # 97-10	12.10 lbs.	$60.00*	EA
	2904CC-10	Ground Rod; Copper clad; No threads; UL 467 compliant; 1" x 10'; (2980) Previously Robbins part # 97C-10	23 lbs.	$309.00*	EA
