Product Guide  >  Grounding Materials  >  Ground Bars & Accessories  >  Copper Ground Bars  >  Ground Bars - 1/4" x 6" Copper...  >  Ground Bars - 1/4" x 6" Universal Pattern; Fits 3/4", 1", & 1-3/4"

allG offers Ground Bar - 1/4" x 6" with Universal Pattern which fits 3/4", 1", & 1-3/4". Other sizes available upon request. For BAR ONLY order, use prefix "7000-". allG manufactured ground bars meet or exceed UL 467 standards.

See Also

Image Item Description Weight Price Unit Qty
Item #3832-5-12
3832-5-12
Item #3832-5-12 		1/4" x 6" x 12" Copper Ground Bar with Row of three 7/16" Holes spaced 2" apart to fit 3/4", 1" and 1-3/4" Lugs includes 3875 Insulator/Mounting Bracket Kit 6.70 lbs. $172.00* EA
Item #3832-5-20
3832-5-20

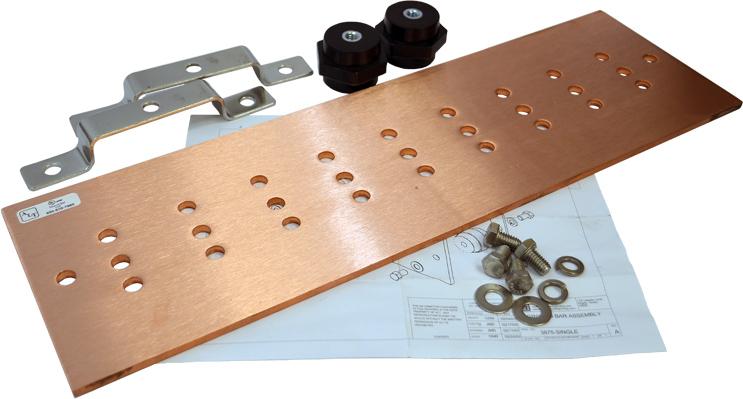

Item #3832-5-20 		1/4" x 6" x 20" Copper Ground Bar with Row of three 7/16" Holes spaced 2" apart to fit 3/4", 1" and 1-3/4" Lugs includes 3875 Insulator/Mounting Bracket Kit 10.35 lbs. $259.00* EA
Item #3832-5-24
3832-5-24
Item #3832-5-24 		1/4" x 6" x 24" Copper Ground Bar with Row of three 7/16" Holes spaced 2" apart to fit 3/4", 1" and 1-3/4" Lugs includes 3875 Insulator/Mounting Bracket Kit 12.30 lbs. $303.00* EA
Item #3832-5-36
3832-5-36
Item #3832-5-36 		1/4" x 6" x 36" Copper Ground Bar with Row of three 7/16" Holes spaced 2" apart to fit 3/4", 1" and 1-3/4" Lugs includes 3875 Insulator/Mounting Bracket Kit 17.90 lbs. $422.00* EA
Item #3832-5-48
3832-5-48
Item #3832-5-48 		1/4" x 6" x 48" Copper Ground Bar with Row of three 7/16" Holes spaced 2" apart to fit 3/4", 1" and 1-3/4" Lugs includes 3875-9 Insulator/Mounting Bracket Kit 24 lbs. $548.00* EA
Item #3832-51-24
3832-51-24
Item #3832-51-24 		1/4" x 6" x 24" Copper Ground Bar with Row of three 7/16" Holes spaced 1" apart to fit 3/4", 1" and 1-3/4" Lugs includes 3875 Insulator/Mounting Bracket Kit 12.30 lbs. $310.00* EA
Item #3832-51-36
3832-51-36
Item #3832-51-36 		1/4" x 6" x 36" Copper Ground Bar with Row of three 7/16" Holes spaced 1" apart to fit 3/4", 1" and 1-3/4" Lugs includes 3875 Insulator/Mounting Bracket Kit 17.90 lbs. $430.00* EA
Item #3832-51-48
3832-51-48
Item #3832-51-48 		1/4" x 6" x 48" Copper Ground Bar with Row of three 7/16" Holes spaced 1" apart to fit 3/4", 1" and 1-3/4" Lugs includes 3875-9 Insulator/Mounting Bracket Kit 24.10 lbs. $558.00* EA
Item #7000-3832-5-12
7000-3832-5-12
Item #7000-3832-5-12 		1/4" x 6" x 12" Copper Ground Bar with (3) 7/16" punched lug holes, 2" apart - Bar Only 5.58 lbs. $144.00* EA
Item #7000-3832-5-20
7000-3832-5-20

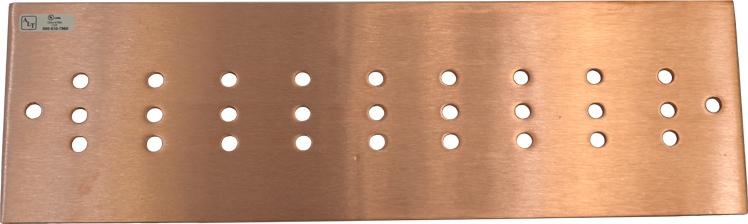

Item #7000-3832-5-20 		1/4" x 6" x 20" Copper Ground Bar with (27) 7/16" punched lug holes - Bar Only 9.25 lbs. $231.00* EA
Item #7000-3832-5-24
7000-3832-5-24
Item #7000-3832-5-24 		1/4" x 6" x 24" Copper Ground Bar with (33) 7/16" punched lug holes - Bar Only 11.20 lbs. $275.00* EA
Item #7000-3832-5-36
7000-3832-5-36
Item #7000-3832-5-36 		1/4" x 6" x 36" Copper Ground Bar with (51) 7/16" punched lug holes & (2) 7/16"mounting holes - Bar Only 27.90 lbs. $394.00* EA
Item #7000-3832-5-48
7000-3832-5-48
Item #7000-3832-5-48 		1/4" x 6" x 48" Copper Ground Bar with (66) 7/16" punched lug holes & (3) mounting holes - Bar Only 22.30 lbs. $506.00* EA
Item #7000-3832-51-24
7000-3832-51-24
Item #7000-3832-51-24 		1/4" x 6" x 24" Copper Ground Bar with Row of three 7/16" Holes spaced 1" apart to fit 3/4", 1" and 1-3/4" Lugs 11.20 lbs. $282.00* EA
Item #7000-3832-51-36
7000-3832-51-36
Item #7000-3832-51-36 		1/4" x 6" x 36" Copper Ground Bar with Row of three 7/16" Holes spaced 1" apart to fit 3/4", 1" and 1-3/4" Lugs. 16.80 lbs. $402.00* EA
Item #7000-3832-51-48
7000-3832-51-48
Item #7000-3832-51-48 		1/4" x 6" x 48" Copper Ground Bar with Row of three 7/16" Holes spaced 1" apart to fit 3/4", 1" and 1-3/4" Lugs 22.40 lbs. $516.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
