Product Guide > Grounding Materials > Ground Bars & Accessories > Copper Ground Bars > Ground Bars - 1/4" x 2" Copper... > Ground Bar - 1/4" x 2" 1-3/4" Lug Hole Spacing 9/16" Dia.

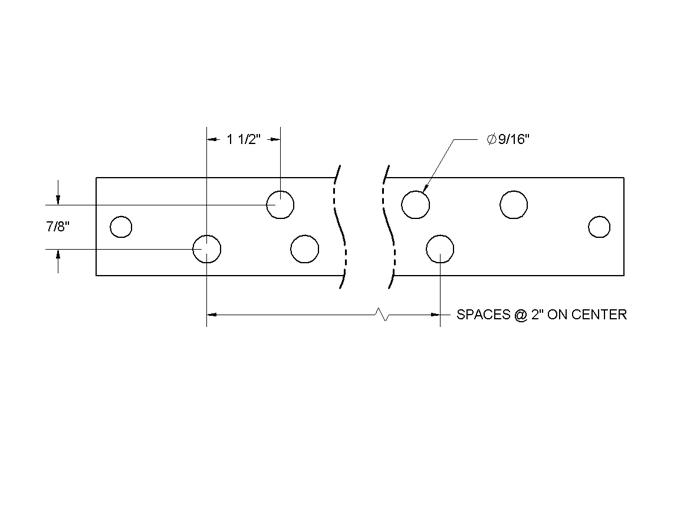

allG offers Ground Bars - 1/4" x 2" 1-3/4" Lug Hole Spacing 9/16" Dia. Additional sizes are available upon request. allG manufactured ground bars meet or exceed UL 467 standards.

Image	Item	Description	Weight	Price	Unit	Qty

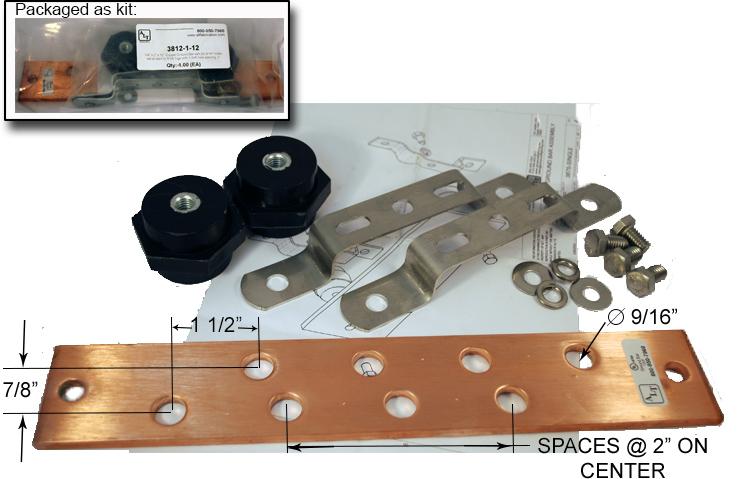

	3812-1-12	1/4" x 2" x 12" Copper Ground Bar with (8) 9/16" holes set at slant to fit (4) lugs with 1-3/4" hole spacing, 2 standoffs, 2 insulators.	3.08 lbs.	$79.00*	EA
	3812-1-24	1/4" x 2" x 24" Copper Ground Bar with (20) 9/16" holes set at slant to fit (10) lugs with 1-3/4" hole spacing, 2 standoffs, 2 insulators.	5.02 lbs.	$120.00*	EA
	3812-1-36	1/4" x 2" x 36" Copper Ground Bar with (32) 9/16" holes set at slant to fit (16) lugs with 1-3/4" hole spacing, 2 standoffs, 2 insulators.	6.96 lbs.	$164.00*	EA

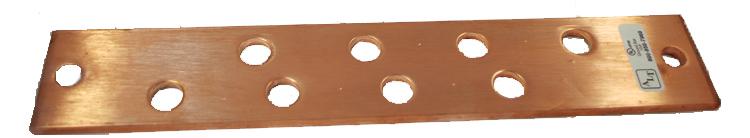

	7000-3812-1-12	1/4" x 2" x 12" Copper Ground Bar with (8) 9/16" holes set at slant to fit lug with 1-3/4" hole spacing - Bar Only	1.93 lbs.	$51.00*	EA
	7000-3812-1-24	1/4" x 2" x 24" Copper Ground Bar with (20) 9/16" holes set at slant to fit lug with 1-3/4" hole spacing - Bar Only	3.86 lbs.	$92.00*	EA
	7000-3812-1-36	1/4" x 2" x 36" Copper Ground Bar with (32) 9/16" holes set at slant to fit lug with 1-3/4" hole spacing - Bar Only	5.79 lbs.	$136.00*	EA
