Product Guide  >  Grounding Materials  >  Cadweld Exothermic Welding  >  Cadweld Exothermic Molds  >  Cadweld Molds - Type VS

allG offers exothermic molds that are avaliable in both Cadweld and Thermoweld. Other sizes are available upon request.

See Also

Image Item Description Weight Price Unit Qty
Item #VSC-1E
VSC-1E
Item #VSC-1E 		Cadweld Mold; #8 Stranded 45 Degree Angular Cable Drop to Vertcal Steel; Uses WM-45 shots & L-160 handles; (N/A) 0 lbs. $0.00* EA
Item #VSC-1H

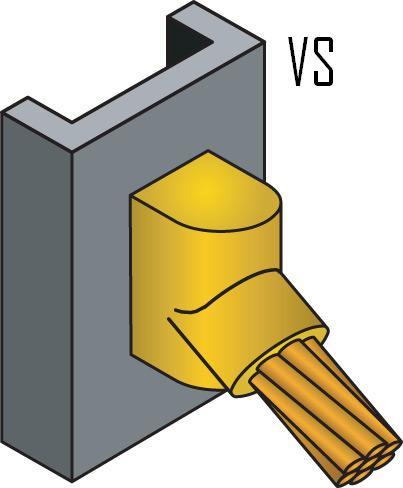

VSC-1H
Item #VSC-1H 		Cadweld Mold; #6 Stranded 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-45 shots & L-160 handles; Requires B-112 sleeves; (M-585) 5 lbs. $0.00* EA
Item #VSC-1H-V3C
VSC-1H-V3C
Item #VSC-1H-V3C 		Cadweld Mold; #6 Stranded 45 Degree Angular Cable Drop to 1-1/2" thru 4"' Vertical Steel Pipe; Uses WM- 45 shots & L-160 handles; (N/A) 5 lbs. $0.00* EA
Item #VSC-1G-V1.25
VSC-1G-V1.25
Item #VSC-1G-V1.25 		Cadweld Mold; #6 Solid 45 Degree Angular Cable Drop to 1-1/4" Vertical Steel Pipe; Uses WM-45 shots & L-160 handles; (N/A) 0 lbs. $0.00* EA
Item #VSC-1L
VSC-1L
Item #VSC-1L 		Cadweld Mold; #4 Stranded 45 Degree Angular Cable to Vertical Steel; Uses WM-45 shots & L-160 handles; (M-586) 5 lbs. $0.00* EA
Item #VSC-1L-V3C
VSC-1L-V3C
Item #VSC-1L-V3C 		Cadweld Mold; #4 Stranded 45 Degree Angular Cable Drop to 1-1/2" thru 4" Vertical Steel Pipe; Uses WM-45 shots & L-160 handles; (M-2476) 5 lbs. $0.00* EA
Item #VSC-1T
VSC-1T
Item #VSC-1T 		Cadweld Mold; #2 Solid 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-45 shots & L-160 handles; (M-588-S) 5 lbs. $175.00* EA
Item #VSC-1T-V150
VSC-1T-V150
Item #VSC-1T-V150 		Cadweld Mold; #2 Solid 45 Degree Angular Cable Drop to 1-1/2" Vertical Steel Pipe; Uses WM-45 shots & L-160 handles; (N/A) 5 lbs. $165.00* EA
Item #VSC-1T-V3C
VSC-1T-V3C
Item #VSC-1T-V3C 		Cadweld Mold; #2 Solid 45 Degree Angular Cable Drop to 1-1/2" thru 4" Vertical Steel Pipe; Uses WM-45 shots & L-160 handles; (VSU-2S-1.5-4 or M-9233-S) 5 lbs. $175.00* EA
Item #VSC-1T-V5C
VSC-1T-V5C
Item #VSC-1T-V5C 		Cadweld Mold; #2 Solid 45 Degree Angular Drop to 4" thru 6" Vertical Pipe; Uses WM-45 shots & L-160 handles; (M-2480-S) 5 lbs. $0.00* EA
Item #VSC-1T-V8C
VSC-1T-V8C
Item #VSC-1T-V8C 		Cadweld Mold; #2 Solid 45 Degree Angular Drop to 6" thru 10" Vertical Steel Pipe; Uses WM-45 shots, L-160 handles, & B-158 chain; (M-2583-S) 0 lbs. $0.00* EA
Item #VSC-1V
VSC-1V
Item #VSC-1V 		Cadweld Mold; #2 Stranded 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-45 shots & L-160 handles; (VSU-2 or M-588) 5 lbs. $165.00* EA
Item #VSC-1V-V3C
VSC-1V-V3C
Item #VSC-1V-V3C 		Cadweld Mold; #2 Stranded 45 Degree Angular Cable Drop to 1-1/2" thru 4" Vertical Steel Pipe; Uses WM-45 shots & L-160 handles; (M-9233) 5 lbs. $165.00* EA
Item #VSC-2C
VSC-2C
Item #VSC-2C 		Cadweld Mold; 1/0 Stranded 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-90 shots & L-160 handles; (M-590) 5 lbs. $165.00* EA
Item #VSC-2B
VSC-2B
Item #VSC-2B 		Cadweld Mold; 1/0 Solid 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-90 shots & L-160 handles; (M-590-S) 0 lbs. $160.00* EA
Item #VSC-2C-V3C
VSC-2C-V3C
Item #VSC-2C-V3C 		Cadweld Mold; 1/0 Stranded 45 Degree Angular Cable Drop to 2" thru 4" Vertical Steel Pipe; Uses WM-90 shots & L-160 handles; (M-2486) 5 lbs. $0.00* EA
Item #VSC-2C-V8C
VSC-2C-V8C
Item #VSC-2C-V8C 		Cadweld Mold; 1/0 Stranded 45 Degree Angular Cable Drop to 6'' thru 10'' Vertical Steel Pipe; Uses WM-90 shots & L-160 handles; (M-2488) 5 lbs. $0.00* EA
Item #VSC-2C-V21C
VSC-2C-V21C
Item #VSC-2C-V21C 		Cadweld Mold; 1/0 Stranded 45 Degree Angular Cable Drop to 12" thru 30" Vertical Steel Pipe; Uses WM-90 shots & L-160 handles; (M-2489) 5 lbs. $0.00* EA
Item #VSC-2G
VSC-2G
Item #VSC-2G 		Cadweld Mold; 2/0 Stranded 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-90 shots & L-160 handles; (M-591) 5 lbs. $175.00* EA
Item #VSC-2G-V3C
VSC-2G-V3C
Item #VSC-2G-V3C 		Cadweld Mold; 2/0 Stranded 45 Degree Angular Cable Drop to 2" thru 4" Vertical Steel Pipe; Uses WM-90 shots & L-160 handles; (M-8833) 5 lbs. $175.00* EA
Item #VSC-2G-V5C
VSC-2G-V5C
Item #VSC-2G-V5C 		Cadweld Mold; 2/0 Stranded 45 Degree Angular Cable Drop to 4" thru 6" Vertical Steel Pipe; Uses WM-90 shots & L-160 handles; (M-2490) 5 lbs. $0.00* EA
Item #VSC-2G-V8C
VSC-2G-V8C
Item #VSC-2G-V8C 		Cadweld Mold; 2/0 Stranded 45 Degree Angular Cable Drop to 6" thru 10" Vertical Steel Pipe; Uses WM-90 shots & L-160 handles; (M-2491) 5 lbs. $0.00* EA
Item #VSC-2L
VSC-2L
Item #VSC-2L 		Cadweld Mold; 3/0 Stranded 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-115 shots & L-160 handles; (M-592) 5 lbs. $175.00* EA
Item #VSC-2L-V3C
VSC-2L-V3C
Item #VSC-2L-V3C 		Cadweld Mold; 3/0 Stranded 45 Degree Angular Cable Drop to 2" thru 4" Vertical Steel Pipe; Uses WM-115 shots & L-160 handles; (M-2493) 5 lbs. $0.00* EA
Item #VSC-2L-V21C
VSC-2L-V21C
Item #VSC-2L-V21C 		Cadweld Mold; 3/0 Stranded 45 Degree Angular Cable Drop to 12" thru 14" Vertical Steel Pipe; Uses WM-115 shots & L-160 handles; (M-2496) 0 lbs. $0.00* EA
Item #VSC-2Q
VSC-2Q
Item #VSC-2Q 		Cadweld Mold; 4/0 Stranded 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-115 shots & L-160 handles; (M-593) 5 lbs. $175.00* EA
Item #VSC-2QW
VSC-2QW
Item #VSC-2QW 		Cadweld Mold; 4/0 Stranded 45 Degree Angular Cable Drop to Vertical Steel with Wear Plates; Uses WM-115 shots & L-160 handles; (N/A) 0 lbs. $0.00* EA
Item #VSC-2Q-V150
VSC-2Q-V150
Item #VSC-2Q-V150 		Cadweld Mold; 4/0 Stranded 45 Degree Angular Cable Drop to 1-1/2'' Vertical Steel Pipe; Uses WM-115 shots & L-160 handles; (N/A) 5 lbs. $0.00* EA
Item #VSC-2Q-V3C
VSC-2Q-V3C
Item #VSC-2Q-V3C 		Cadweld Mold; 4/0 Stranded 45 Degree Angular Drop to 2" thru 4" Vertical Pipe; Uses WM-115 shots & L-160 & B-160-V handles; (M-9021) 5 lbs. $175.00* EA
Item #VSC-2Q-V5C
VSC-2Q-V5C
Item #VSC-2Q-V5C 		Cadweld Mold; 4/0 Stranded 45 Degree Angular Cable Drop to 5'' Vertical Steel Pipe; Uses WM-115 shots & L-160 handles; (M-2497) 5 lbs. $0.00* EA
Item #VSC-2Q-V8C
VSC-2Q-V8C
Item #VSC-2Q-V8C 		Cadweld Mold; 4/0 Stranded 45 Degree Angular Cable Drop to 6" thru 10" Vertical Steel Pipe; Uses WM-115 shots & L-160 handles; (M-2498) 5 lbs. $0.00* EA
Item #VSC-2V
VSC-2V
Item #VSC-2V 		Cadweld Mold; 250 MCM 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-115 shots & L-160 handles; (M-594) 0 lbs. $0.00* EA
Item #VSC-3D
VSC-3D
Item #VSC-3D 		Cadweld Mold; 350 MCM 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-200 shots & L-160 handles; (N/A) 6 lbs. $0.00* EA
Item #VSC-3Q-V10
VSC-3Q-V10
Item #VSC-3Q-V10 		Cadweld Mold; 500 MCM 45 Degree Angular Cable Drop to 10" Vertical Steel Pipe; Uses WM-200 shots & L-160 handles; (N/A) 0 lbs. $0.00* EA
Item #VSC-3X
VSC-3X
Item #VSC-3X 		Cadweld Mold; 600 MCM 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-200 shots & L-160 handles; (N/A) 6.25 lbs. $0.00* EA
Item #VSC-8N
VSC-8N
Item #VSC-8N 		Cadweld Mold; 28/16 Lightning Protection Conductor 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-65 shots & L-160 handles; (M-5150) 5 lbs. $175.00* EA
Item #VSC-8C
VSC-8C
Item #VSC-8C 		Cadweld Mold; 29/32 Lightning Conductor 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-90 shots & L-160 handles; (M-5149) 5 lbs. $175.00* EA
Item #VSC-8D
VSC-8D
Item #VSC-8D 		Cadweld Mold; 28/505 Lightning Conductor 45 Degree Angular Cable Drop to Vertical Steel; Uses WM-115 shots & L-160 handles; (M-5146) 5 lbs. $165.00* EA
Item #VSC-8D-V21C
VSC-8D-V21C
Item #VSC-8D-V21C 		Cadweld Mold; 228 Lightning Protection Conductor 45 Degree Angular Cable Drop to 12" thru 30" Vertical Steel Pipe; Uses WM-115 shots & L-160 handles; (N/A) 5 lbs. $0.00* EA
Item #VSC-8D-V3C
VSC-8D-V3C
Item #VSC-8D-V3C 		Cadweld Mold; 228 Lightning Protection Conductor 45 Degree Angular Cable Drop to 2" thru 4" Vertical Steel Pipe; Uses WM-115 shots & L-160 handles; (N/A) 5 lbs. $0.00* EA
Item #VSC-9F-V3C
VSC-9F-V3C
Item #VSC-9F-V3C 		Cadweld Mold; 19/#9 Copperweld 45 Degree Angular Cable Drop to 2" thru 4" Vertical Steel Pipe; Uses WM-90 shots & L-160 handles; (N/A) 5 lbs. $0.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
