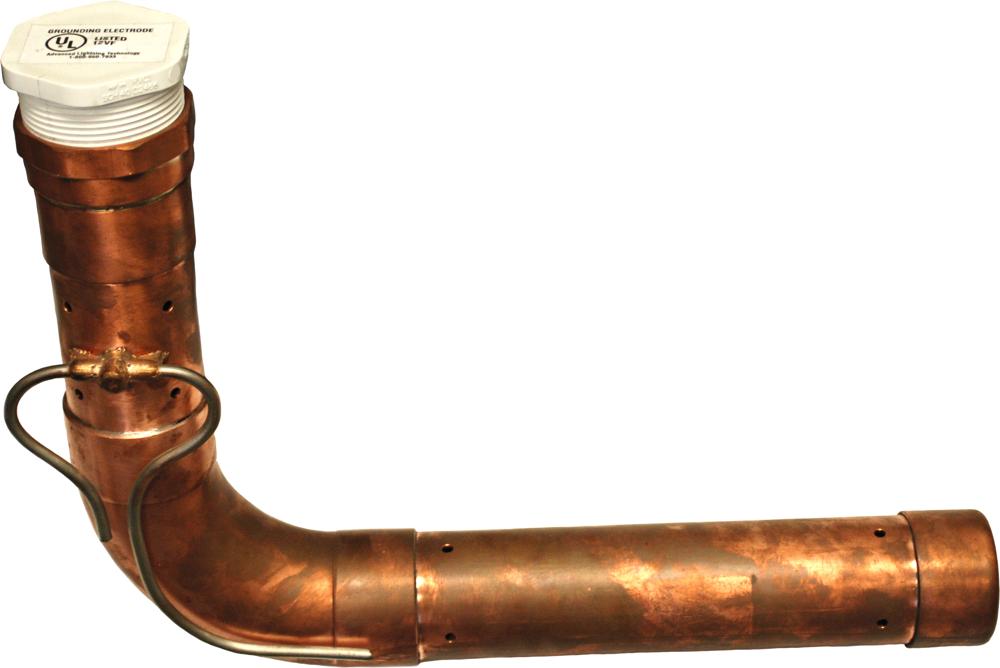

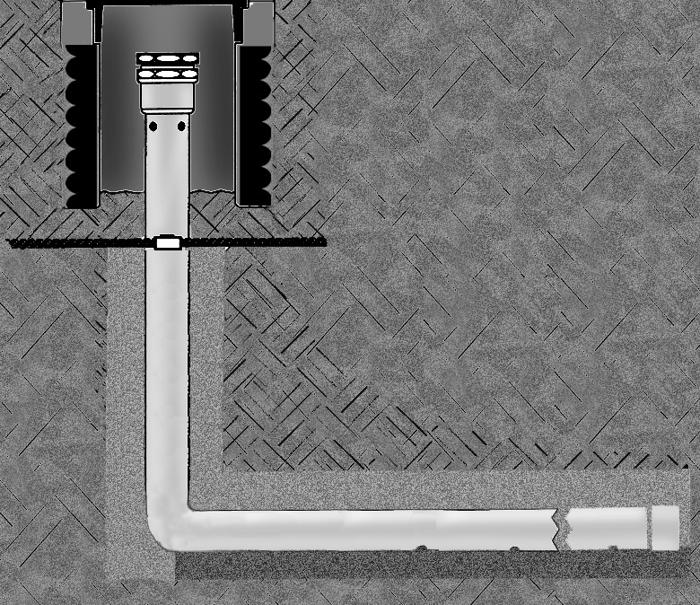

The Advanced Grounding Electrode (AGE) is an allG trademarked product. It is a chemically enhanced grounding electrode system. Each AGE kit includes the following components: 12" long, double wall, high-traffic area test well; a copper AGE electrode; a 4', exothermically welded tail; allG ground enhancement material; and specially formulated starter material. Ground Resistance Enhancement Material and Recharge Materials are also available. Special rod lengths, conductor sizes, and tail lengths are available upon request. Rods listed have a 30" neck length. Neck lengths are also avaliable in 18" and 24". Specify neck length. allG manufactured chemical ground rods meet or exceed UL 467 standards.
| Image | Item | Description | Weight | Price | Unit | Qty | |
|
3459
|
Horizontal Advanced Grounding Electrode Kit Assembly; 4/0 bare copper tail; 8' | 303 lbs. | $1,735.00* | EA | ||
|
3459-02G
|
Horizontal Advanced Grounding Electrode Kit Assembly; #2 stranded green insulated copper tail; 8' | 303 lbs. | $1,710.00* | EA | ||
|
|
3459-02ST
|
Horizontal Advanced Grounding Electrode Kit Assembly; #2 solid tinned copper tail; 8' | 303 lbs. | $1,710.00* | EA | ||
|
|
3459-168
|
Horizontal Advanced Grounding Electrode Kit Assembly; 168 28 strands of 16 ga copper tail; 8' | 303 lbs. | $1,725.00* | EA | ||
|
|
3459-30
|
Horizontal Advanced Grounding Electrode Kit Assembly; 3/0 stranded bare copper tail; 8' | 303 lbs. | $1,735.00* | EA | ||
|
|
3459-18N-02ST
|
Horizontal Advanced Grounding Electrode Kit Assembly; #2 solid tinned copper tail; 18" neck; 8' | 303 lbs. | $1,710.00* | EA | ||
|
|
3459-18N-40
|
Horizontal Advanced Grounding Electrode Kit Assembly; 4/0 stranded copper tail; 18" neck; 8' | 303 lbs. | $1,735.00* | EA | ||
|
|
3459-20
|
Horizontal Advanced Grounding Electrode Kit Assembly; 2/0 bare copper tail; 8' | 303 lbs. | $1,730.00* | EA | ||
|
|
3459-228
|
Horizontal Advanced Grounding Electrode Kit Assembly; 28 strands of 14 ga copper tail; 8' | 303 lbs. | $1,730.00* | EA | ||
|
|
3459-24N-40
|
Advanced Grounding Electrode (AGE) Kit Assembly; Horizontal; 8' with 24" neck; 4 ft 4/0 bare copper tail | 303 lbs. | $1,735.00* | EA | ||
|
|
3459-250
|
Horizontal Advanced Grounding Electrode Kit Assembly; 250 MCM copper tail; 8' | 303 lbs. | $1,750.00* | EA | ||
|
|
3459-40G
|
Horizontal Advanced Grounding Electrode Kit Assembly; 4/0 green insulated copper tail; 8' | 303 lbs. | $1,745.00* | EA | ||
|
|
3459-40T
|
Horizontal Advanced Grounding Electrode Kit Assembly; 4/0 stranded tinned copper tail; 8' | 303 lbs. | $1,740.00* | EA | ||
|
|
3459-500
|
Horizontal Advanced Grounding Electrode Kit Assembly; 500 MCM copper tail; 8' | 303 lbs. | $1,815.00* | EA |
* Pricing subject to change on this item
**Product received may vary from photo
