Product Guide  >  Grounding Materials  >  Ground Wire  >  Insulated Conductor  >  THHN/THWN-2 Insulated Bare with Colored Tracer

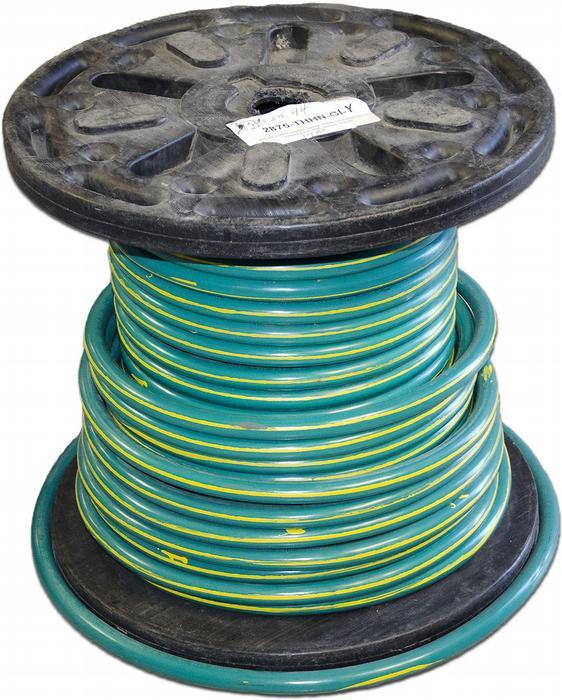

allG offers Stranded Copper Green THHN/THWN-2 Insulated Wire with either an Orange, Red, or Yellow Tracer. This wire is used to conductively locate buried utility lines for the gas, water, sewer, telecommunication, and electrical markets. Type THHN/THWN-2 conductor is suitable for use in dry conditions when temperatures do no exceed 90 Degree C and/or in wet conditions when temperatures do not exceed 75 Degree C.

See Also

Image Item Description Weight Price Unit Qty
Item #2809-THHN-GI-O
2809-THHN-GI-O
Item #2809-THHN-GI-O 		Ground Conductor; Copper; #6; 19-strand; THHN/THWN-2 insulated; Approximate diameter 0.27 inches; 600V rated; Green with orange tracer 0.11 lbs. $2.20* FT
Item #2809-THHN-GI-R
2809-THHN-GI-R
Item #2809-THHN-GI-R 		Ground Conductor; Copper; #6; 19-strand; THHN/THWN-2 insulated; Approximate diameter 0.27 inches; 600V rated; Green with red tracer 0.11 lbs. $2.20* FT
Item #2809-THHN-GI-Y
2809-THHN-GI-Y
Item #2809-THHN-GI-Y 		Ground Conductor; Copper; #6; 19-strand; THHN/THWN-2 insulated; Approximate diameter 0.27 inches; 600V rated; Green with yellow tracer 0.11 lbs. $2.20* FT
Item #2826-THHN-GI-O
2826-THHN-GI-O
Item #2826-THHN-GI-O 		Ground Conductor; Copper; #4;19-strand; THHN/THWN-2 insulated; Approximate diameter 0.34 inches; 600V rated; Green with orange tracer 0.16 lbs. $2.45* FT
Item #2826-THHN-GI-R
2826-THHN-GI-R
Item #2826-THHN-GI-R 		Ground Conductor; Copper; #4; 19-strand; THHN/THWN-2 insulated; Approximate diameter 0.34 inches; 600V rated; Green with red tracer 0.16 lbs. $2.45* FT
Item #2826-THHN-GI-Y
2826-THHN-GI-Y
Item #2826-THHN-GI-Y 		Ground Conductor; Copper; #4; 19-strand; THHN/THWN-2 insulated; Approximate diameter 0.34 inches; 600V rated; Green with yellow tracer 0.16 lbs. $2.45* FT
Item #2835-THHN-GI-O
2835-THHN-GI-O
Item #2835-THHN-GI-O 		Ground Conductor; Copper; #2; 19-strand; THHN/THWN-2 insulated; Approximate diameter 0.40 inches; 600V rated; Green with orange tracer 0.24 lbs. $3.60* FT
Item #2835-THHN-GI-R
2835-THHN-GI-R
Item #2835-THHN-GI-R 		Ground Conductor; Copper; #2; 19-strand; THHN/THWN-2 insulated; Approximate diameter 0.40 inches; 600V rated; Green with red tracer 0.24 lbs. $3.60* FT
Item #2835-THHN-GI-Y
2835-THHN-GI-Y
Item #2835-THHN-GI-Y 		Ground Conductor; Copper; #2; 19-strand; THHN/THWN-2 insulated; Approximate diameter 0.40 inches; 600V rated; Green with yellow tracer 0.24 lbs. $3.60* FT
Item #2865-THHN-GI-O
2865-THHN-GI-O
Item #2865-THHN-GI-O 		Ground Conductor; copper; 2/0; 19-strand;THHN/THWN-2 insulated; 600V rated; Green with orange tracer; Spooled to no standard length 0.47 lbs. $4.55* FT
Item #2865-THHN-GI-R
2865-THHN-GI-R
Item #2865-THHN-GI-R 		Ground Conductor; copper; 2/0; 19-strand; THHN/THWN-2 insulated; 600V rated; Green with red tracer; Spooled to no standard length 0.47 lbs. $4.55* FT
Item #2865-THHN-GI-Y
2865-THHN-GI-Y
Item #2865-THHN-GI-Y 		Ground Conductor; Copper; 2/0; 19-strand; THHN/THWN-2 insulated; 600V rated; Green with yellow tracer; Spooled to no standard length 0.47 lbs. $4.55* FT
Item #2875-THHN-GI-O
2875-THHN-GI-O
Item #2875-THHN-GI-O 		Ground Conductor; Copper; 4/0; 19-strand; THHN/THWN-2 insulated; 600V rated; Green with orange tracer; Spooled to no standard length 0.73 lbs. $6.55* FT
Item #2875-THHN-GI-R
2875-THHN-GI-R
Item #2875-THHN-GI-R 		Ground Conductor; Copper; 4/0; 19-strand; THHN/THWN-2 insulated; 600V rated; Green with red tracer; Spooled to no standard length 0.73 lbs. $6.55* FT
Item #2875-THHN-GI-Y
2875-THHN-GI-Y

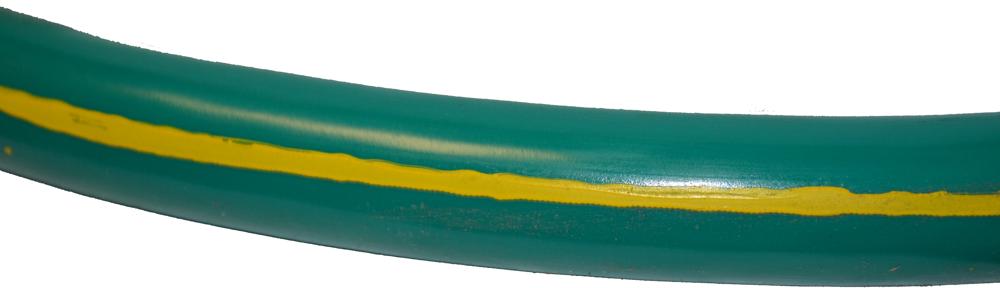

Item #2875-THHN-GI-Y 		Ground Conductor; Copper; 4/0; 19-strand; THHN/THWN-2 insulated; 600V rated; Green with yellow tracer; Spool to no standard length 0.73 lbs. $6.55* FT

* Pricing subject to change on this item

**Product received may vary from photo
