Product Guide  >  Grounding Materials  >  Ground Bars & Accessories  >  Copper Ground Bars  >  Ground Bars - 1/4" x 4" Copper...  >  Ground Bars - 1/4" x 4" 3/4" ...  >  Ground Bar - 1/4" x 4" Universal Pattern Fits 3/4", 1", & 1-3/4"

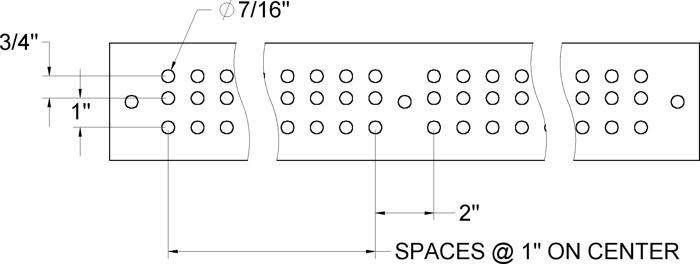

allG offers Universal Patterned Ground Bars - 1/4" x 4" that accept 3/4", 1", & 1-3/4" lugs. Other sizes are available upon request. allG manufactured ground bars meet or exceed UL 467 standards.

See Also

Image Item Description Weight Price Unit Qty
Item #3822-5-10
3822-5-10
Item #3822-5-10 		Ground Bar; Copper; 1/4" x 4" x 10"; (12) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 4.20 lbs. $104.00* EA
Item #3822-5-12
3822-5-12
Item #3822-5-12 		Ground Bar; Copper; 1/4" x 4" x 12"; (15) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 4.90 lbs. $118.00* EA
Item #3822-5-16
3822-5-16
Item #3822-5-16 		Ground Bar; Copper; 1/4" x 4" x 16"; (21) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 6 lbs. $145.00* EA
Item #3822-5-18
3822-5-18
Item #3822-5-18 		Ground Bar; Copper; 1/4" x 4" x 18"; (24) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 6.60 lbs. $156.50* EA
Item #3822-5-20
3822-5-20
Item #3822-5-20 		Ground Bar; Copper; 1/4" x 4" x 20"; (27) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 7.87 lbs. $169.00* EA
Item #3822-5-24
3822-5-24
Item #3822-5-24 		Ground Bar; Copper; 1/4" x 4" x 24"; (33) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 8.72 lbs. $195.00* EA
Item #3822-5-30
3822-5-30

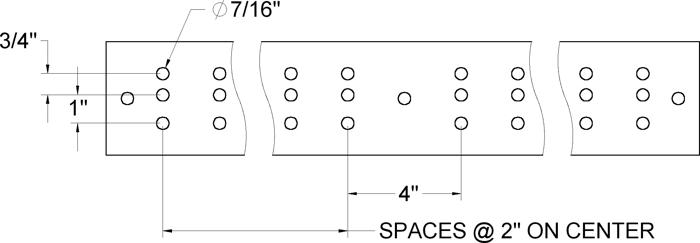

Item #3822-5-30 		Ground Bar; Copper; 1/4" x 4" x 30"; 7/16" holes at 3/4", 1" & 1-3/4" spacing on 2" centers; Includes 3875 mounting kit 10.40 lbs. $235.00* EA
Item #3822-5-36
3822-5-36
Item #3822-5-36 		Ground Bar; Copper; 1/4" x 4" x 36"; (51) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 14.70 lbs. $273.00* EA
Item #3822-5-48
3822-5-48
Item #3822-5-48 		Ground Bar; Copper; 1/4" x 4" x 48"; (66) 7/16" punched lug holes; Includes (3) insulators & (3) standoffs 19.75 lbs. $365.00* EA
Item #3822-5-60
3822-5-60
Item #3822-5-60 		Ground Bar; Copper; 1/4" x 4" x 60"; (84) 7/16" punched lug holes; Includes (3) insulators & (3) standoffs 20 lbs. $443.00* EA
Item #3822-5-72
3822-5-72
Item #3822-5-72 		Ground Bar; Copper; 1/4" x 4" x 72"; (102) 7/16" punched lug holes; Includes (3) insulators & (3) standoffs 23.70 lbs. $523.00* EA
Item #3822-51-12
3822-51-12

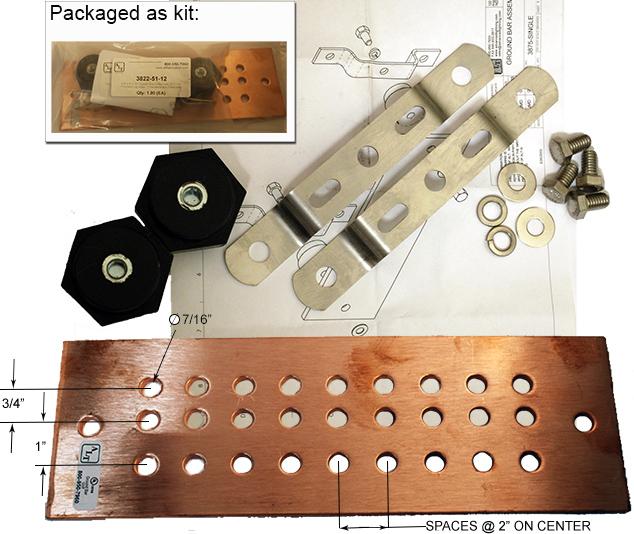

Item #3822-51-12 		Ground Bar; Copper; 1/4" x 4" x 12"; (27) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 4.60 lbs. $121.00* EA
Item #3822-51-18
3822-51-18
Item #3822-51-18 		Ground Bar; Copper; 1/4" x 4" x 18"; (45) 7/16" punched lug holes; Includes (2) standoffs & (2) insulators 6.30 lbs. $160.00* EA
Item #3822-51-20
3822-51-20
Item #3822-51-20 		Ground Bar; Copper; 1/4" x 4" x 20"; (51) 7/16" punched lug holes; Includes (2) insulators & (2) standoffs 6.90 lbs. $173.00* EA
Item #3822-51-24
3822-51-24
Item #3822-51-24 		Ground Bar; Copper; 1/4" x 4" x 24"; (63) 7/16" punched lug holes; Includes (2) standoffs & (2) insulators 8 lbs. $199.00* EA
Item #3822-51-36
3822-51-36
Item #3822-51-36 		Ground Bar; Copper; 1/4" x 4" x 36"; (99) 7/16" punched lug holes; Includes (2) standoffs & (2) insulators 11.50 lbs. $279.00* EA
Item #3822-51-48
3822-51-48
Item #3822-51-48 		Ground Bar; Copper; 1/4" x 4" x 48"; (129) 7/16" punched lug holes; (3) 7/16" mount holes; Includes 3875-9 insulator mount kit 15.50 lbs. $373.00* EA
Item #3822-51-60
3822-51-60
Item #3822-51-60 		Ground Bar; Copper; 1/4" x 4" x 60"; (159) 7/16" punched lug holes; Includes (3) standoffs & (3) Insulators 18.90 lbs. $453.00* EA
Item #3822-51-72
3822-51-72
Item #3822-51-72 		Ground Bar; Copper; 1/4" x 4" x 72"; (204) 7/16" punched lug holes; Includes (3) standoffs & (3) Insulators 22.30 lbs. $538.00* EA
Item #7000-3822-5-10
7000-3822-5-10
Item #7000-3822-5-10 		Ground Bar Only; Copper; 1/4" x 4" x 10"; (12) 7/16" punched lug holes; Insulators & standoffs sold separately 3.10 lbs. $75.00* EA
Item #7000-3822-5-12
7000-3822-5-12
Item #7000-3822-5-12 		Ground Bar Only; Copper; 1/4" x 4" x 12"; (15) 7/16" punched lug holes; Insulators & standoffs sold separately. 3.70 lbs. $89.00* EA
Item #7000-3822-5-16
7000-3822-5-16
Item #7000-3822-5-16 		Ground Bar Only; Copper; 1/4" x 4" x 16"; (21) 7/16" punched lug holes; Insulators & standoffs sold separately 4.90 lbs. $116.00* EA
Item #7000-3822-5-18
7000-3822-5-18
Item #7000-3822-5-18 		Ground Bar Only; Copper; 1/4" x 4" x 18"; (24) 7/16" punched lug holes; Insulators & standoff sold separately 5.50 lbs. $127.50* EA
Item #7000-3822-5-20
7000-3822-5-20
Item #7000-3822-5-20 		Ground Bar Only; Copper; 1/4" x 4" x 20"; (27) 7/16" punched lug holes; Insulators & standoffs sold separately 5.98 lbs. $140.00* EA
Item #7000-3822-5-24
7000-3822-5-24
Item #7000-3822-5-24 		Ground Bar Only; Copper; 1/4" x 4" x 24"; (33) 7/16" punched lug holes; Insulators & standoffs sold separately 7.20 lbs. $166.00* EA
Item #7000-3822-5-30
7000-3822-5-30
Item #7000-3822-5-30
Ground Bar Only; Copper; 1/4" x 4" x 30"; (44) 7/16" holes at 3/4", 1", & 1-3/4" spacing on 2" centers; (2) 7/16" mounting holes; Insulators & standof... (see more)
 9.30 lbs. $206.00* EA
Item #7000-3822-5-72
7000-3822-5-72
Item #7000-3822-5-72 		Ground Bar Only; Copper; 1/4" x 4" x 72"; (102) 7/16" punched lug holes; Insulators & standoffs sold separately 22 lbs. $480.00* EA
Item #7000-3822-5-36
7000-3822-5-36
Item #7000-3822-5-36 		Ground Bar Only; Copper; 1/4" x 4" x 36"; (51) 7/16" punched lug holes; Insulators & standoffs sold separately 10.90 lbs. $244.00* EA
Item #7000-3822-5-48
7000-3822-5-48
Item #7000-3822-5-48 		Ground Bar Only; Copper; 1/4" x 4" x 48"; (66) 7/16" punched lug holes; (3) 7/16" mounting holes; Insulators & standoffs sold separately 14.60 lbs. $322.00* EA
Item #7000-3822-5-60
7000-3822-5-60
Item #7000-3822-5-60 		Ground Bar Only; Copper; 1/4" x 4" x 60"; (84) 7/16" punched lug holes; (3) 7/16" mounting holes; Insulators & standoffs sold separately 18.30 lbs. $400.00* EA
Item #7000-3822-51-12
7000-3822-51-12

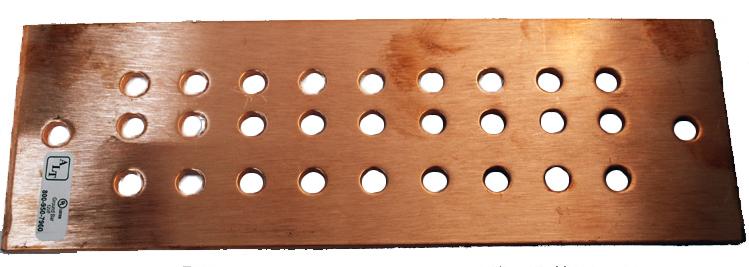

Item #7000-3822-51-12 		Ground Bar; Copper; 1/4" x 4" x 12; (27) 7/16" punched lug holes; Bar Only 3.50 lbs. $92.00* EA
Item #7000-3822-51-18
7000-3822-51-18
Item #7000-3822-51-18 		1/4" x 4" x 18" Copper Ground Bar with (45) 7/16" Punched Lug Holes 5.20 lbs. $131.00* EA
Item #7000-3822-51-20
7000-3822-51-20
Item #7000-3822-51-20 		1/4" x 4" x 20" Copper Ground Bar with (51) 7/16" Punched Lug Holes 5.80 lbs. $144.00* EA
Item #7000-3822-51-24
7000-3822-51-24
Item #7000-3822-51-24 		1/4" x 4" x 24" Copper Ground Bar with (63) 7/16" Punched Lug Holes 6.90 lbs. $170.00* EA
Item #7000-3822-51-36
7000-3822-51-36
Item #7000-3822-51-36 		1/4" x 4" x 36" Copper Ground Bar with (99) 7/16" Punched Lug Holes 10.40 lbs. $250.00* EA
Item #7000-3822-51-48
7000-3822-51-48
Item #7000-3822-51-48 		1/4" x 4" x 48" Copper Ground Bar with (129) 7/16" Punched Lug Holes 13.80 lbs. $330.00* EA
Item #7000-3822-51-60
7000-3822-51-60
Item #7000-3822-51-60 		1/4" x 4" x 60" Copper Ground Bar with (159) 7/16" Punched Lug Holes 17.20 lbs. $410.00* EA
Item #7000-3822-51-72
7000-3822-51-72
Item #7000-3822-51-72 		1/4" x 4" x 72" Copper Ground Bar with (204) 7/16" Punched Lug Holes and (3) 7/16" Mount holes. 20.60 lbs. $495.00* EA
Item #7000-3822-51-84
7000-3822-51-84
Item #7000-3822-51-84 		1/4" x 4" x 84" Copper Ground Bar with (237) 7/16" Punched Lug Holes and (4) 7/16" Mount holes. 24.10 lbs. $575.00* EA

* Pricing subject to change on this item

**Product received may vary from photo
