Product Guide  >  Grounding Materials  >  C-Taps  >  C-Taps - Hytap #6 Solid thru 500 kcmil

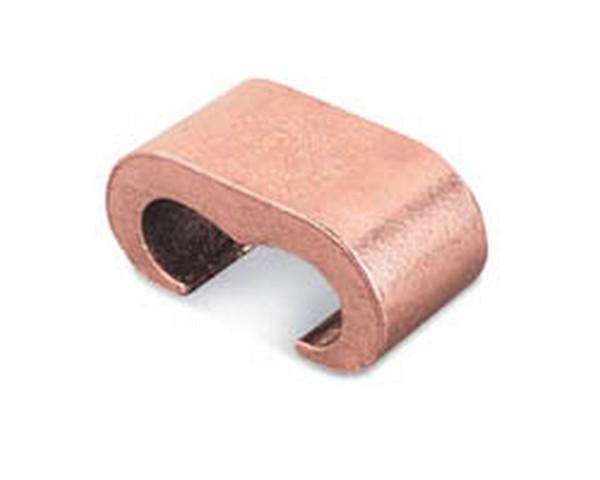

allG offers C-Tap Hytap Connectors that accomodate a variety of cable combinations from #6 solid through 500 kcmil. The 'C' - shaped opening permits placing two continuous parallel cables into the conductor groove.

See Also

Image Item Description Weight Price Unit Qty

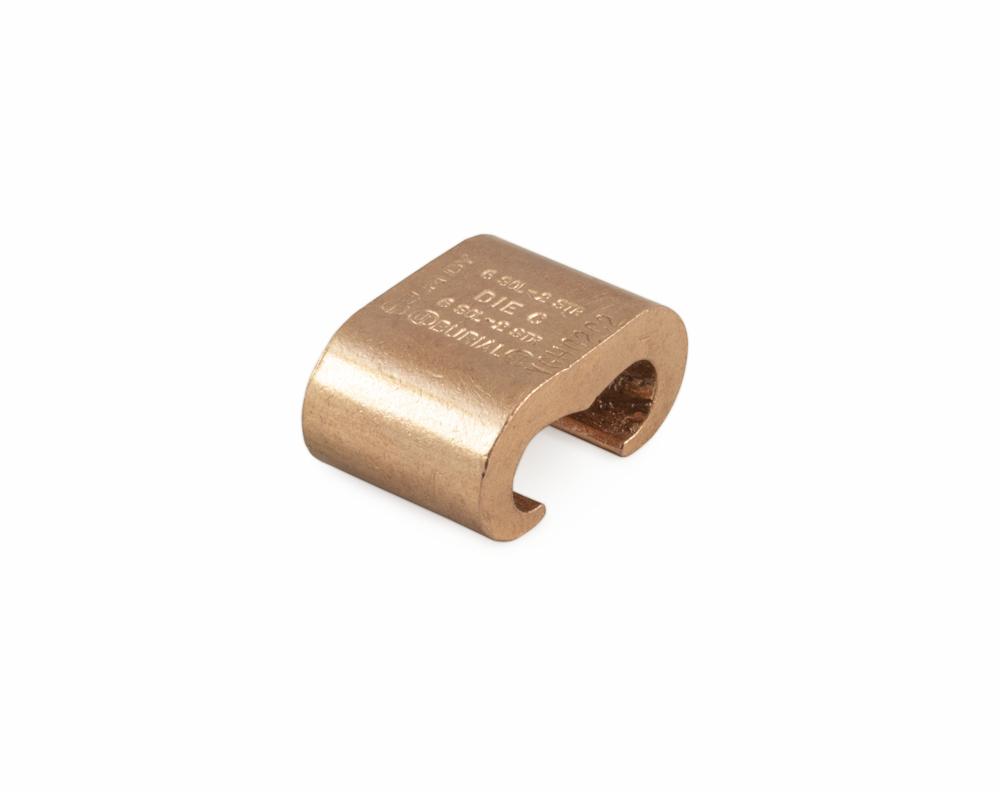

Item #1571-6
1571-6
Item #1571-6 		C-Tap; Copper; Heavy duty; #6 solid thru #2 stranded to #6 solid thru #2 stranded; Utilizes hydraulic crimp tool 0.08 lbs. $10.30* EA

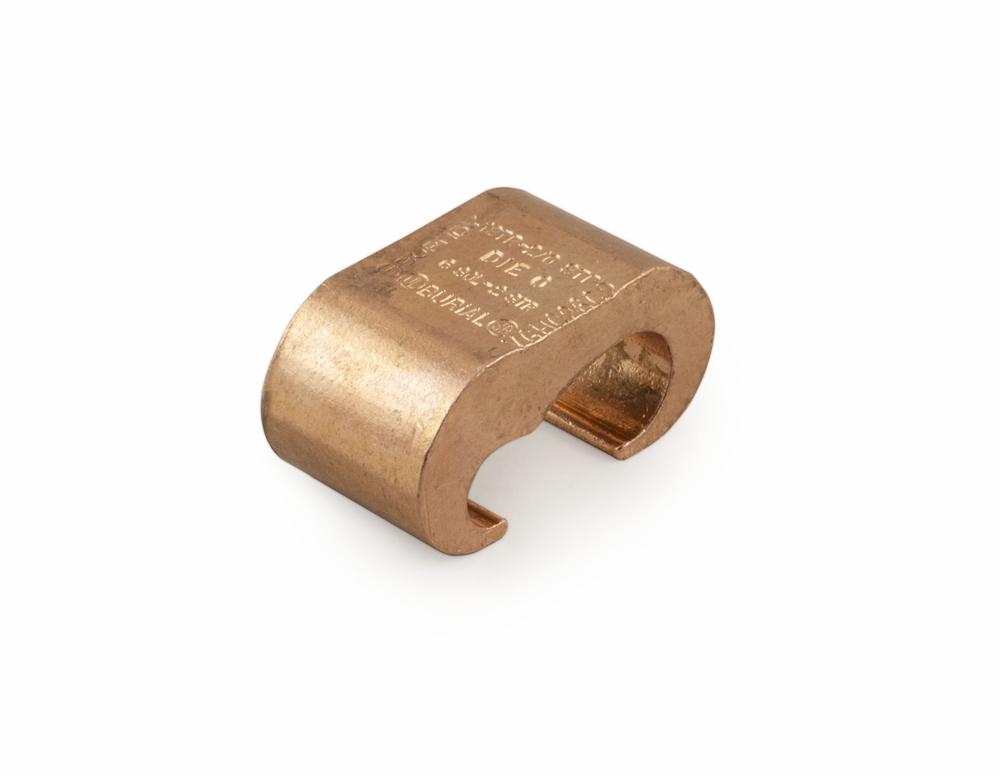

Item #1571-17
1571-17
Item #1571-17 		C-Tap; Copper; Heavy duty; #1 stranded thru 2/0 stranded or 3/8" rod to #7 stranded thru #2 stranded; Utilizes hydraulic crimp tool 0.35 lbs. $21.40* EA

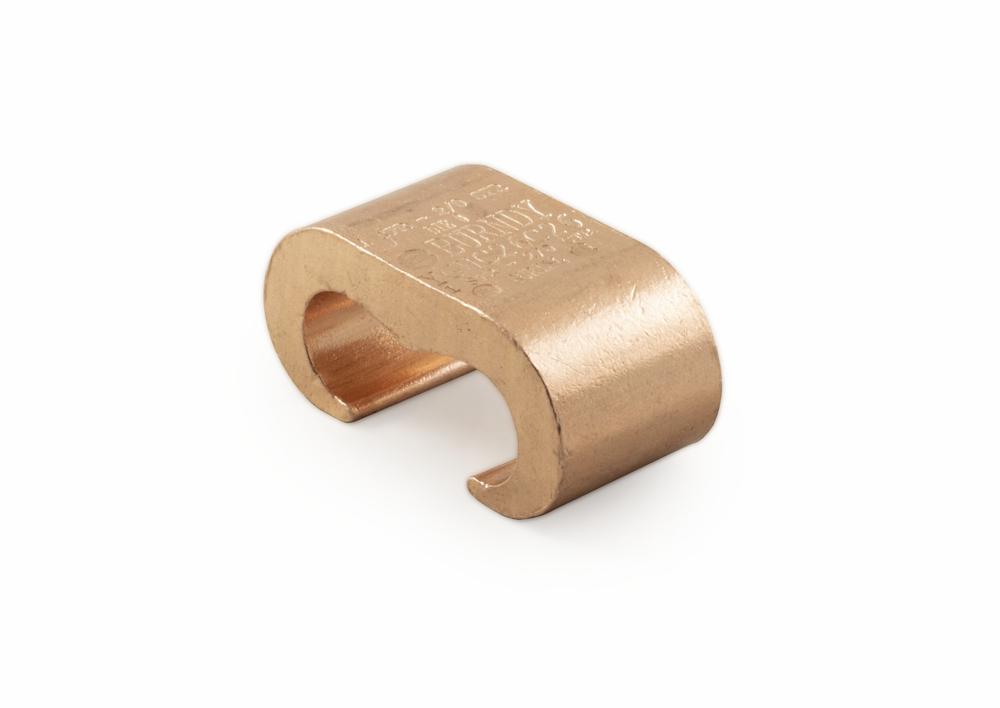

Item #1571-10
1571-10
Item #1571-10 		C-Tap; Copper; Heavy duty; #1 stranded thru 2/0 stranded to #1 stranded thru 2/0 stranded; Utilizes hydraulic crimp tool 0.09 lbs. $20.25* EA
Item #1571-19
1571-19
Item #1571-19 		C-Tap; Copper; 300 MCM thru 500 MCM or 3/4" rod to #6 solid thru 2/0 stranded; Utilizes hydraulic crimp tool 0.37 lbs. $46.25* EA
Item #1571-300-500
1571-300-500
Item #1571-300-500 		C-Tap; Copper; Heavy duty; 300 MCM thru 500 MCM to 300 MCM thru 500 MCM; Utilizes hydraulic crimp tool 0 lbs. $58.25* EA

* Pricing subject to change on this item

**Product received may vary from photo
